Architectural Tubular Lighting Systems
Built for Architecture. Engineered for Projects
A Manufacturing Partner for Architectural Lighting Projects
Built on experience, precision and long-term reliability
We specialize in the design and manufacture of architectural tubular lighting systems for commercial, hospitality, residential and public projects worldwide.
From material selection and optical control to mechanical detailing and compliance requirements, our solutions are engineered to meet the real demands of architectural applications.
With in-house engineering, flexible customization capabilities and proven manufacturing processes, we support architects, lighting designers and project teams throughout the entire project lifecycle, from concept development to long-term operation.
Durable, customizable, and project-ready architectural tubular luminaires
Architectural Tubular Lighting Collections
Explore our range of architectural tubular luminaires, each developed to address different spatial, optical, and design requirements.
Vinci 360
Ø70 & Ø100 tubular luminaire delivering uniform 360° illumination, with customizable finishes and patterned metal inserts available in multiple designs.
Moreau
Architectural tubular luminaire with full or partial patterned metal casing, available in Ø70 and Ø100, with custom pattern options on request.
Corbusier
Precision-engineered Ø70 & Ø100 tubular fixture featuring aluminum louver for controlled, low-glare, directional lighting.
Matisse
Expressive tubular lighting series with playful macaron-colored louvers, offered in Ø45, Ø70 & Ø100.
Arno
Ø70 & Ø100 architectural tubular luminaire featuring honeycomb or grille glare control optics, available in single-sided or double-sided emission.
Rosa
Precision-formed longitudinal aluminum louver tubular fixture in Ø70 & Ø100, offered in soft blush metallic finishes.
Opaline Spectrum
Clear tubular luminaire available in Ø45, Ø70 & Ø100, supporting single or dual-emission and multiple colors.
Steelis Core
Industrial-grade stainless-steel tubular light in Ø45, Ø70 & Ø100, built for long-term architectural and commercial use.
Aurelia
Ø70 & Ø100 architectural tubular light featuring metal grille for controlled, directional illumination.
Verona
Ø70 & Ø100 tubular luminaire with honeycomb louvre for low-glare, comfortable architectural lighting.
Titan
Ø70 & Ø100 tubular lighting series with honeycomb louvre and flexible mounting bracket options.
Aero
Ø70 / Ø100 architectural wall light featuring rotatable aluminum louvers for precise beam control.
Perfo 360
Ø70 / Ø100 tubular luminaire with a full perforated stainless steel insert, delivering smooth, uniform 360-degree illumination with a refined industrial aesthetic.
Vector
Ø70 / Ø100 tubular fixture with designed grille, available in single-sided or dual-sided emission for controlled, low-glare professional lighting.
Hive
Ø70 / Ø100 tubular fixture with designed honeycomb, available in single-sided or dual-sided emission for controlled, low-glare professional lighting.
Crystal
Ø70 / Ø100 high-finish silver tubular light with grille or honeycomb, balancing decorative transparency with precise beam shaping.
Spotline
Architectural tubular luminaire in Ø45 mm and Ø70 mm, featuring anti-glare micro-reflector cup optics for precise, comfortable, directional illumination.
Axis Desk
Modular tubular desk lamp with a compact steel base, compatible with any MANI tubular fixture (Ø45/70/100).
Tripod Beam
A sculptural tripod floor lamp featuring a replaceable tubular light, available in multiple grille, honeycomb, and diffuser styles.
Halo Tripod
Architectural floor lamp featuring a sculptural tripod frame, supporting interchangeable tubular luminaires.
Flow Stand
Slim vertical floor-lighting system with a curved structural stem, accepting all tubular models.
Linea Task
Minimalist task and reading floor lamp featuring interchangeable MANI tubular fixtures.
Frame Tower
Geometric floor lamp with an open trapezoidal iron frame, designed to showcase customizable tubular lights.
Lighting should integrate seamlessly into architecture, not be compromised by it.
Our tubular luminaires deliver creative freedom and engineering reliability, enabling designers, architects, and project owners to shape light, ambiance, and spatial identity with precision.
WHY ARCHITECTURAL TUBULARS
Architectural tubular lighting is widely used in commercial, hospitality, retail, and workplace environments where clean geometry, visual comfort, glare management, finish quality, and integration into architectural language are required:
Minimalist geometry suitable for diverse architectural languages
Works as lighting + visual statement + spatial rhythm
360°, single-sided & double-sided emission options
Perfect for long corridors, narrow spaces, feature walls
Visually light yet structurally robust
Highly adaptable to project constraints and layouts
Ideal for modern, industrial, and hybrid interior concepts
About MANI Architectural Tubular Systems
Unlike traditional industrial or tri-proof luminaires, MANI architectural tubular systems were developed for architecture from day one.
They provide:
Refined optical performance and enhanced visual comfort
Strong modularity and design flexibility
Customization aligned with architectural intent
Suitability for commercial, hospitality, retail, workplace, and residential spaces
Each system is engineered to support the full project lifecycle—from design development and specification to installation and long-term operation.
Modular Customization for
Architectural Projects
Mechanical & Structural Configuration
Diameters: Ø45 / Ø70 / Ø100 mm
Standard lengths: 300 / 600 / 900 / 1200/ 1500 mm (custom lengths available upon request)
End-cap options: flat and rounded profiles, in powder-coated, metallic and CNC-machined knurled finishes.
Integrated mounting systems: suspended, surface-mounted, wall-mounted, daisy-chain wiring
Multiple mounting bracket designs available for different installation scenarios
Optical & Electrical Configuration
Emission configurations: single-sided, double-sided, 360°
Optical architectures: louver, honeycomb, geometric lattice, decorative grille, patterned perforated, transparent, opal
CCT options: 2200K–6500K, tunable white, RGB
Control & dimming: DALI, 0–10V, Triac
Optional functions: emergency lighting, microwave motion sensor
Beam shaping solutions available based on project requirements
Optional logo or branding engraving for architectural or commercial projects

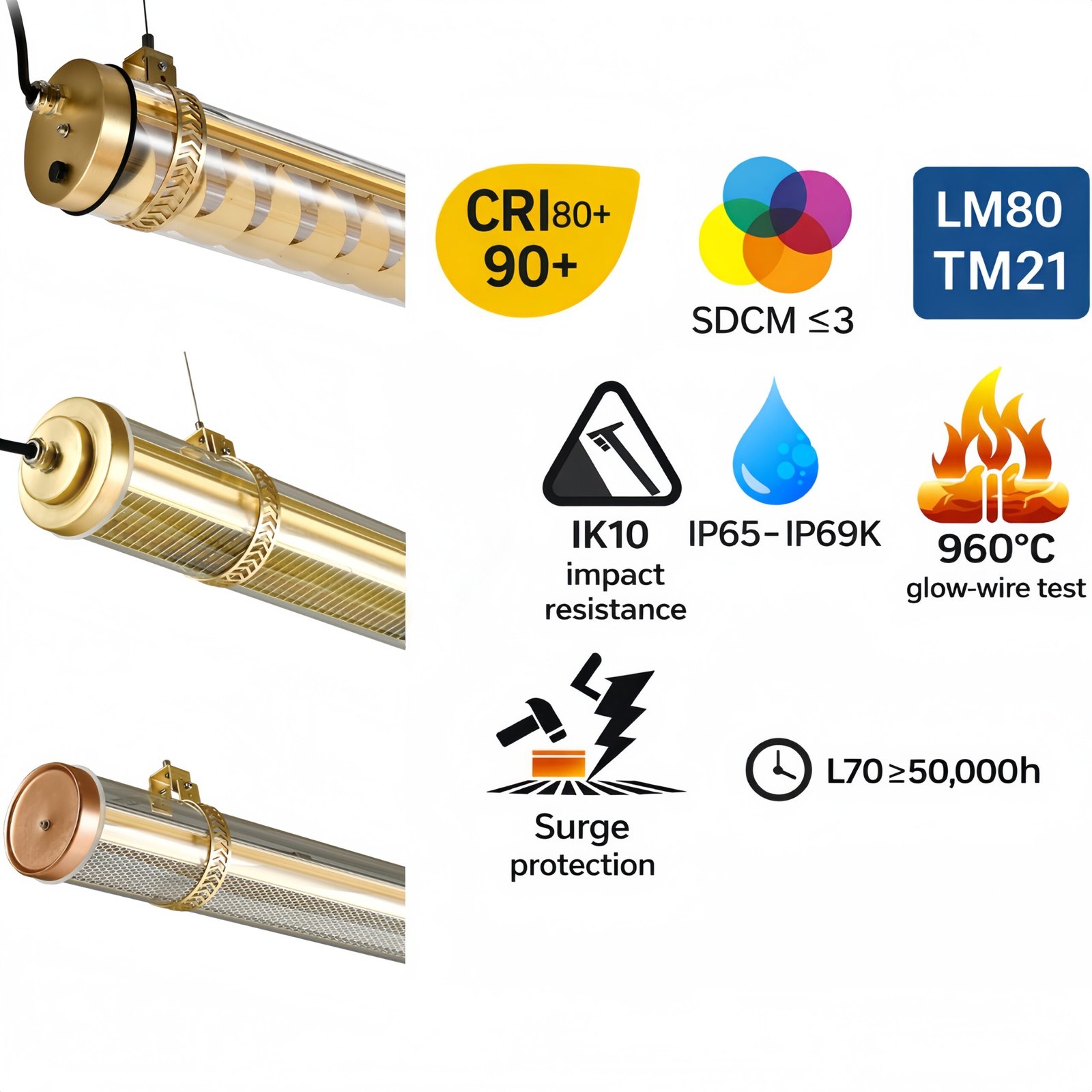

Optical Performance & Reliability
MANI architectural tubular luminaires are developed to meet demanding project requirements:
CRI 80+ (90+ optional) with strong R9 color rendering
SDCM ≤ 3 for consistent color appearance across batches
LM80 / TM21 tested LED modules
Ingress protection options: IP65 to IP69K
IK10 impact resistance for demanding environments
960°C glow-wire test capability
Surge protection options available
Serviceable internal modules designed for long-term maintenance
Designed lifespan exceeding 50,000 hours
Global Projects
MANI architectural tubular luminaires have been specified and supplied for a wide range of architectural projects.
Our team works closely with architects, lighting designers, and project contractors from early concept development through specification, prototyping, and final delivery.
MANI architectural tubular lighting systems are widely applied in:
Retail & luxury boutiques
Restaurants, hotels, lounges & bars
Office, workplace & coworking spaces
High-end residential developments
Museums, galleries & cultural institutions
Airports, metro stations & transit hubs
Schools, universities & public buildings
Showrooms, exhibitions & brand experiences
Project Support for Architects & Designers
We provide comprehensive technical and project support, including:
Lighting calculations and layout assistance
IES, LDT, and DWG files
Technical drawings and specifications
Product schedules and BOM optimization
Sample evaluation prior to rollout
Fast prototyping for design approval
Global project shipping support

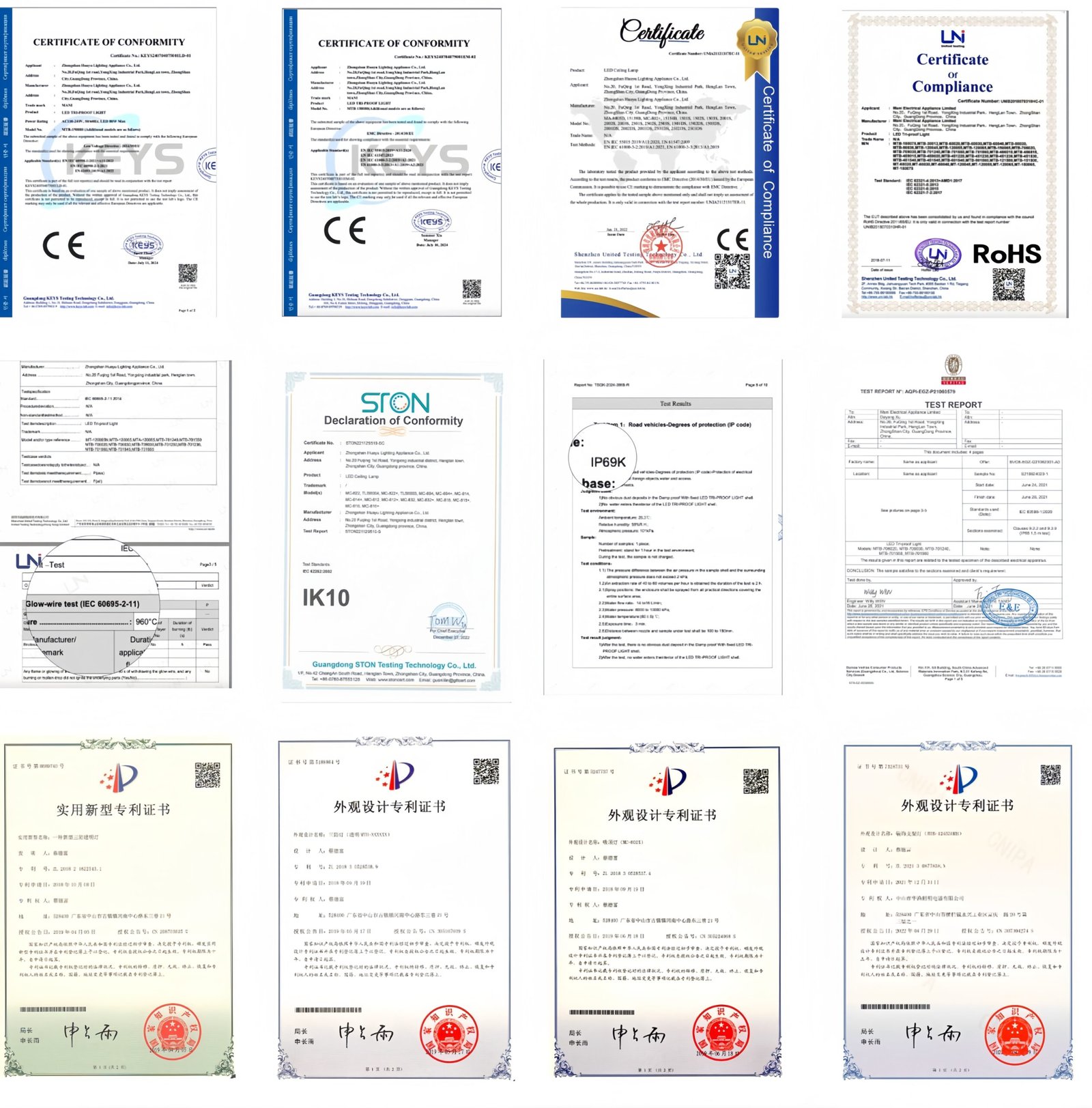

Certifications & Test Reports & Patents
Certified to global standards, with full test reports and patented technologies.
Full test reports and compliance documentation are available to support project approval and tender requirements.
Frequently Asked Questions – Architectural Tubular Lighting
Yes.
Our architectural tubular lighting systems are designed specifically for project specification and are suitable for inclusion in lighting schedules, tender documents, and architectural specifications.
Complete technical documentation, photometric files, and drawings are available to support professional workflows.
Yes.
IES and LDT photometric files are available for our architectural tubular luminaires, enabling accurate lighting calculations and simulations during the design and planning stages.
No MOQ
Yes.
We support sample production and rapid prototyping for design validation, mock-ups, and client approval prior to full project rollout.
We use controlled binning, SDCM ≤ 3 color management, and standardized LED modules to ensure consistent color appearance across batches, even for phased project deliveries.
Our architectural tubular systems support customization across dimensions, optics, finishes, mounting methods, control protocols, and branding, allowing alignment with architectural intent and project constraints.
Yes.
Depending on configuration, our architectural tubular luminaires are available with protection ratings from IP65 up to IP69K and IK10 impact resistance, making them suitable for both indoor and selected outdoor architectural applications.
Lead time depends on configuration complexity and project scale.
For most architectural projects, customized tubular luminaires can be delivered within standard project timelines, with phased delivery options available when required.
Yes.
Our architectural tubular lighting systems support DALI, 0–10V, and other control protocols, enabling integration with building management and lighting control systems.
Our systems are designed with serviceability in mind, allowing internal modules to be maintained or replaced where required to support long-term operation.
Yes.
Logo engraving or discreet branding options can be incorporated upon request, particularly for hospitality, retail, or branded architectural environments.
