Aero

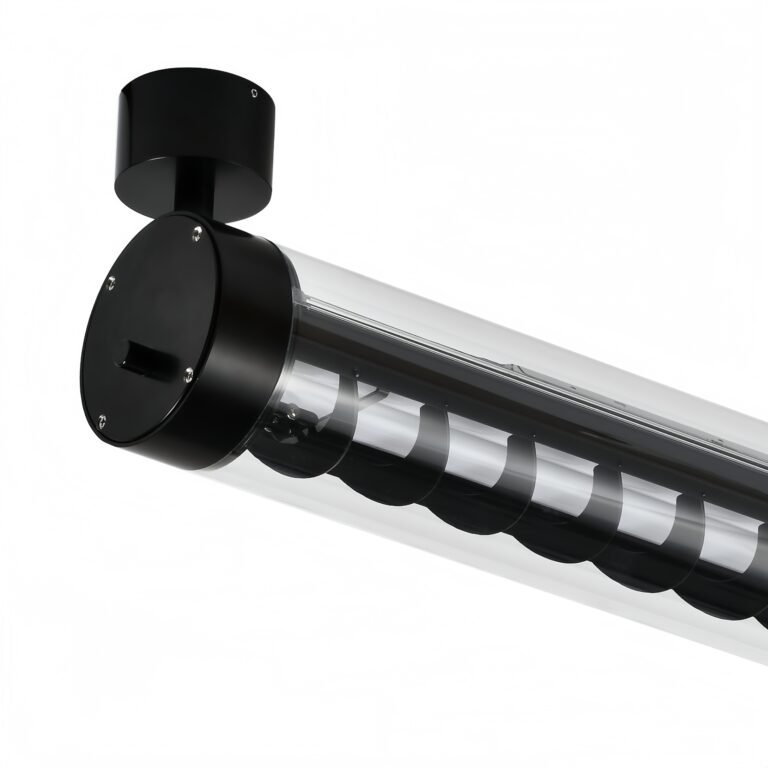

Adjustable Architectural Tubular Wall Light
Key Features
Adjustable aluminum louvers — A built-in rotary knob allows the aluminum blades to be manually adjusted, enabling precise control of the light output angle and glare reduction.
Direct wall-mount structure — Designed with an integrated wall-mounting component, AREO can be installed directly onto the wall, eliminating the need for mounting brackets and ensuring a clean, minimal appearance.
Directional light emission — standard single-sided light output, with optional double-sided emission available for specific project requirements.
Custom finishes — Standard finishes include black and white. Other colors are available on request to match architectural palettes or project requirements.
Two diameters — Ø70 mm and Ø100 mm.
Custom lengths — configurable from 300 mm up to 1500 mm.
CCT options — fixed 2700K / 3000K /4000K / 5000K / 6000K
CCT tunable versions — tunable white or switchable CCT options available.
Advanced control — ON/OFF, TRIAC, 0–10V, DALI options available.
Microwave motion sensor — optional PIR / microwave detection
Emergency versions — maintained & non-maintained emergency options.
PC tubular housing — high-transparency Covestro (Bayer) polycarbonate, UV-resistant and anti-aging.
High protection — IP67 for demanding or semi-outdoor environments.
Impact-resistant — IK10 structural robustness.
Fire performance — 960 °C glow-wire tested, compliant with IEC safety standards.
5-year system warranty — supporting long-term reliability for projects.
Aero
Architectural tubular luminaire with adjustable louver optics
AREO is an architectural tubular luminaire designed for vertical or horizontal installation in commercial and architectural environments where controlled light distribution and durability are required.
The fixture features an adjustable aluminum louver system operated via a built-in rotary knob, allowing manual adjustment of the light output angle. This enables effective glare control while maintaining precise and consistent light distribution.
AREO is available in single-sided directional emission or double-sided emission, providing flexibility for different installation layouts and functional lighting requirements.
The luminaire is constructed with a high-transparency tubular PC housing and an impact resistance rating of IK10, ensuring mechanical robustness in public and high-traffic areas.
With a sealed construction rated IP67, AREO offers reliable protection against dust and water ingress, making it suitable for both indoor and outdoor applications. Its robust construction and controlled optical system make it a practical solution for projects requiring long-term reliability, controlled glare, and architectural integration.

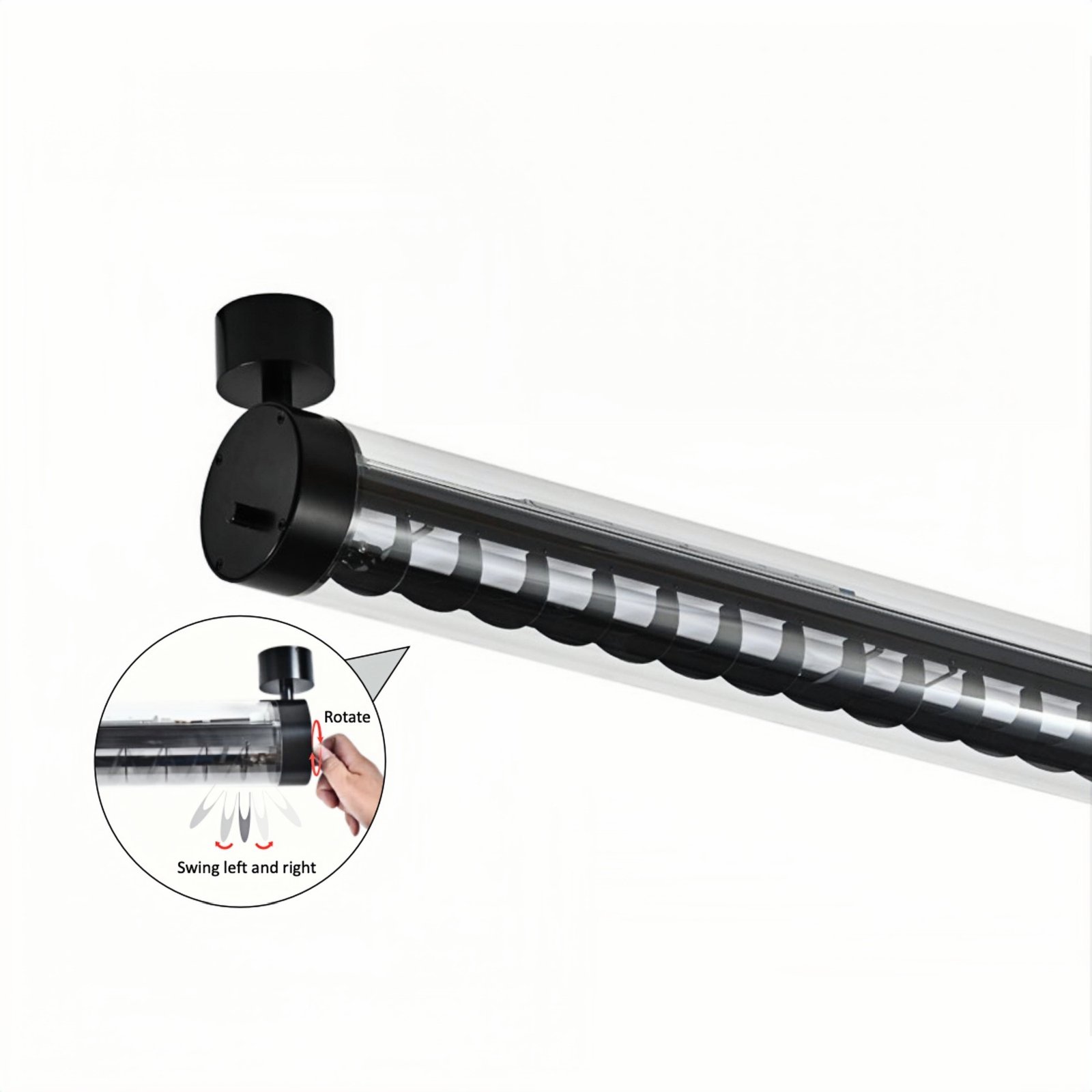

Adjustable aluminum louver system
Integrated aluminum louvers with manual rotary adjustment allow precise control of the light output angle, enabling effective glare reduction and directional lighting on site.

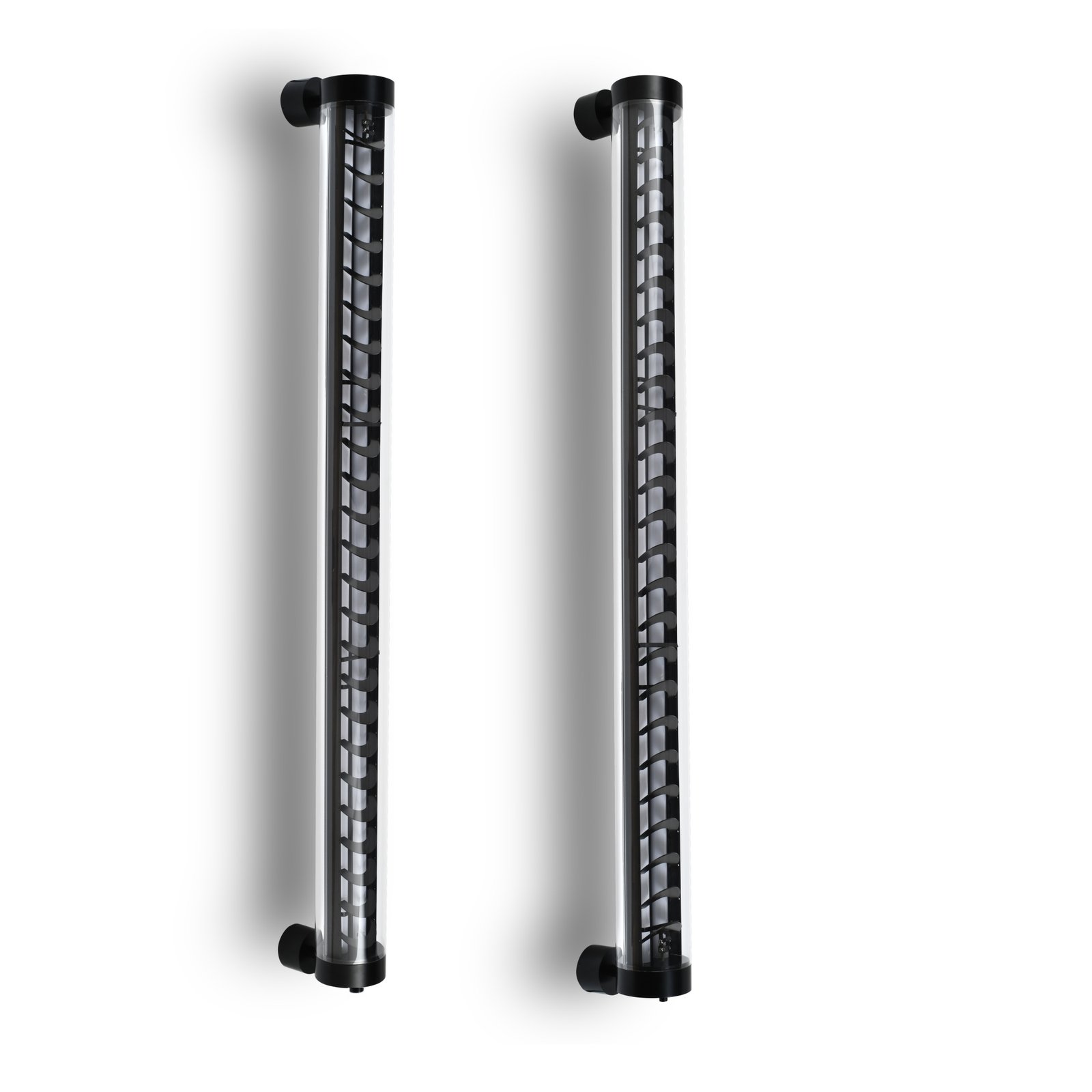

Direct wall mounting design
Integrated wall-mounting structure enables direct installation onto the wall without external clips, ensuring clean installation, reduced components, and long-term mechanical stability.

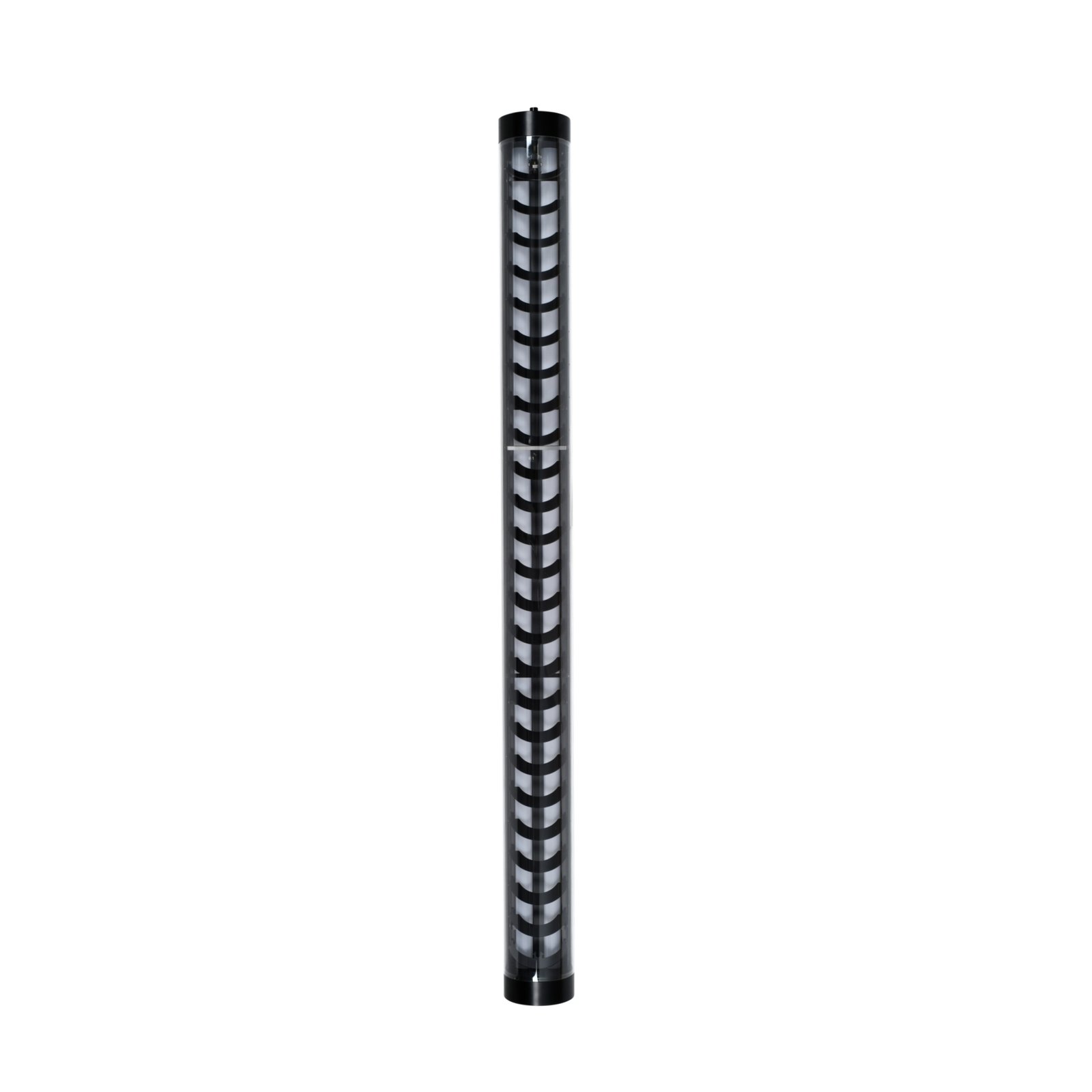

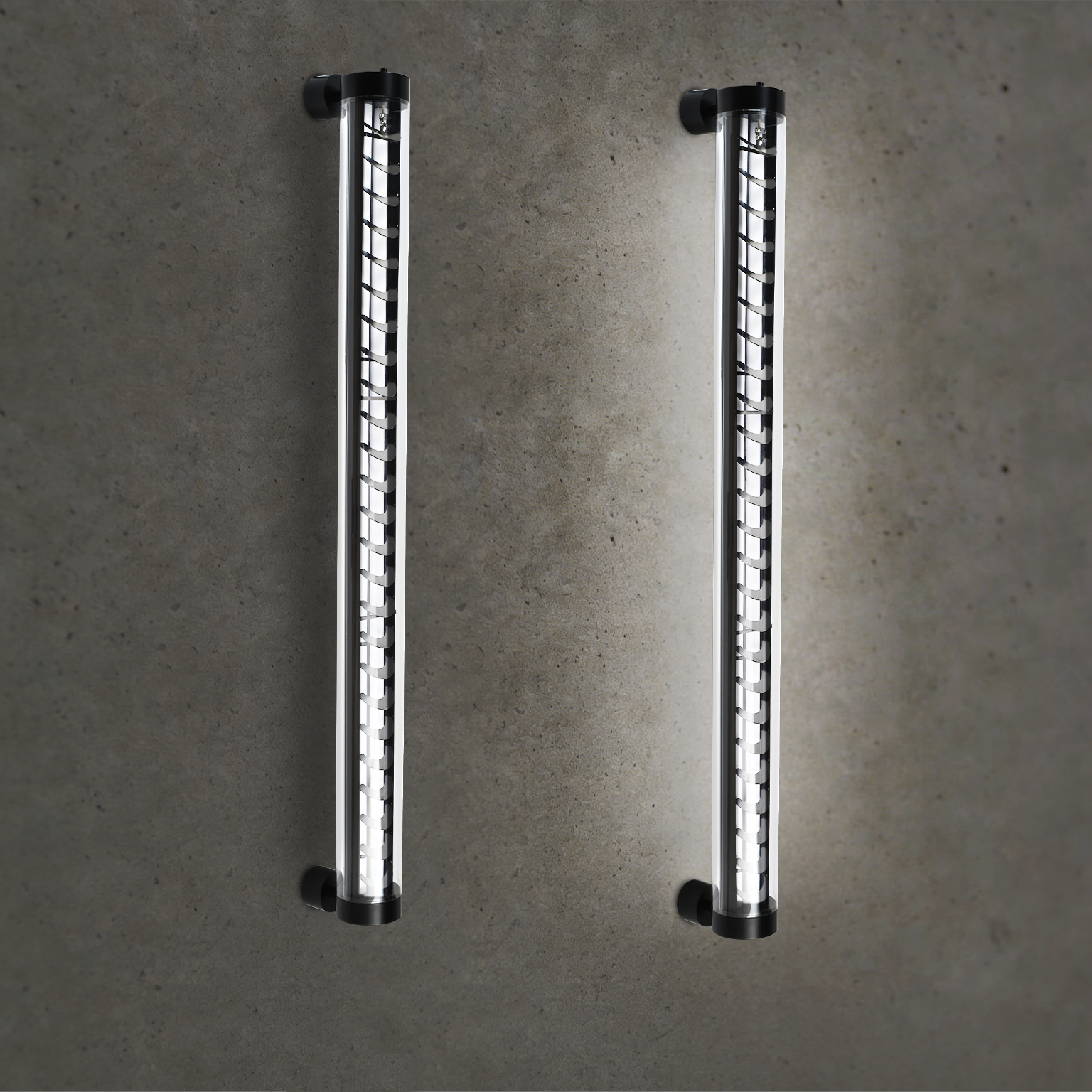

Single-sided or double-sided emission
Available in single-sided emission as standard, with optional double-sided emission to support different installation layouts and balanced light distribution requirements.
Robust sealed construction (IP67 / IK10)
Fully sealed housing rated IP67 for dust and water protection, combined with IK10 impact resistance, suitable for indoor and outdoor applications, including public and high-traffic areas.
TECHNICAL SPECIFICATIONS
Technical characteristics
Light source
LED source: High-efficiency SMD2835 LEDs
CRI: ≥80 (CRI 90 optional)
MacAdam: ≤3 SDCM
Lifetime: 50,000 h (L80/B10 @ 25°C)
____________________________________________________________________________
Optical system
Optical system: Directional lighting controlled by adjustable aluminum louvres
Light distribution: Single-sided emission (standard)
Option: Double-sided emission (on request)
Glare control: Reduced direct view of LED source
____________________________________________________________________________
Electrical
Input voltage: 220–240 V AC (100–277 V AC optional), 50/60 Hz
Power factor: >0.95
Power range: 10–70 W (depending on length and output)
Control options: ON/OFF · TRIAC · 0–10 V · DALI (DT6/DT8 on request)
Options: Sensor version / Emergency version
Electrical class: Class I
____________________________________________________________________________
Color temperature
CCT: 2700K / 3000K / 4000K / 5000K / 6000K
Option: Tunable White (on request)
____________________________________________________________________________
Dimensions
Tube diameter: Ø70 mm / Ø100 mm
Custom lengths available (300–1500 mm)
____________________________________________________________________________
Operating temperature
Operating temperature: −25°C to +45°C
Installation and maintenance
Connection
Sealed cable entry with stainless steel cable gland
Cable range: Ø5–14 mm
Disconnectable terminal block
Up to 3 × 2.5 mm² conductors
____________________________________________________________________________
Mounting
Built-in wall mounting structure
Direct wall installation (no external mounting brackets)

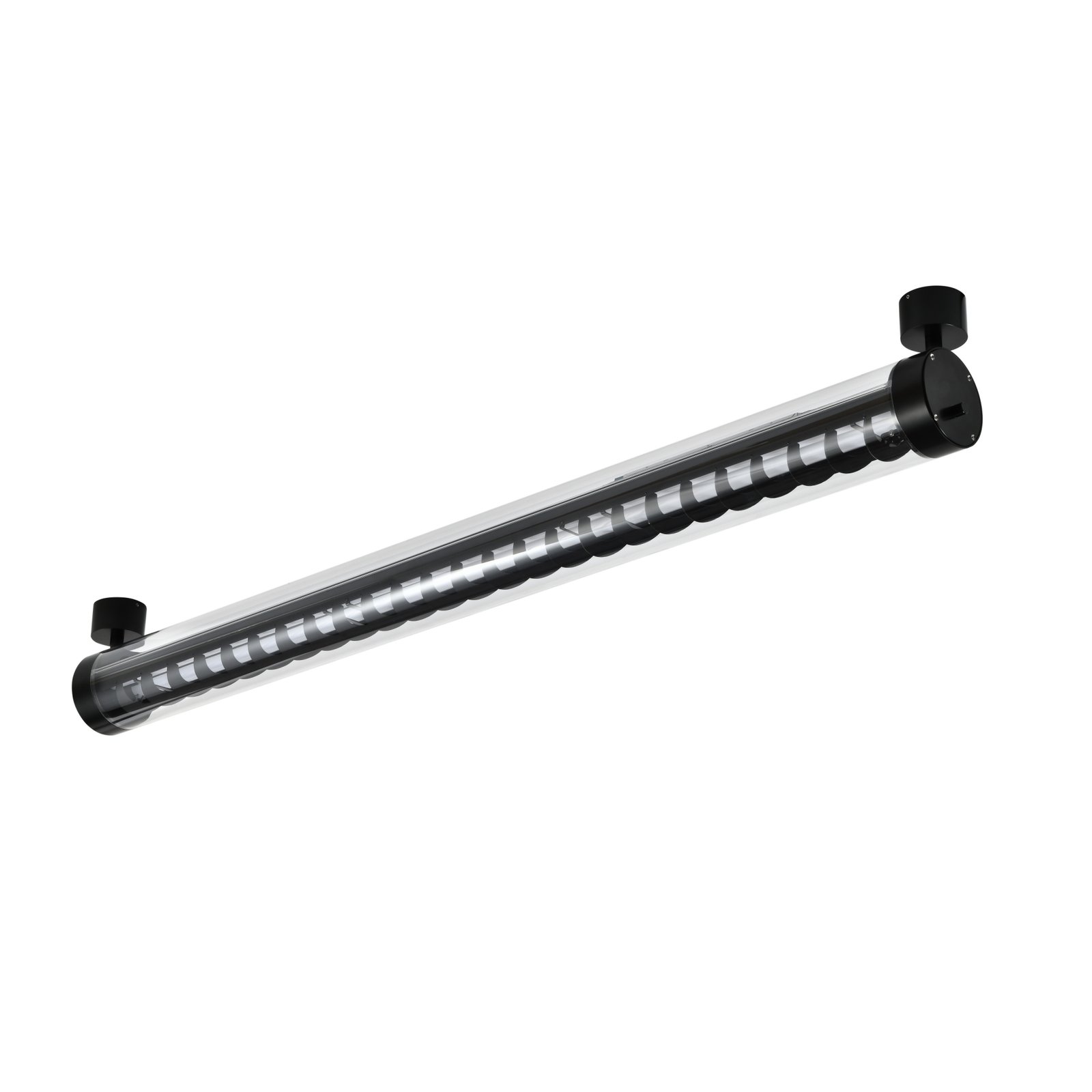

Vertical or horizontal mounting orientation
Materials
Housing
Co-extruded polycarbonate (PC) or PMMA tube
UV-stable, impact-resistant
For indoor and outdoor use
____________________________________________________________________________
Structure
Adjustable aluminum louvre system
Aluminum end caps
Stainless steel fixing components
____________________________________________________________________________
Customization
Custom lengths available on request
Surface finishes: matte textured / smooth gloss
Control options configurable per project (ON/OFF, TRIAC, 0–10 V, DALI; sensor / emergency on request)
Single-sided / double-sided emission options
Standards & protection
Ingress protection
IP67 standard
IP69K optional
____________________________________________________________________________
Impact resistance
IK10 (PC)
IK08 (PMMA)
____________________________________________________________________________
Fire performance
Glow-wire test: 960°C
____________________________________________________________________________
Warranty
5-Year whole fixture
____________________________________________________________________________
Applications
Architectural indoor and outdoor environments

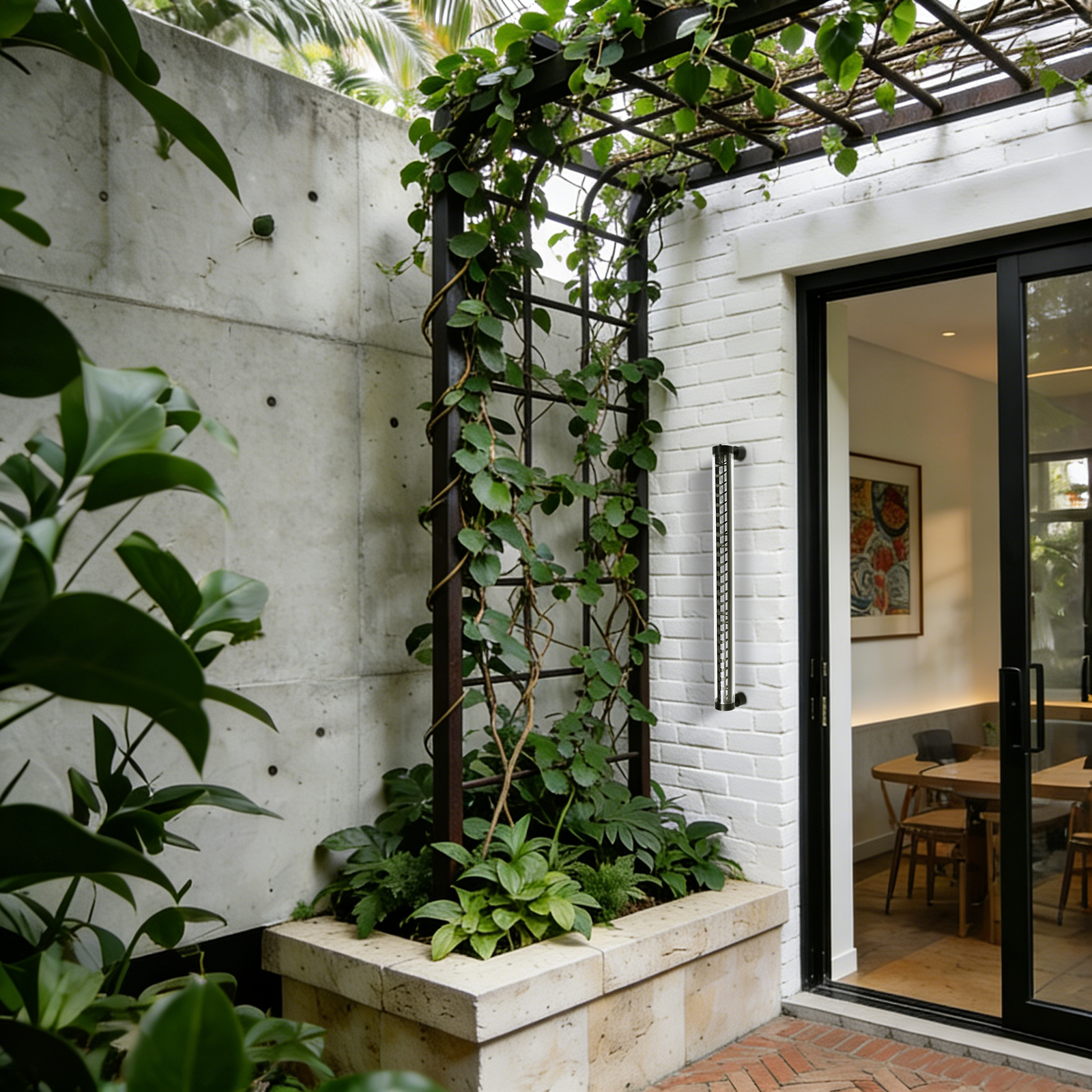

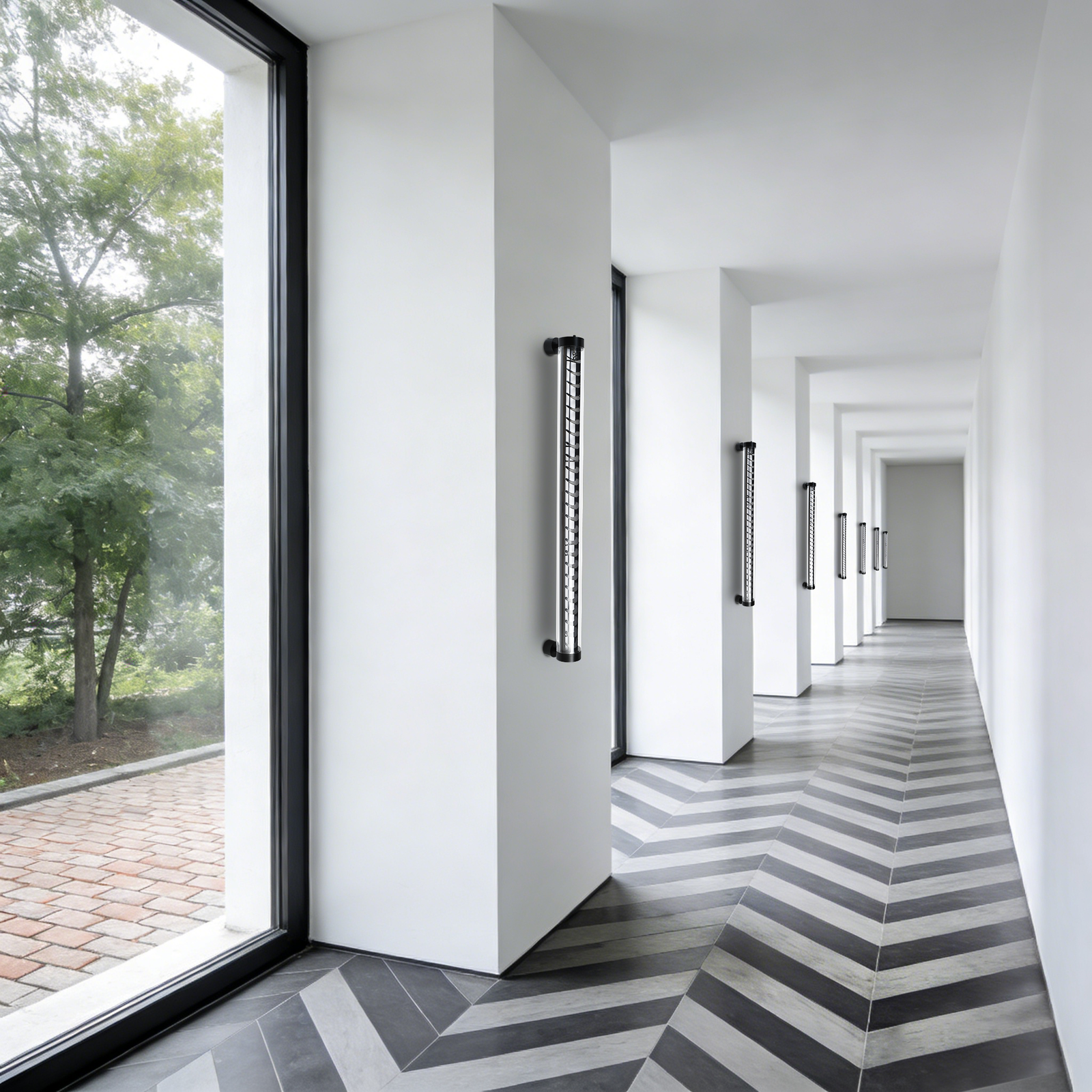

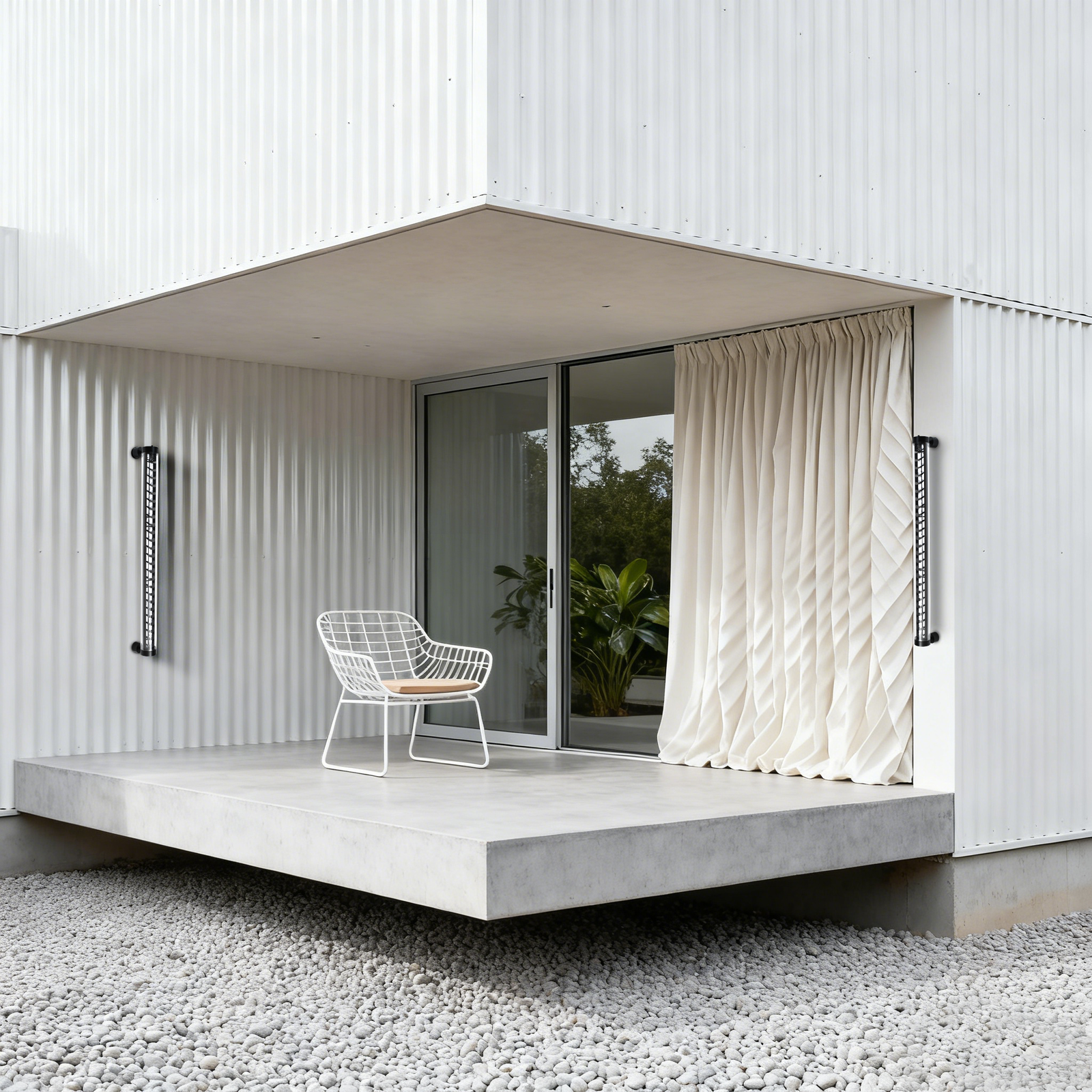

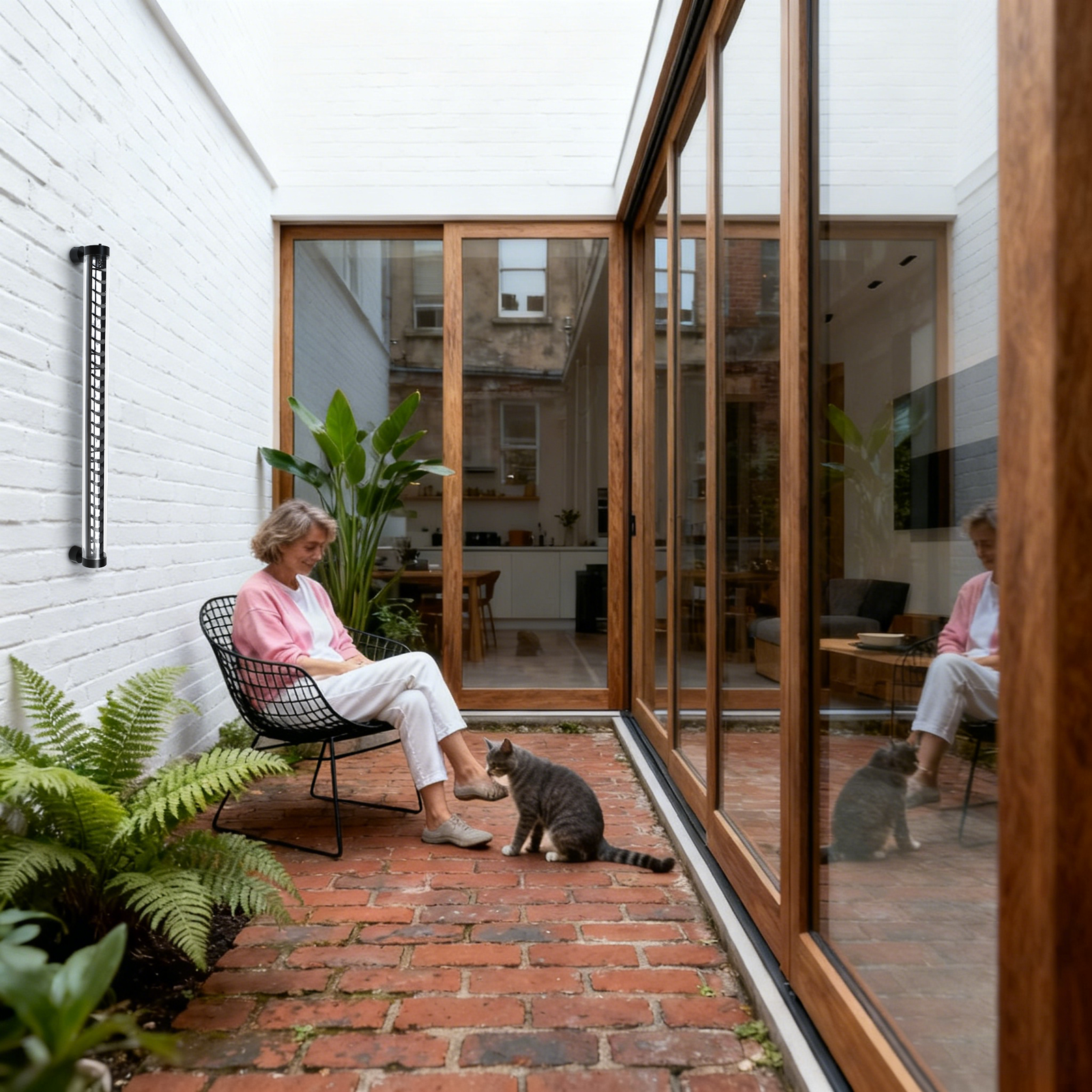

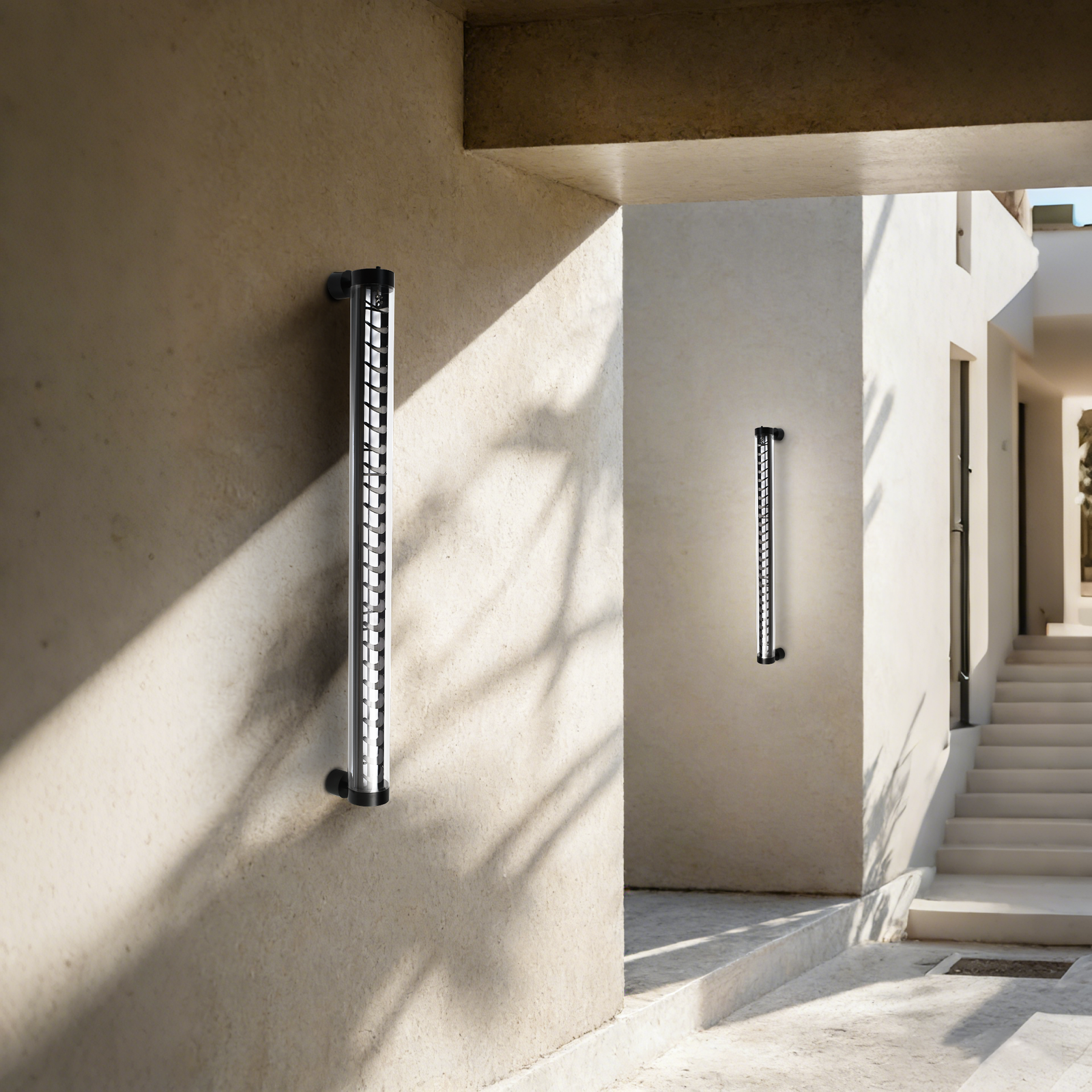

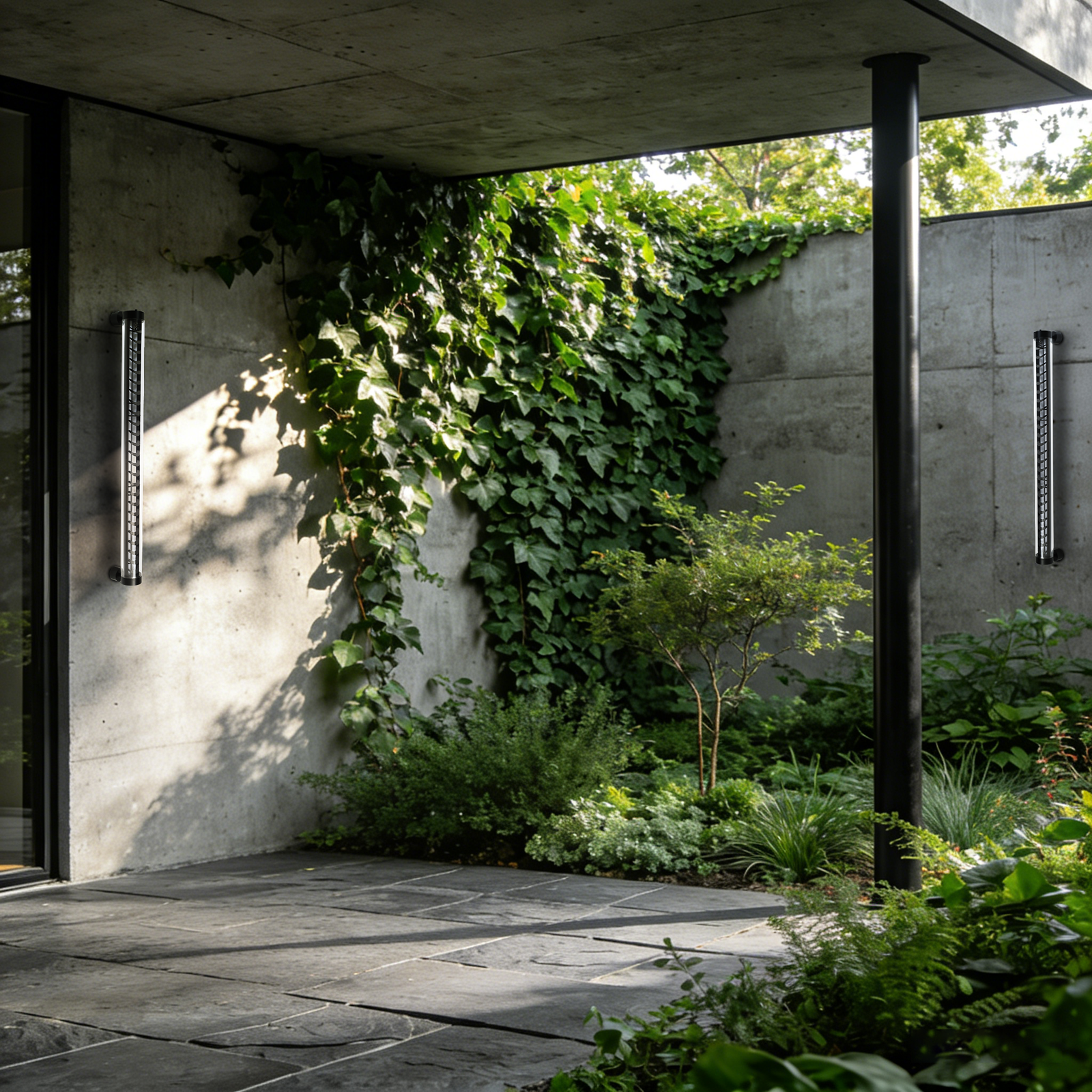

ARCHITECTURAL APPLICATIONS
SUSTAINABILITY STATEMENT
Designed with longevity and responsibility in mind.
AREO is designed with an integrated LED system and a robust industrial-grade structure, ensuring stable performance throughout its service life and reducing the need for frequent replacement.
The combination of adjustable aluminum louver optics, aluminum and stainless steel components, and an impact-resistant tubular housing provides reliable operation in demanding architectural and commercial environments. The luminaire achieves IP67 protection against dust and water ingress and IK10 impact resistance, supporting long-term use in both indoor and outdoor applications.
The integrated LED light source is energy-efficient and environmentally responsible. It contains no mercury, emits no ultraviolet (UV) or infrared (IR) radiation, and is safe for occupants and sensitive architectural spaces.
By prioritizing durability, optical stability, and high protection ratings, AREO minimizes maintenance requirements and reduces the risk of premature replacement.
This approach supports sustainable building strategies by lowering total cost of ownership (TCO) while maintaining consistent lighting performance over time.
