Commercial Tri-Proof Tubular
Key Features
- Diameter: Ø70 mm
- Standard lengths: 600 mm / 900 mm / 1200 mm / 1500 mm
- Mounting options: surface-mounted or suspended
- Clip-free suspension design
- CCT options: 2700K / 3000K / 4000K / 5000K / 6000K
- CCT tunable and switchable versions available
- Control options: ON/OFF, DALI, TRIAC, 0–10V
- System luminous efficacy: 120 lm/W (standard), up to 150 lm/W optional
- Microwave motion sensor option
- Emergency versions available
- UV-resistant PC tubular housing (transparent / opal / half-opal)
- PC end caps
- IP65 ingress protection (indoor & outdoor use)
- IK10 impact resistance
- 960°C glow-wire tested
- 5-year system warranty
- CE, RoHS certified
Description
MANI LED tubular luminaires are designed for commercial and public applications where reliability, efficiency, and long-term performance are essential.
With IP65 ingress protection and IK10 impact resistance, the luminaire is well protected against moisture, dust, and accidental impact. The sealed PC construction supports reliable operation in commercial facilities such as parking garages, logistics and service areas, transportation hubs, retail back-of-house zones, public corridors, and other high-traffic or outdoor environments where durability and consistent lighting performance are required.
The luminaire is available in a Ø70 mm tubular format and supports both surface-mounted and clip-free suspended installation. The suspension version features direct cable suspension without mounting clips, enabling faster installation and a cleaner visual appearance.

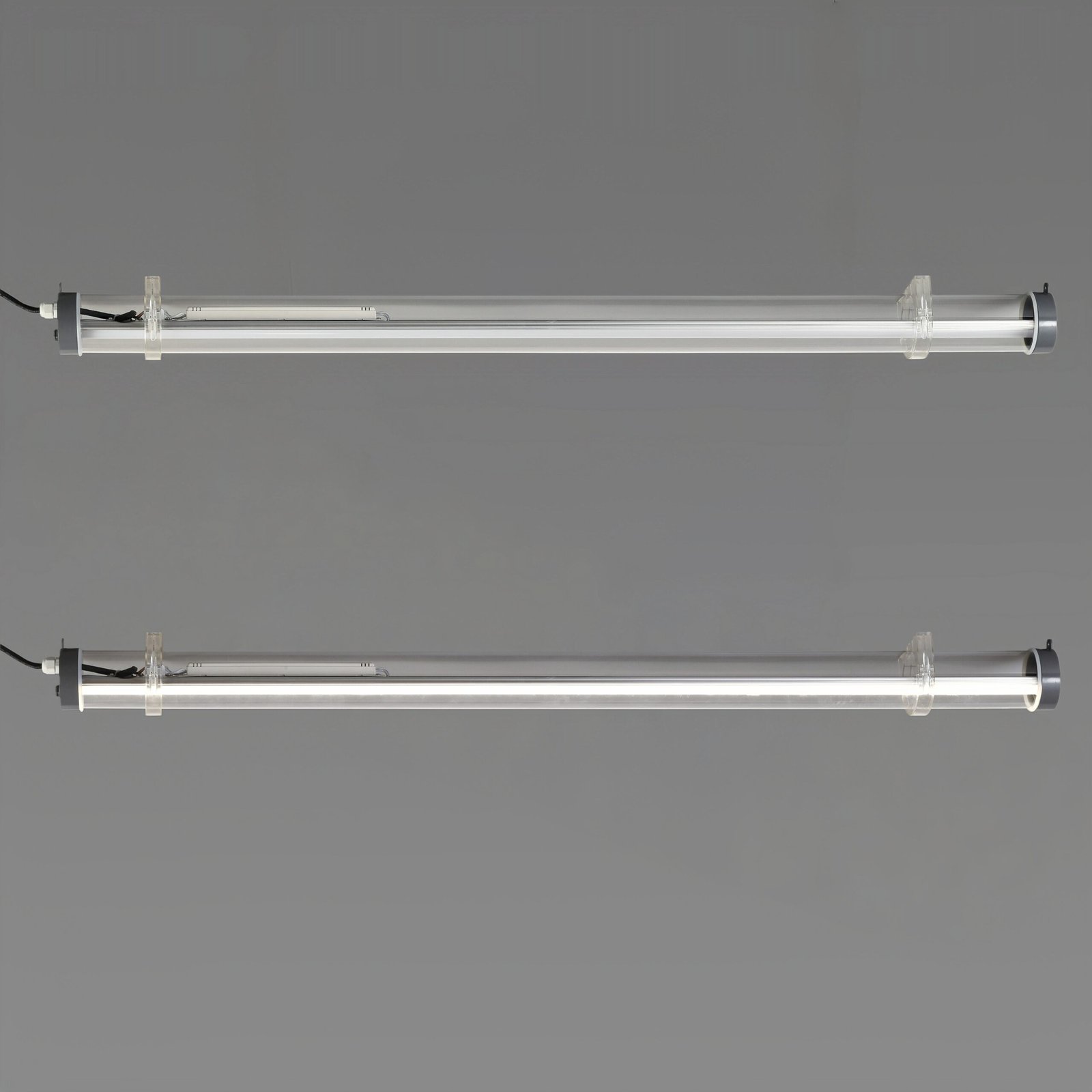

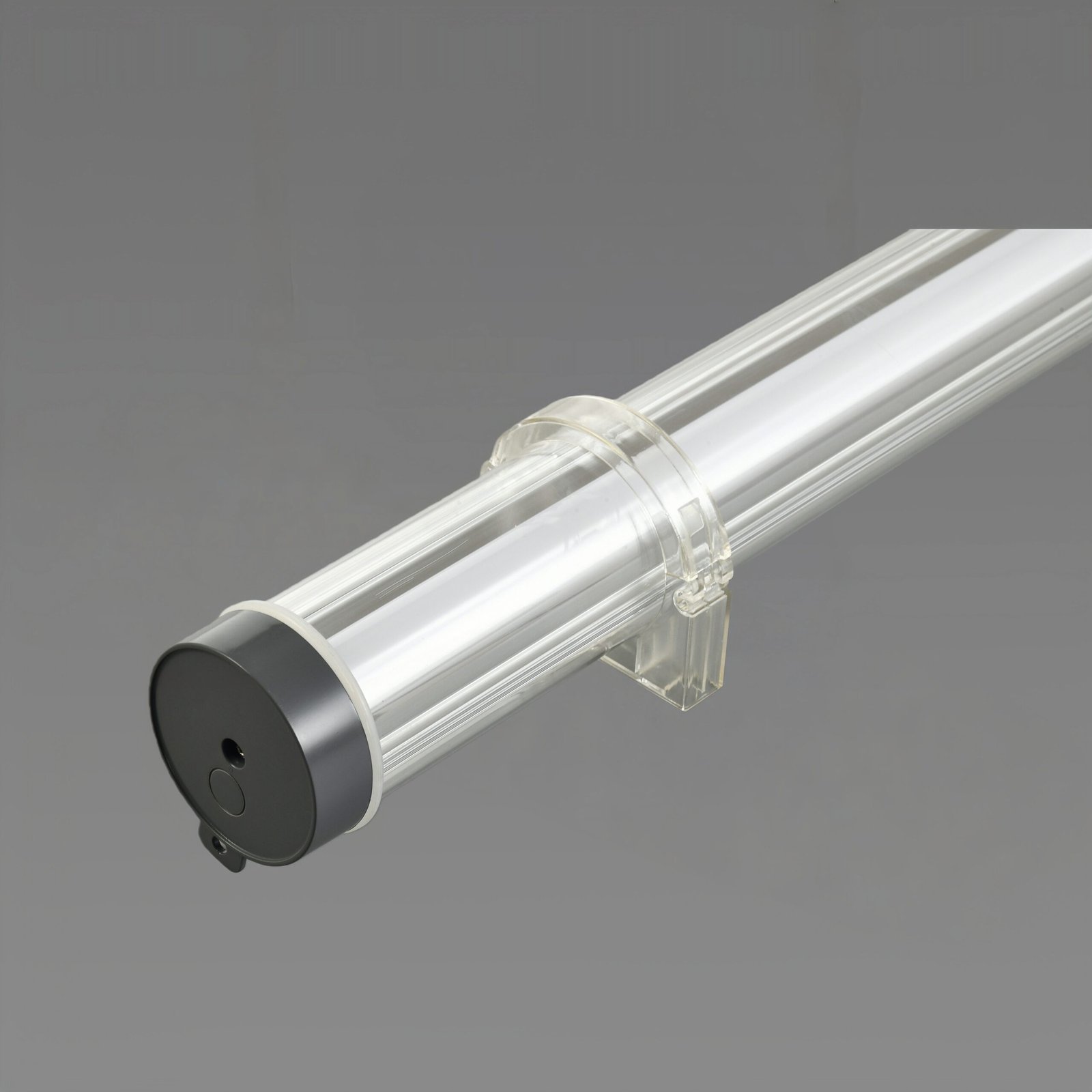

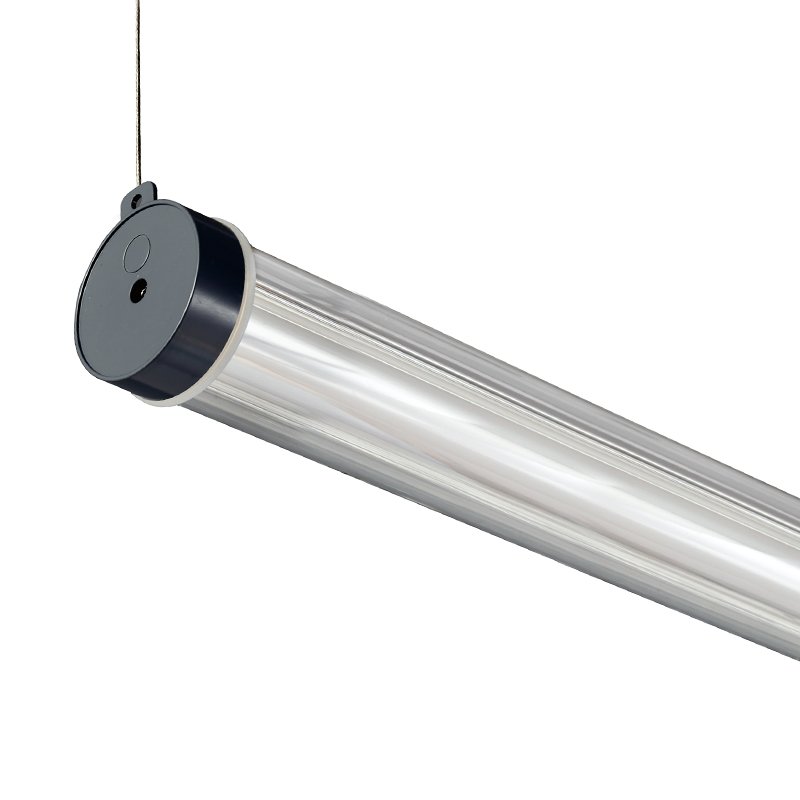

Clip-Free Suspension Design
Suspension cables are fixed directly to the end caps, enabling clip-free suspended installation with reduced components and a clean installation appearance.
Efficient Lighting & Visual Comfort
An integrated internal PC cover provides controlled light diffusion and uniform illumination while protecting the LED module for long-term reliability.
The luminaire delivers a 120° wide beam with UGR < 21, achieving 120 lm/W as standard and up to 150 lm/W optional, with a mercury-free LED source rated at 50,000 h (L80 / B10) for stable long-term performance.
Smart Control & Emergency Options (Optional)
The luminaire can be equipped with an integrated microwave motion sensor for occupancy-based control, reducing energy consumption. Detection area, hold time, and daylight threshold are adjustable to suit different installation conditions.
Emergency versions with a long-life lithium-ion battery are available, providing up to 3 hours of emergency lighting to support safe illumination of evacuation routes and critical areas during power failure.
Suitable Applications
Designed for commercial and public environments, this luminaire is well suited for applications requiring reliable performance, compact installation, and long-term durability, including:
Parking garages and underground car parks
Transportation hubs, including metro and railway stations
Public corridors and circulation areas
Commercial service areas and back-of-house spaces
Technical rooms and utility areas within commercial buildings
Logistics and distribution facilities
Covered outdoor areas and semi-outdoor installations
TECHNICAL SPECIFICATIONS
SUSTAINABILITY STATEMENT
Designed for long-term durability and reliable commercial performance.
MANI commercial tubular luminaires approach sustainability through durability, efficiency, and extended service life, reducing waste, maintenance, and resource consumption over time.
A robust construction and high protection performance help minimize premature replacement and reduce maintenance frequency, supporting long-term use in commercial and public environments.
The energy-efficient, mercury-free LED system operates without UV or IR radiation, ensuring safe operation while lowering energy consumption and environmental impact throughout the product lifecycle.
By focusing on long-term reliability, stable performance, and predictable total cost of ownership, MANI tubular luminaires support more sustainable commercial and public lighting solutions.
