Frame Tower
Architectural Tubular Floor Lamp
Key Features
Trapezoidal freestanding frame structure — Open architectural floor frame with a trapezoidal profile, providing stable support and a strong vertical presence for flexible use in commercial and hospitality spaces.
Interchangeable tubular compatibility — Supports multiple tubular light modules and optical styles.
Directional light emission — standard single-sided light output, with optional double-sided emission.
Control Option — convenient on/off (with optional dimming).
CCT options — fixed 2700K / 3000K /4000K / 5000K / 6000K
CCT tunable versions — tunable white or switchable CCT options available.
Microwave motion sensor — optional microwave detection
Emergency versions — maintained & non-maintained emergency options.
PC tubular housing — high-transparency Covestro (Bayer) polycarbonate, UV-resistant and anti-aging.
High protection — IP67 for indoor or outdoor environments.
Impact-resistant — IK10 structural robustness.
Fire performance — 960 °C glow-wire tested, compliant with IEC safety standards.
5-year system warranty — supporting long-term reliability for projects.
Frame Tower
Modular Floor Lamp with Interchangeable Tubular Lights
Frame Tower is a freestanding modular floor luminaire defined by a trapezoidal architectural frame, supporting interchangeable tubular light elements for flexible placement.
The configurable tubular system allows honeycomb optics for low-glare control or grille optics for varied visual expression, while maintaining a consistent architectural language. Single-sided or optional double-sided emission supports both accent and ambient lighting needs.
With a sealed IP67 construction and IK10 impact resistance, Frame Tower is suitable for indoor and outdoor use across residential, hospitality, and commercial environments, combining modular flexibility, durability, and a strong vertical architectural presence.

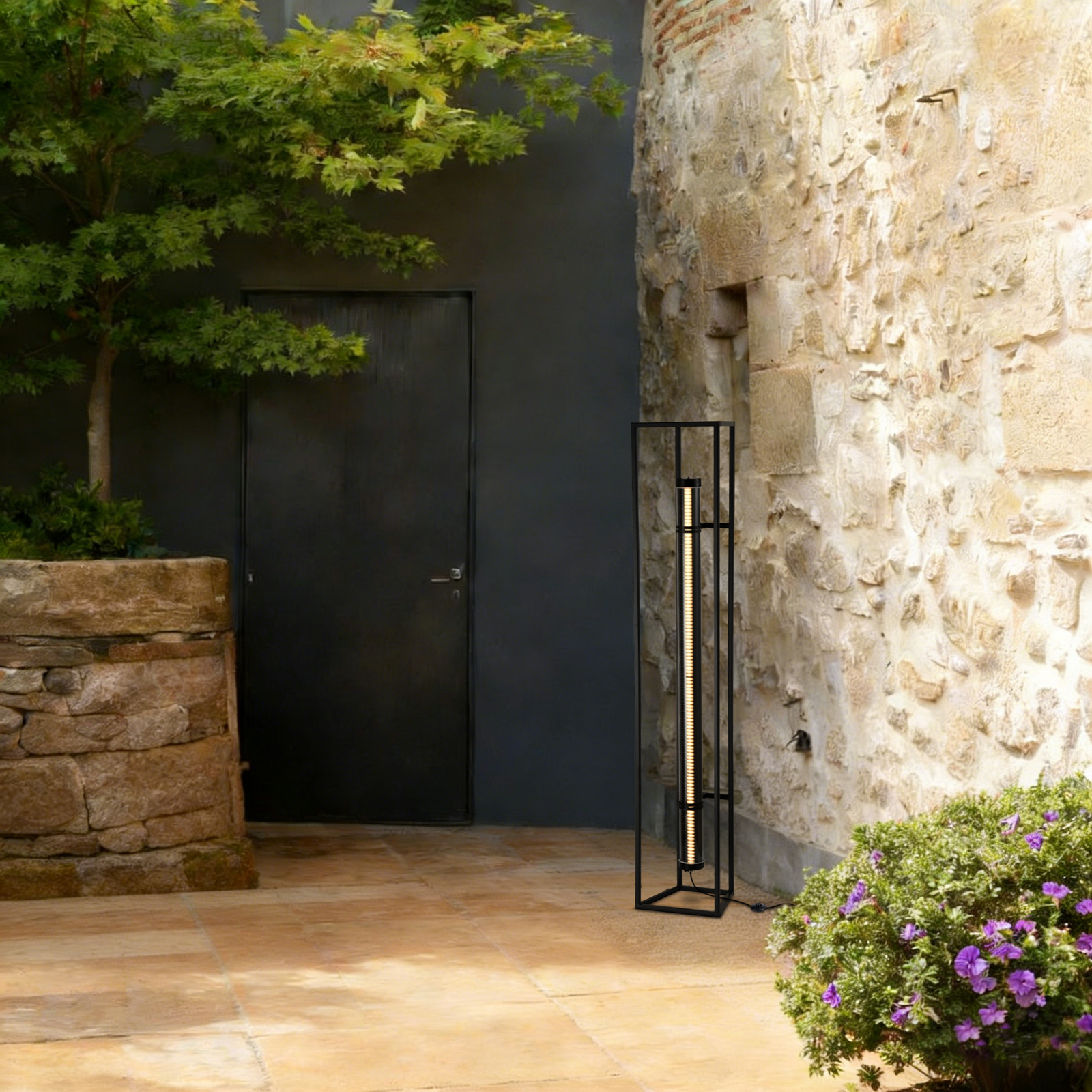

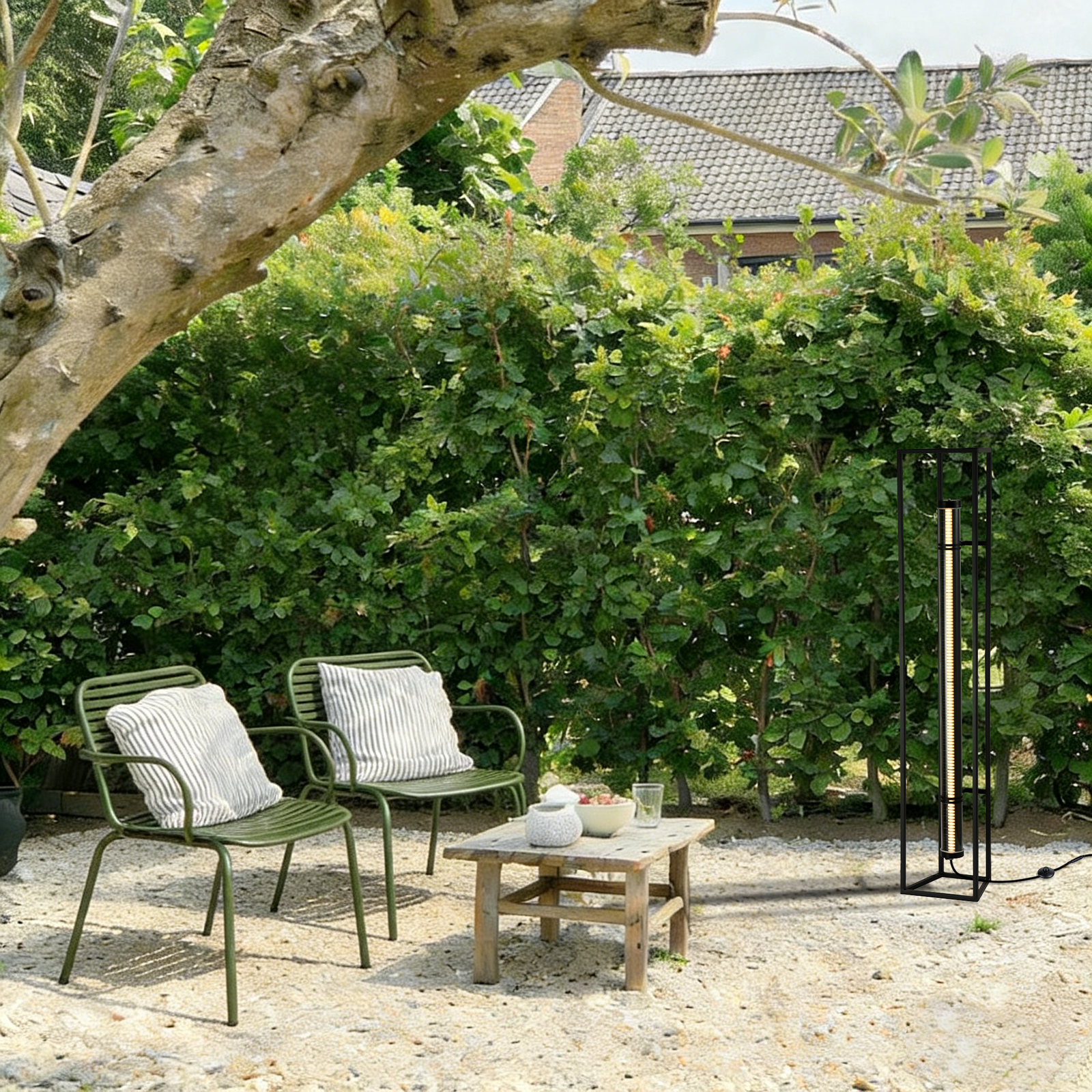

Suitable for indoor and outdoor use
Frame Tower is engineered for use in both indoor and outdoor environments, maintaining stable performance and a consistent architectural language across a wide range of project applications.
Low-glare tubular lighting
Integrated glare-control optics, including grille, honeycomb, or louver configurations, regulate the light output to minimize glare and achieve stable, uniform illumination performance.
Stable, durable, and timeless
A fully sealed luminaire combined with a robust iron floor stand ensures long-term structural stability and reliable performance, while the clean geometry and balanced proportions support consistent integration across diverse architectural environments.
TECHNICAL SPECIFICATIONS
Technical characteristics
Light source
LED source: High-efficiency SMD2835 LEDs
CRI: ≥80 (CRI 90 optional)
MacAdam: ≤3 SDCM
Lifetime: 50,000 h (L80/B10 @ 25°C)
____________________________________________________________________________
Optical system
Optical system: Integrated internal grille / honeycomb / louver
Light distribution: Single-sided emission (standard)
Option: Double-sided emission (on request)
Glare control: Reduced direct view of LED source
____________________________________________________________________________
Electrical
Input voltage: 220–240 V AC (100–277 V AC optional), 50/60 Hz
Power factor: >0.95
Power range: 40W
Control options: ON/OFF · TRIAC · 0–10 V · DALI (DT6/DT8 on request)
Options: Sensor version / Emergency version
Electrical class: Class I
____________________________________________________________________________
Color temperature
CCT: 2700K / 3000K / 4000K / 5000K / 6000K
Option: Tunable White (on request)
____________________________________________________________________________
Dimensions
Tube diameter: Ø70 mm
Length: 1200mm (Custom lengths available)
____________________________________________________________________________
Operating temperature
Operating temperature: −25°C to +45°C
Installation and maintenance
Connection
Sealed cable entry with stainless steel cable gland
Cable range: Ø5–14 mm
Disconnectable terminal block
Up to 3 × 2.5 mm² conductors
____________________________________________________________________________
Installation type
Freestanding floor-mounted luminaire with trapezoidal iron frame
Materials
Housing
Co-extruded polycarbonate (PC) or PMMA tube
UV-stable, impact-resistant
For indoor and outdoor use
____________________________________________________________________________
Structure
Iron floor stand
PC housing
Aluminum end caps
____________________________________________________________________________
Customization
Custom lengths available on request
Surface finishes: matte textured / smooth gloss
Control options configurable per project (ON/OFF, TRIAC, 0–10 V, DALI; sensor / emergency on request)
Single-sided / double-sided emission options
Standards & protection
Ingress protection
IP67 standard
IP69K optional
____________________________________________________________________________
Impact resistance
IK10 (PC)
IK08 (PMMA)
____________________________________________________________________________
Fire performance
Glow-wire test: 960°C
____________________________________________________________________________
Warranty
5-Year whole fixture
____________________________________________________________________________
Applications
Indoor and outdoor environments
ARCHITECTURAL APPLICATIONS
SUSTAINABILITY STATEMENT
Designed with longevity and responsibility in mind.
Frame Tower is conceived as a durable, freestanding architectural luminaire defined by a trapezoidal iron frame, designed to deliver stable performance throughout its service life. Its robust construction and carefully selected materials support long-term use across residential, hospitality, and commercial environments, reducing the need for frequent replacement.
The combination of a fully sealed tubular housing, integrated glare-control optics, and precision-engineered metal components ensures dependable operation in both indoor and outdoor applications. With IP67 protection against dust and water ingress and IK10 impact resistance, Frame Tower is built to withstand environmental exposure, frequent repositioning, and daily use in demanding architectural settings.
The integrated LED light source is energy-efficient and environmentally responsible. It is mercury-free and emits no ultraviolet (UV) or infrared (IR) radiation, making it safe for occupants and suitable for sensitive environments such as hospitality, leisure, and public spaces.
By prioritizing structural durability, controlled light distribution, and long service life, Frame Tower helps reduce maintenance requirements and unnecessary replacement. This approach supports sustainable lighting strategies by lowering total cost of ownership while maintaining consistent lighting performance over time.
