Framea Floor
Architectural Tubular Floor Lamp
Key Features
Square freestanding frame structure — Architectural square floor-standing frame in metal construction, providing a clean, geometric presence and stable support for tubular luminaires without fixed installation.
Interchangeable tubular compatibility — Compatible with different tubular light modules, enabling varied optical styles and finishes on the same frame for project-level customization and visual consistency.
Directional light emission — standard single-sided light output, with optional double-sided emission available.
Control Option — convenient on/off (with optional dimming)
CCT options — fixed 2700K / 3000K /4000K / 5000K / 6000K
CCT tunable versions — tunable white or switchable CCT options available.
Microwave motion sensor — optional microwave detection
Emergency versions — maintained & non-maintained emergency options.
PC tubular housing — high-transparency Covestro (Bayer) polycarbonate, UV-resistant and anti-aging.
High protection — IP67 for indoor or outdoor environments.
Impact-resistant — IK10 structural robustness.
Fire performance — 960 °C glow-wire tested, compliant with IEC safety standards.
5-year system warranty — supporting long-term reliability for projects.
Framea Floor
Modular Floor Lamp with Interchangeable Tubular Lights
Framea Floor is a freestanding, modular floor luminaire defined by a clean square architectural frame. Its self-supporting structure integrates interchangeable tubular light elements, enabling flexible placement without fixed installation for both indoor and outdoor settings.
The system supports configurable tubular optics, with honeycomb optics for controlled, low-glare illumination or optional grille optics to create different visual rhythms, allowing multiple lighting expressions within a consistent architectural language.
Available with single-sided or optional double-sided emission, Framea Floor adapts easily from accent lighting to balanced ambient illumination while maintaining visual clarity.
With a sealed IP67 construction and IK10 impact resistance, Framea Floor is suitable for a wide range of applications, including residential interiors, hospitality spaces, terraces, gardens, offices, lounges, and public lobbies—delivering durability, flexibility, and refined architectural presence in one solution.

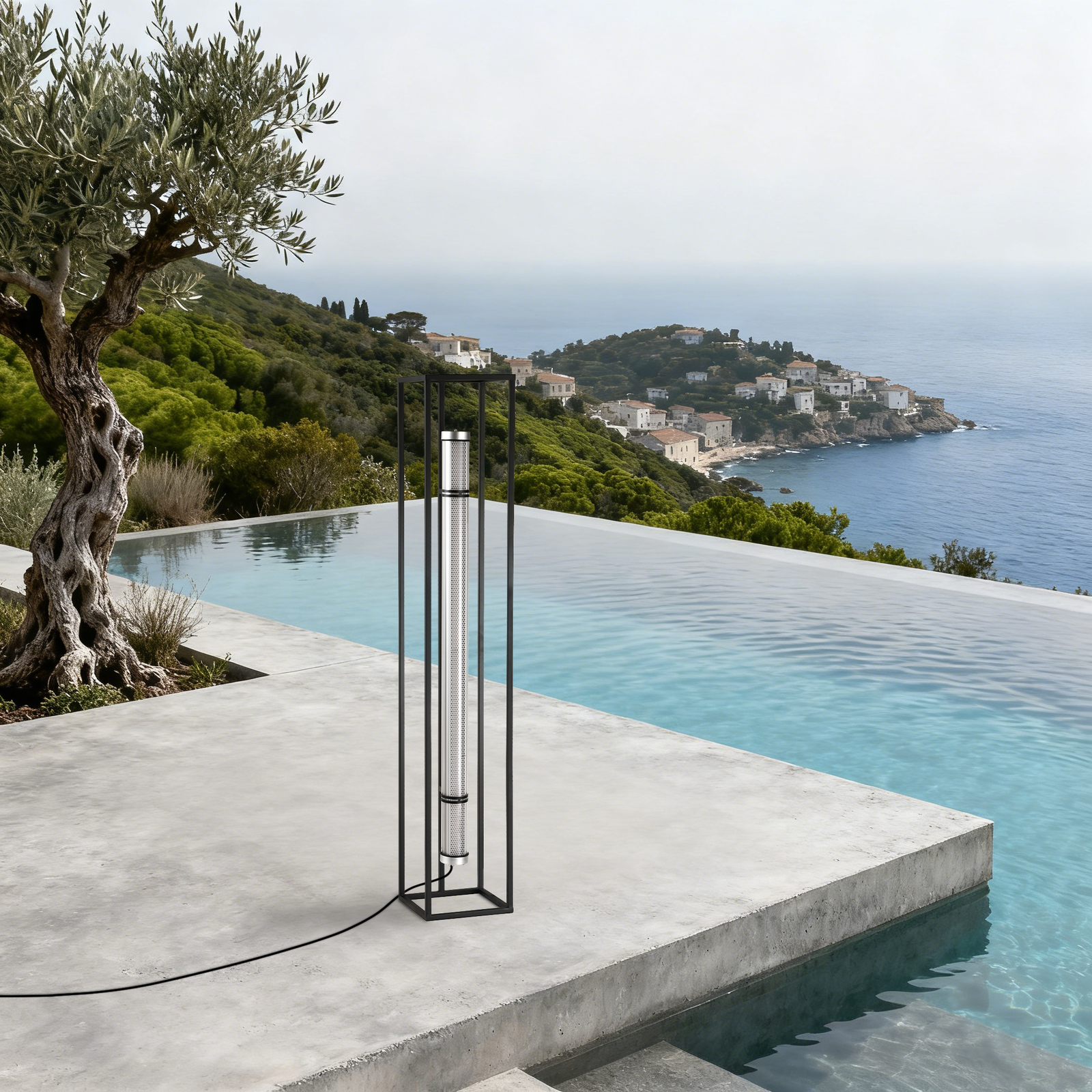

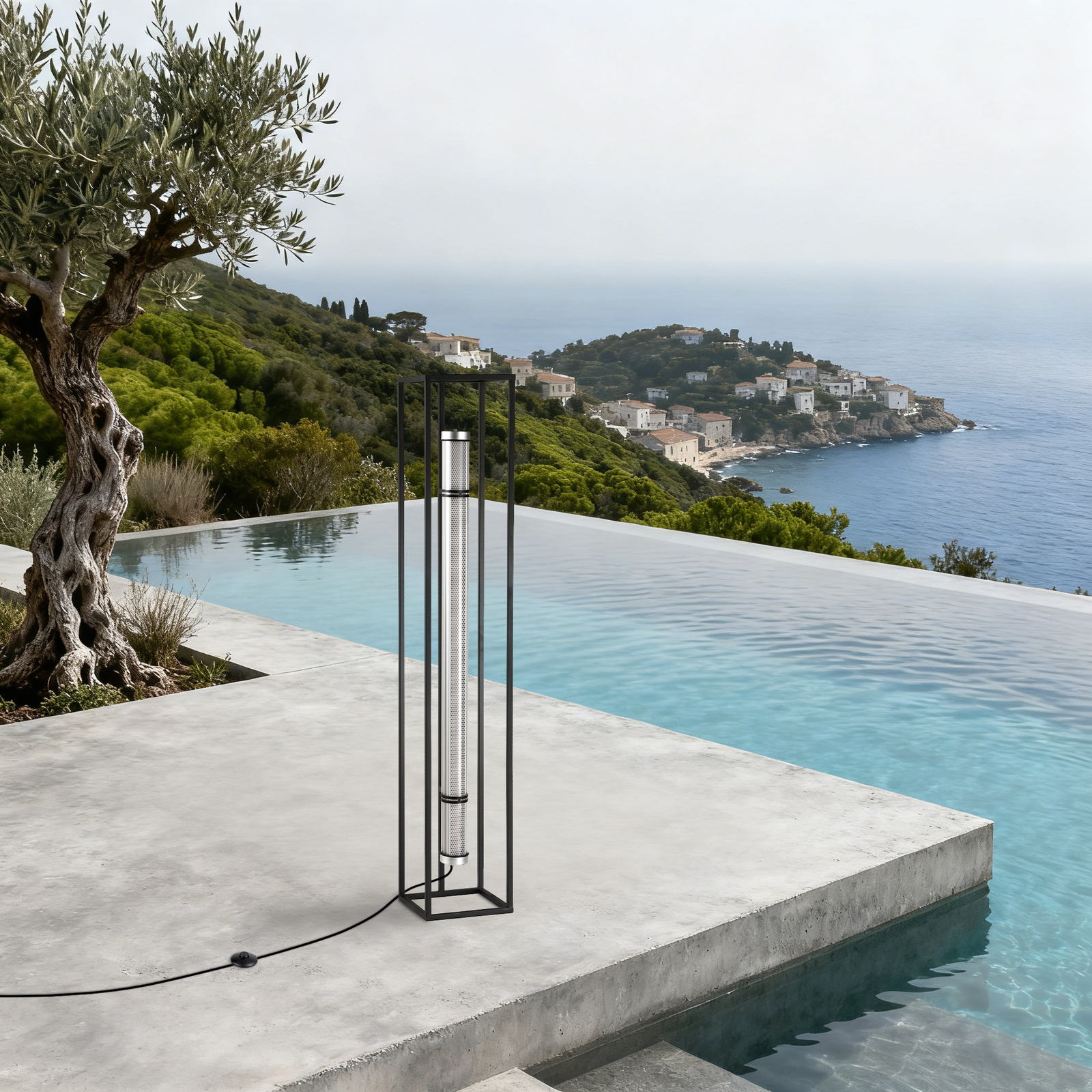

Suitable for indoor and outdoor use
Framea Floor is engineered for use in both indoor and outdoor environments, maintaining stable performance and a consistent architectural language across a wide range of project applications.
Low-glare tubular lighting
Integrated glare-control optics, including grille, honeycomb, or louver configurations, regulate the light output to minimize glare and achieve stable, uniform illumination performance.
Stable, durable, and timeless
A fully sealed luminaire combined with a robust iron floor stand ensures long-term structural stability and reliable performance, while the clean geometry and balanced proportions support consistent integration across diverse architectural environments.
TECHNICAL SPECIFICATIONS
Technical characteristics
Light source
LED source: High-efficiency SMD2835 LEDs
CRI: ≥80 (CRI 90 optional)
MacAdam: ≤3 SDCM
Lifetime: 50,000 h (L80/B10 @ 25°C)
____________________________________________________________________________
Optical system
Optical system: Integrated internal grille / honeycomb / louver
Light distribution: Single-sided emission (standard)
Option: Double-sided emission (on request)
Glare control: Reduced direct view of LED source
____________________________________________________________________________
Electrical
Input voltage: 220–240 V AC (100–277 V AC optional), 50/60 Hz
Power factor: >0.95
Power range: 40W
Control options: ON/OFF · TRIAC · 0–10 V · DALI (DT6/DT8 on request)
Options: Sensor version / Emergency version
Electrical class: Class I
____________________________________________________________________________
Color temperature
CCT: 2700K / 3000K / 4000K / 5000K / 6000K
Option: Tunable White (on request)
____________________________________________________________________________
Dimensions
Tube diameter: Ø70 mm
Length: 1200mm (Custom lengths available)
____________________________________________________________________________
Operating temperature
Operating temperature: −25°C to +45°C
Installation and maintenance
Connection
Sealed cable entry with stainless steel cable gland
Cable range: Ø5–14 mm
Disconnectable terminal block
Up to 3 × 2.5 mm² conductors
____________________________________________________________________________
Installation type
Freestanding floor-mounted luminaire with square metal frame
Materials
Housing
Co-extruded polycarbonate (PC) or PMMA tube
UV-stable, impact-resistant
For indoor and outdoor use
____________________________________________________________________________
Structure
Iron floor stand
PC housing
Aluminum end caps
____________________________________________________________________________
Customization
Custom lengths available on request
Surface finishes: matte textured / smooth gloss
Control options configurable per project (ON/OFF, TRIAC, 0–10 V, DALI; sensor / emergency on request)
Single-sided / double-sided emission options
Standards & protection
Ingress protection
IP67 standard
IP69K optional
____________________________________________________________________________
Impact resistance
IK10 (PC)
IK08 (PMMA)
____________________________________________________________________________
Fire performance
Glow-wire test: 960°C
____________________________________________________________________________
Warranty
5-Year whole fixture
____________________________________________________________________________
Applications
Indoor and outdoor environments
ARCHITECTURAL APPLICATIONS
SUSTAINABILITY STATEMENT
Designed with longevity and responsibility in mind.
Framea Floor is conceived as a durable, freestanding architectural luminaire designed to deliver stable performance throughout its service life. Its robust construction and carefully selected materials support long-term use across residential, hospitality, and commercial environments, reducing the need for frequent replacement.
The combination of a fully sealed tubular housing, integrated glare-control optics, and precision-engineered metal components ensures dependable operation in both indoor and outdoor applications. With IP67 protection against dust and water ingress and IK10 impact resistance, Framea Floor is built to withstand environmental exposure, frequent repositioning, and daily use in demanding architectural settings.
The integrated LED light source is energy-efficient and environmentally responsible. It is mercury-free and emits no ultraviolet (UV) or infrared (IR) radiation, making it safe for occupants and suitable for sensitive environments such as hospitality, leisure, and public spaces.
By prioritizing durability, controlled light distribution, and long service life, Framea Floor helps reduce maintenance requirements and unnecessary replacement. This approach supports sustainable lighting strategies by lowering total cost of ownership while maintaining consistent lighting performance over time.
