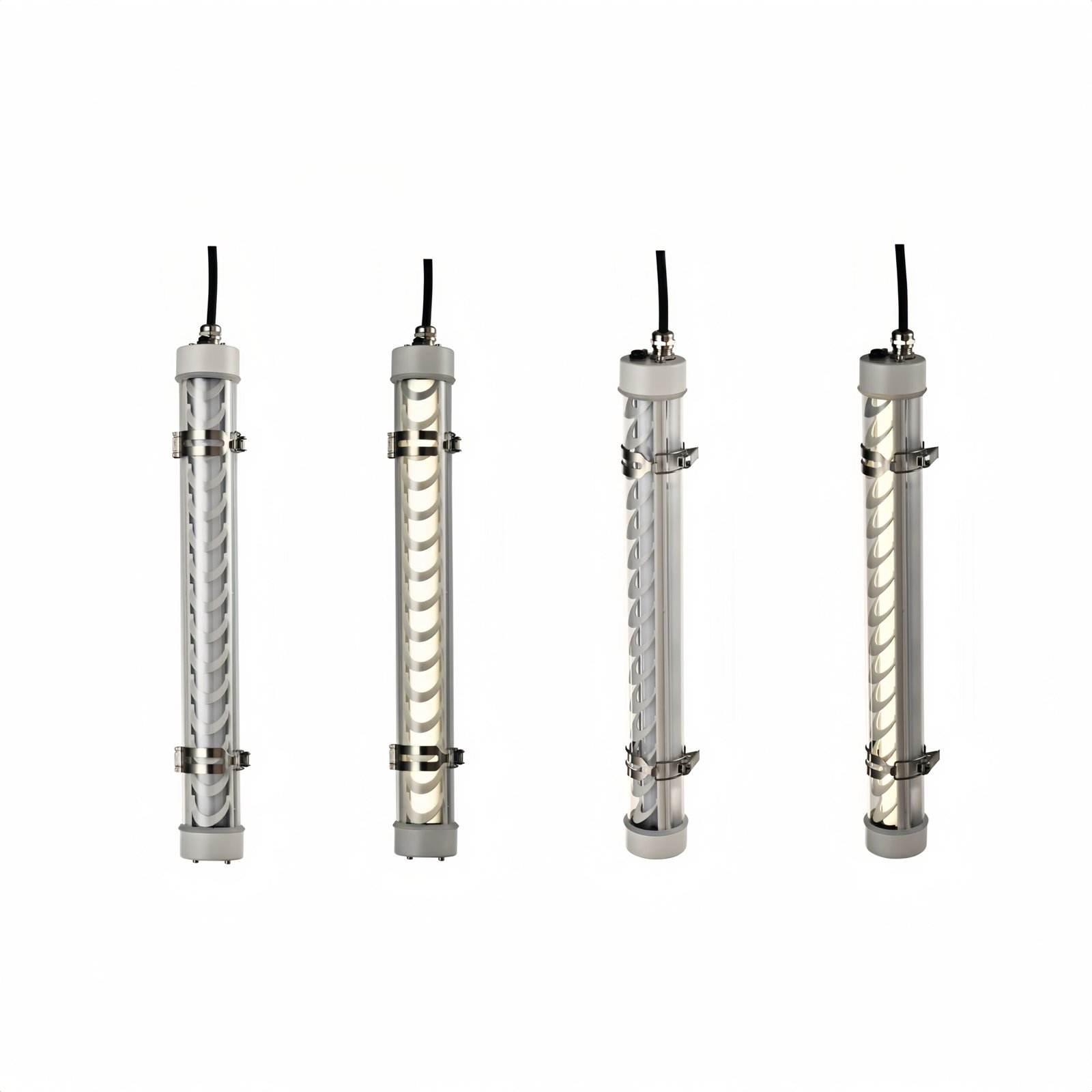

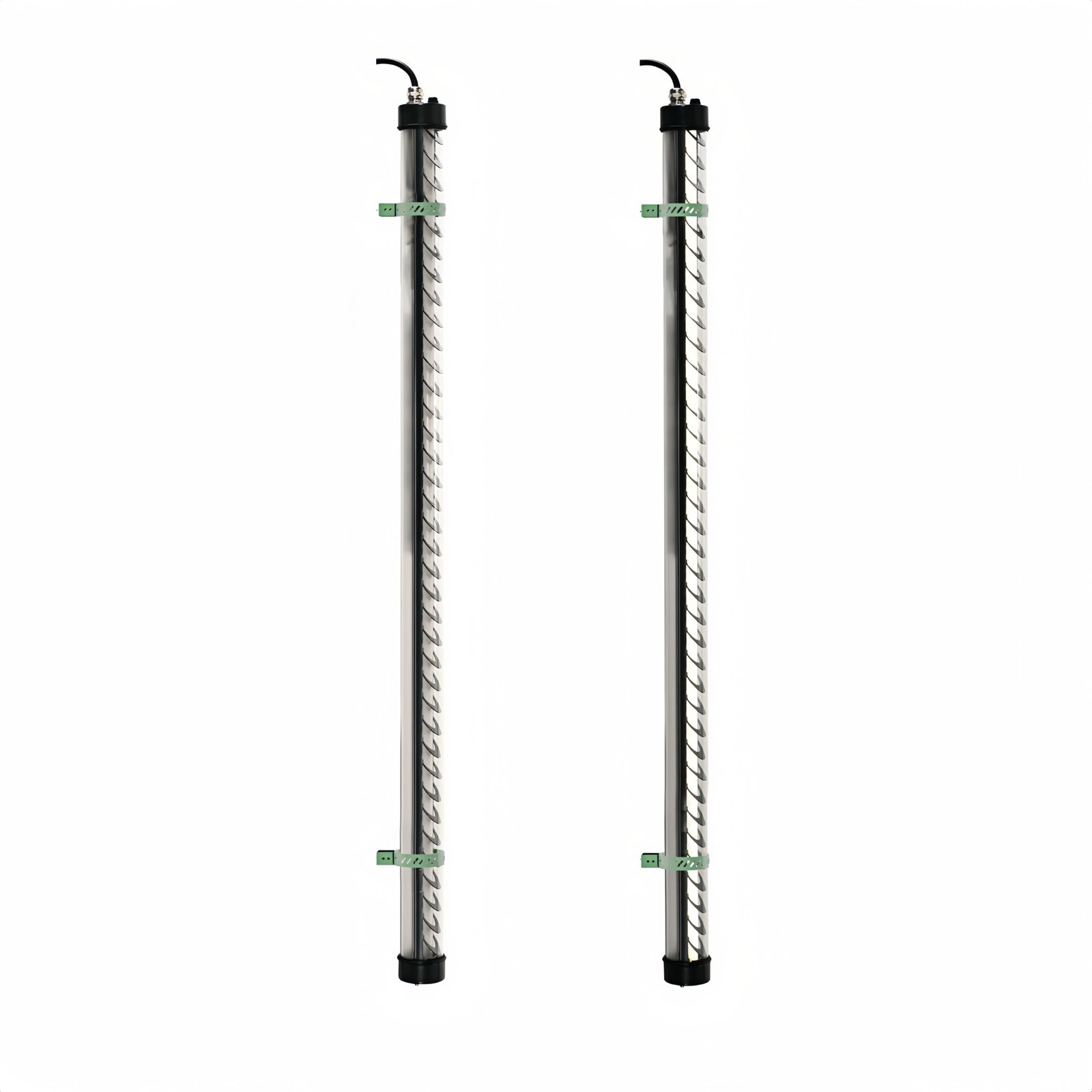

Matisse
Architectural Tubular Luminaire
Key Features
Decorative aluminum louver design — angled internal aluminum louvers control the beam and visual comfort by reflecting light downward and hiding the LED source, delivering efficient illumination with low glare.
Custom colors & finishes — available in multiple colors (custom RAL on request) with surface options including matte textured and smooth gloss.
Directional light emission — standard single-sided light output, with optional double-sided emission available for specific project requirements.
Three diameters — Ø45 mm, Ø70 mm, and Ø100 mm.
Custom lengths — configurable from 300 mm up to 1500 mm.
Flexible mounting options — wall-mounted, ceiling-mounted, suspended with dedicated mounting accessories.
CCT options — fixed 2700K / 3000K /4000K / 5000K / 6000K
CCT tunable versions — tunable white or switchable CCT options available.
Advanced control — ON/OFF, TRIAC, 0–10V, DALI options available.
Microwave motion sensor — optional PIR / microwave detection
Emergency versions — maintained & non-maintained emergency options.
PC tubular housing — high-transparency Covestro (Bayer) polycarbonate, UV-resistant and anti-aging.
High protection — IP67 for demanding or semi-outdoor environments.
Impact-resistant — IK10 structural robustness.
Fire performance — 960 °C glow-wire tested, compliant with IEC safety standards.
5-year system warranty — supporting long-term reliability for projects.
Matisse
Architectural tubular luminaire with controlled louver optics
Matisse is designed for flexible vertical or horizontal installation across a wide range of architectural and commercial applications, from circulation areas and feature walls to public spaces where controlled, comfortable lighting is essential and can be finished in a wide range of colors (custom RAL on request) to match the project palette.
Its defining feature is the inclined internal aluminum louver, which shapes the beam with precision while shielding the LED source from direct view. The result is efficient, glare-controlled illumination with a clear architectural character.
Standard versions provide single-sided directional light, while double-sided emission can be specified to suit different spatial layouts and lighting requirements.
Balancing visual comfort and luminous control, Matisse maintains consistent lighting quality even in large, open interiors. The high-transparency tubular PC housing enhances optical clarity, allowing the louver pattern, material, and light to read cleanly in the space.
Built with a durable, sealed construction and refined aluminum detailing, Matisse brings together long-term reliability and design expression. With IP67 protection and IK10 impact resistance, it is well-suited for demanding indoor environments, covered semi-outdoor areas and outdoor places where performance and aesthetics must work as one.

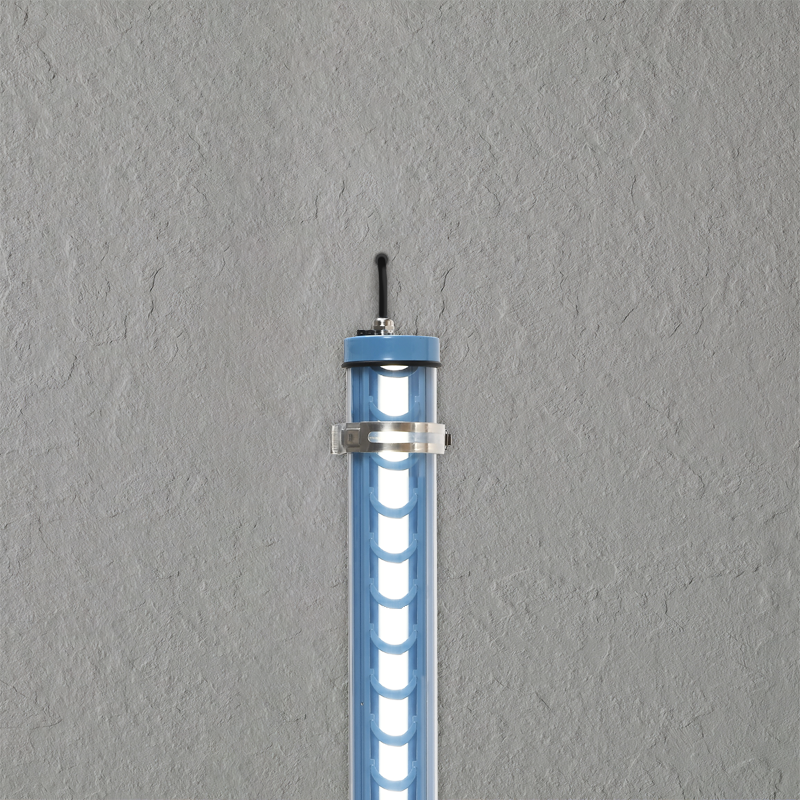

Glare-controlled louver optics for safer circulation areas
Angled aluminum louvers reflect light downward while shielding the LED source from direct view, delivering efficient, low-glare illumination for corridors, stairwells and other high-traffic routes. CRI 80+ (90 optional) ensures clean, reliable color rendering.

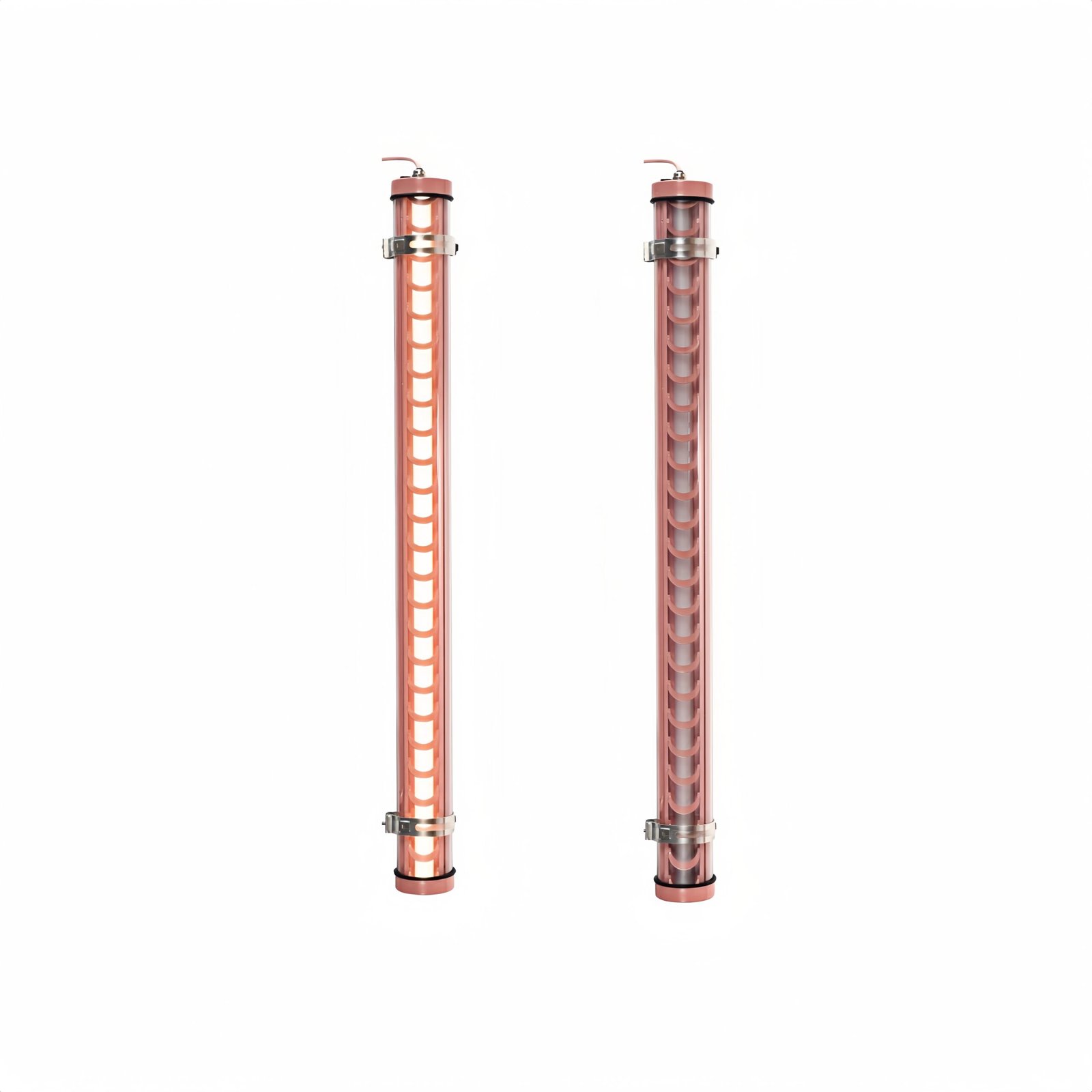

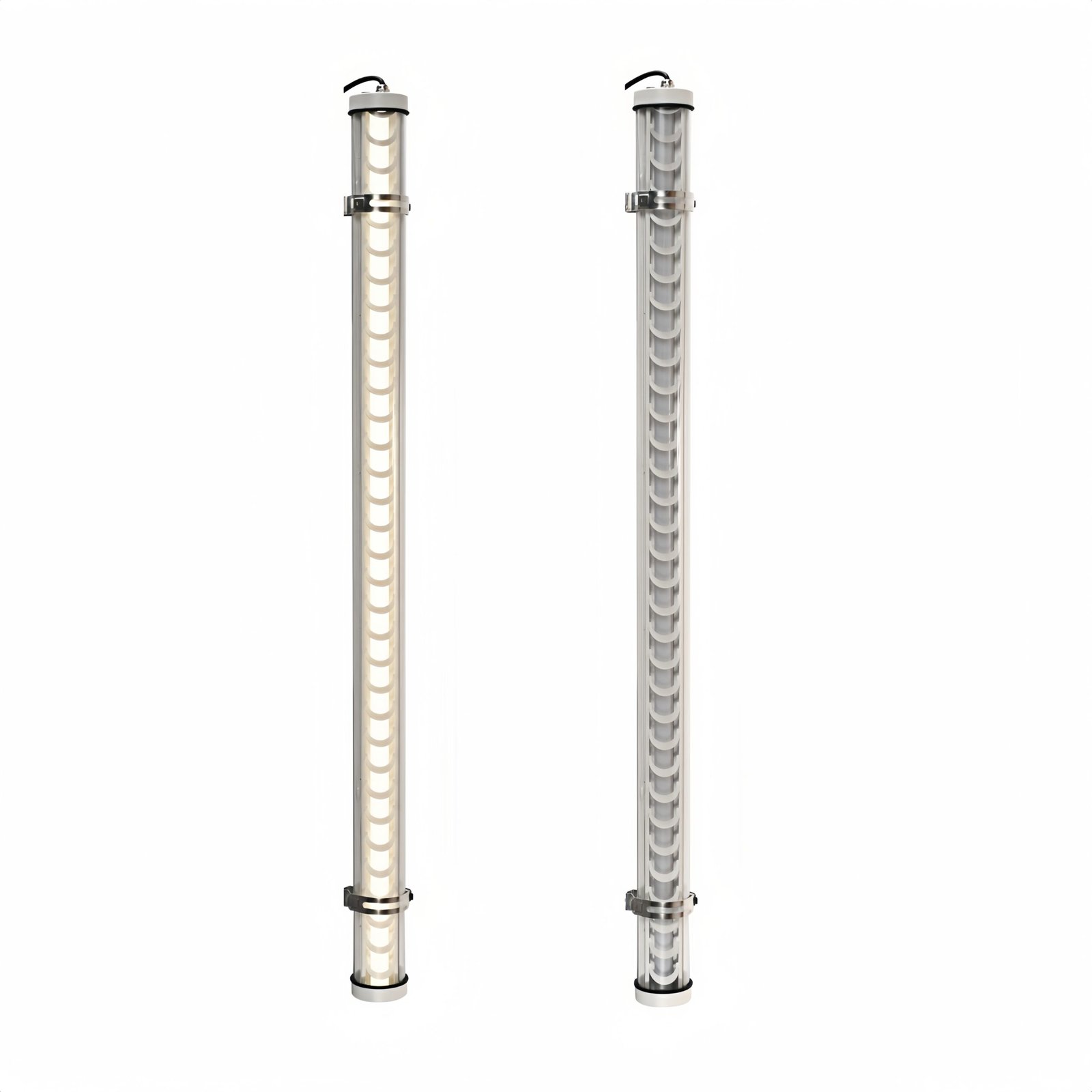

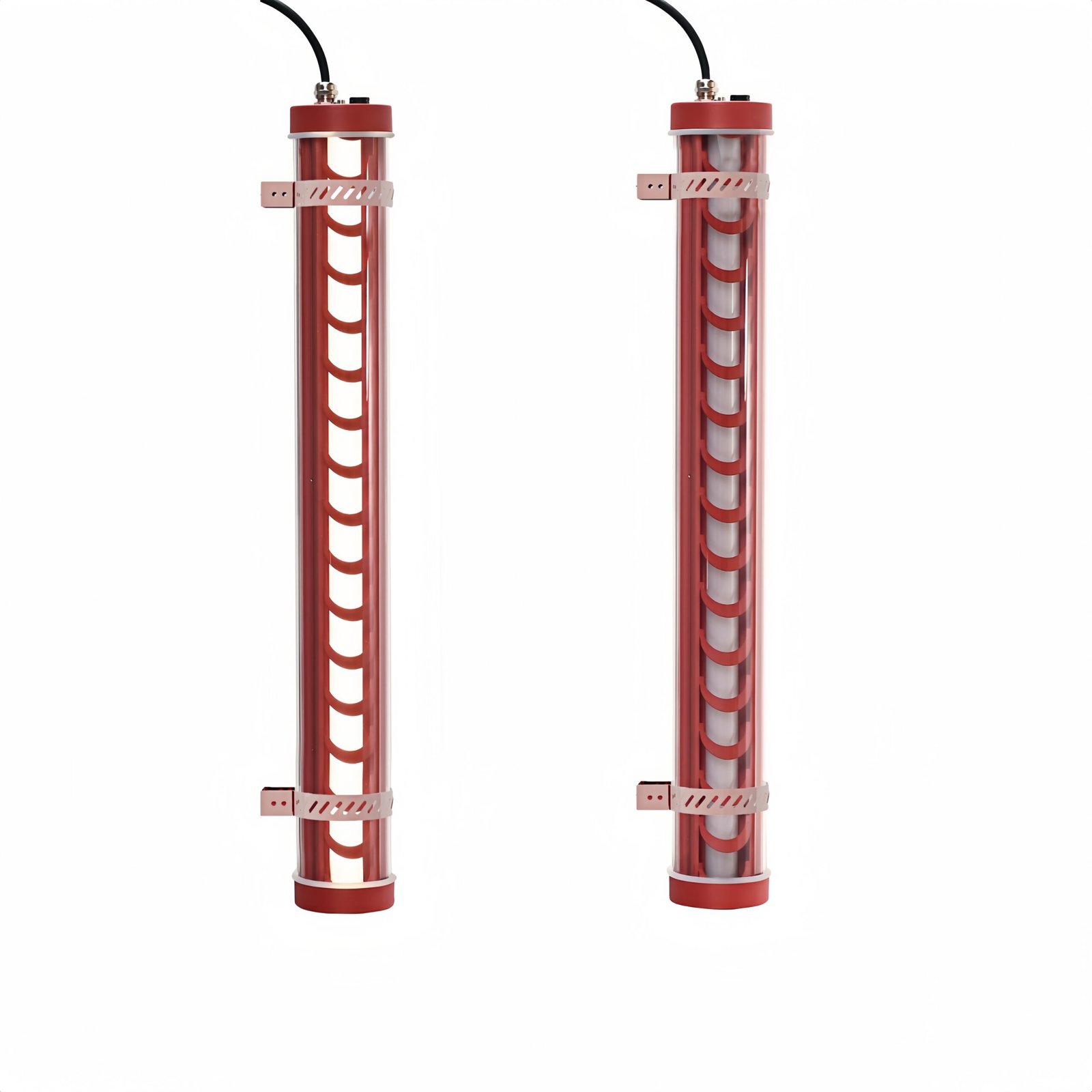

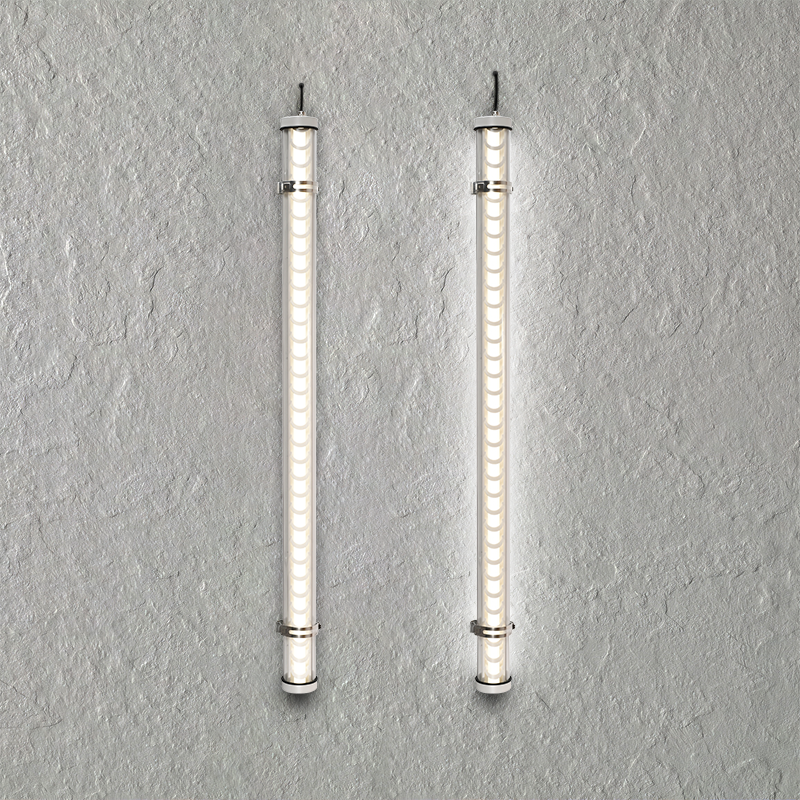

Single-sided standard, double-sided option
The luminaire is supplied with single-sided light emission as standard, providing clear and efficient directional lighting for walls, façades and passageways.
For projects requiring illumination on both sides, a double-sided version is available, allowing the same fixture family to adapt to different spatial and lighting requirements.

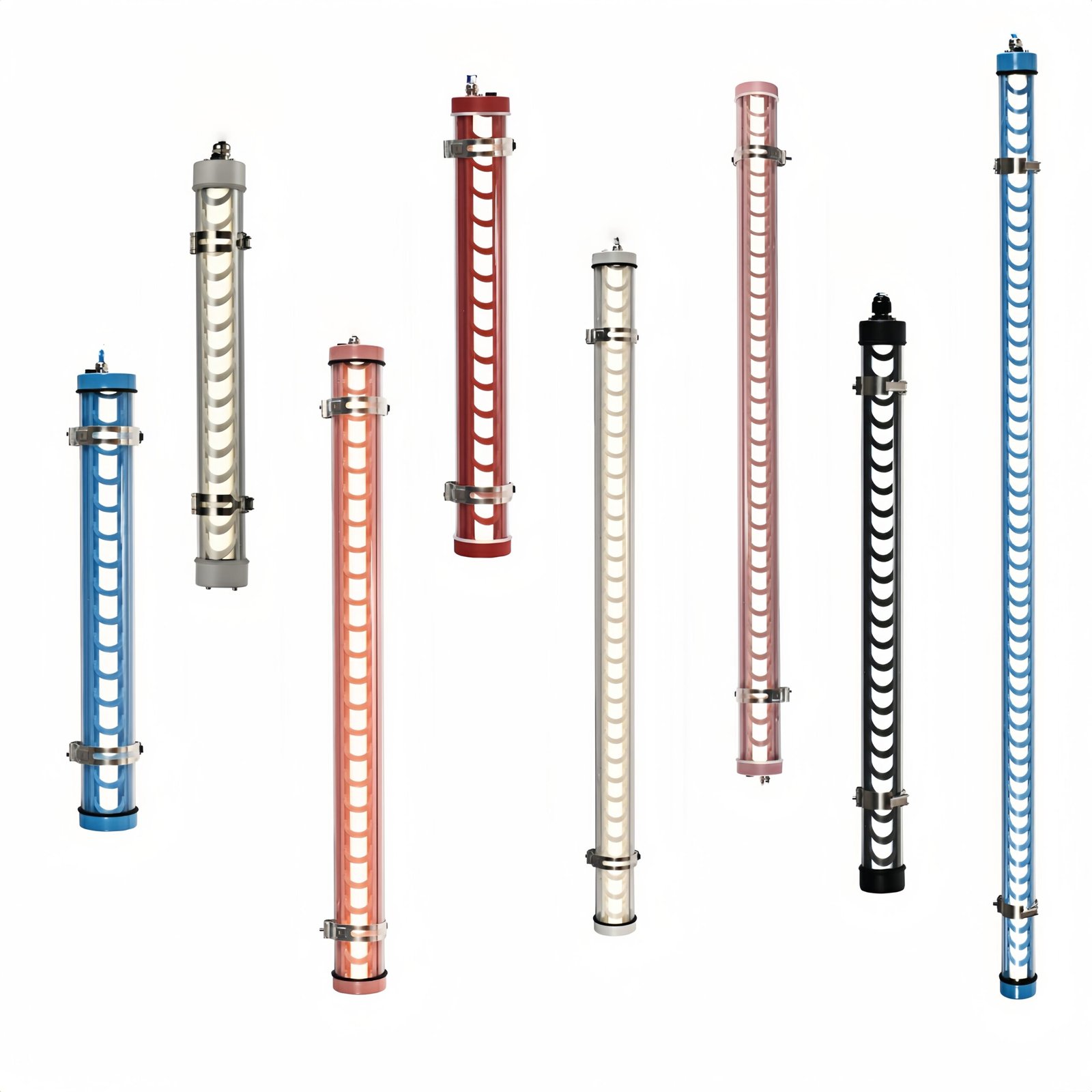

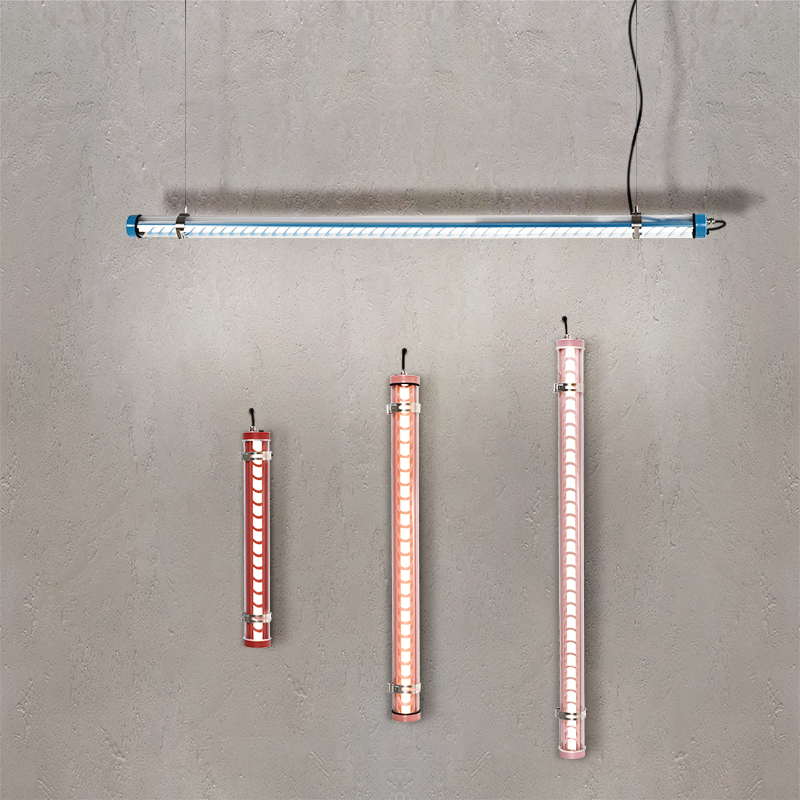

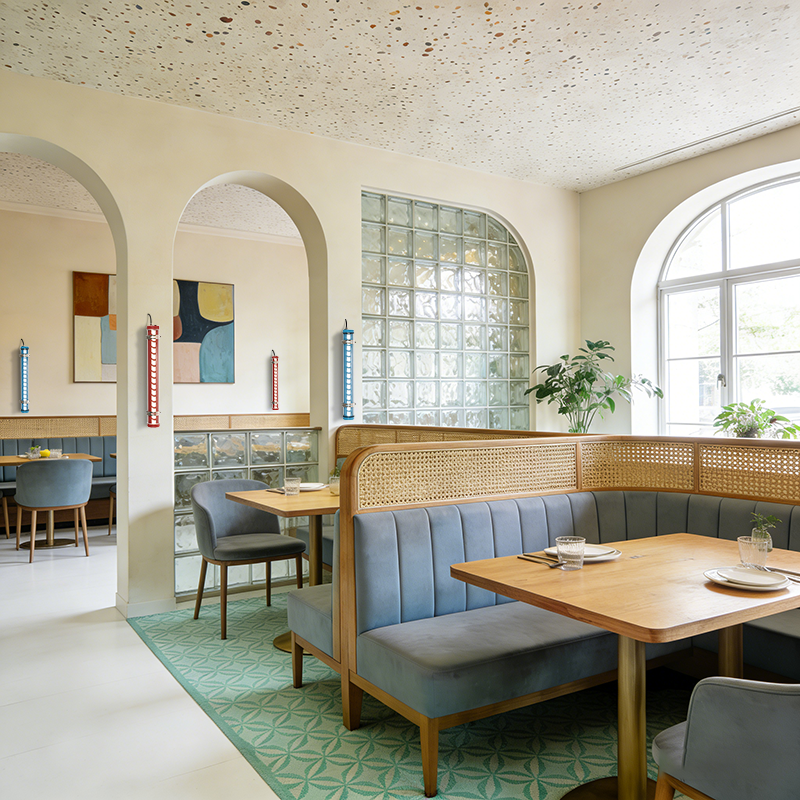

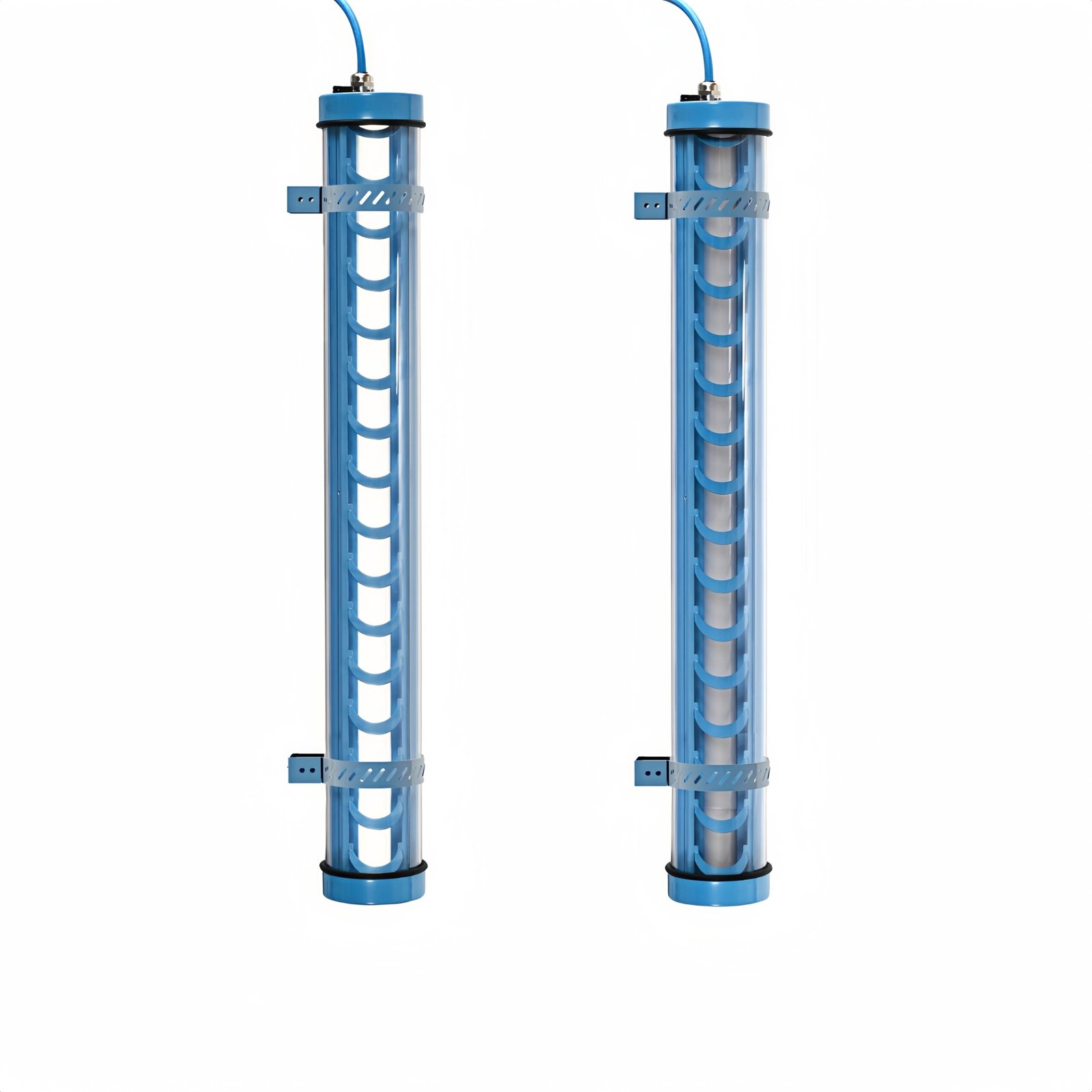

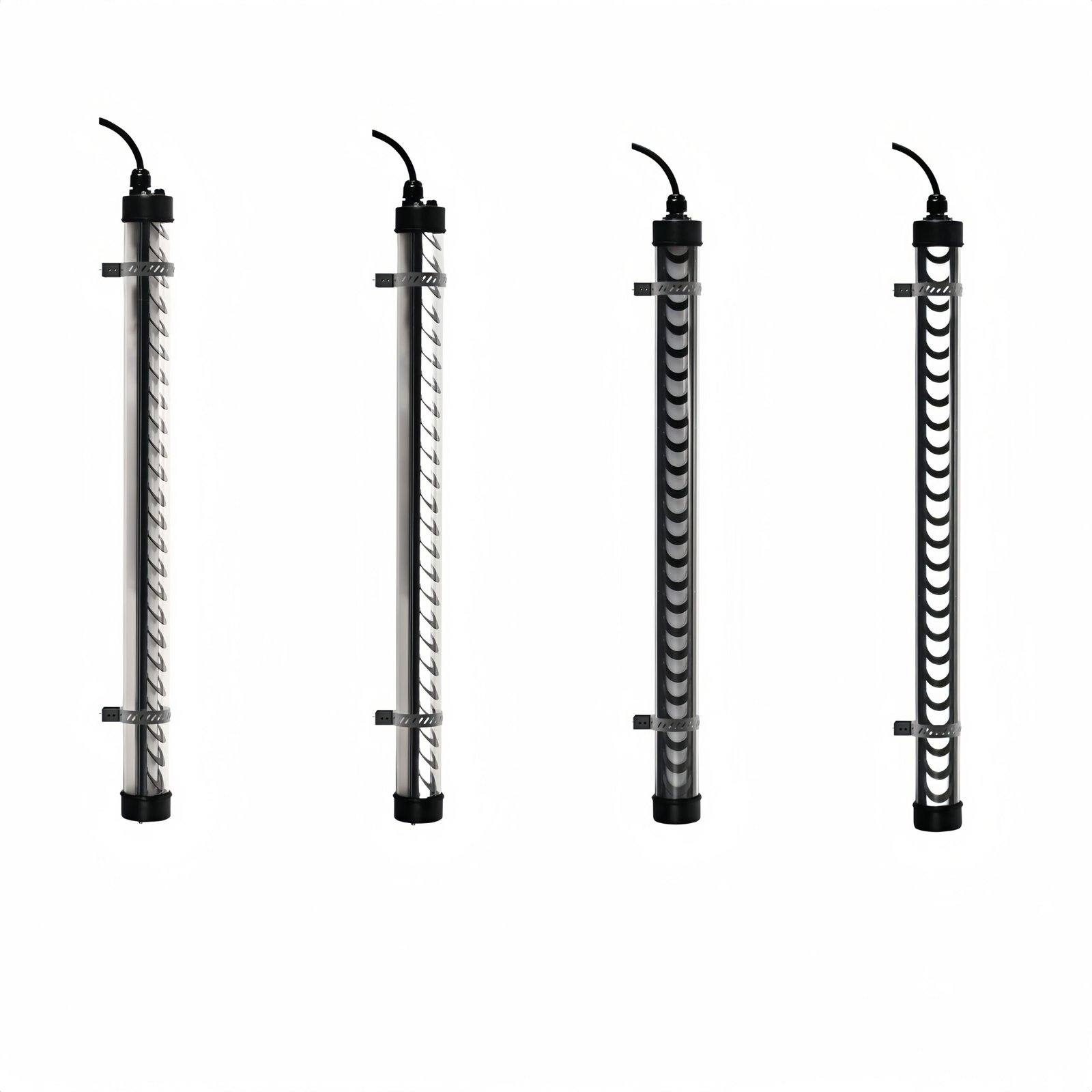

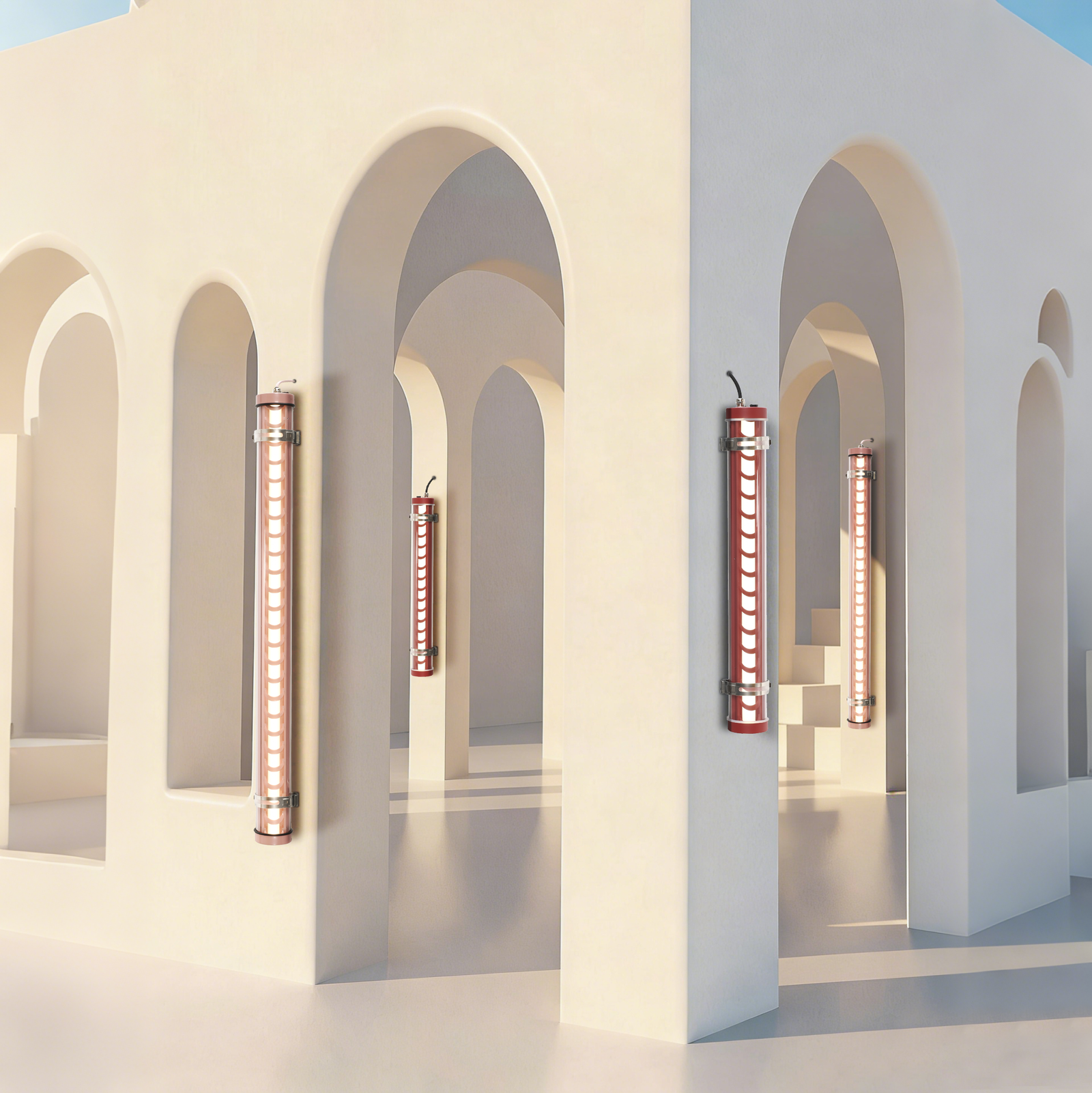

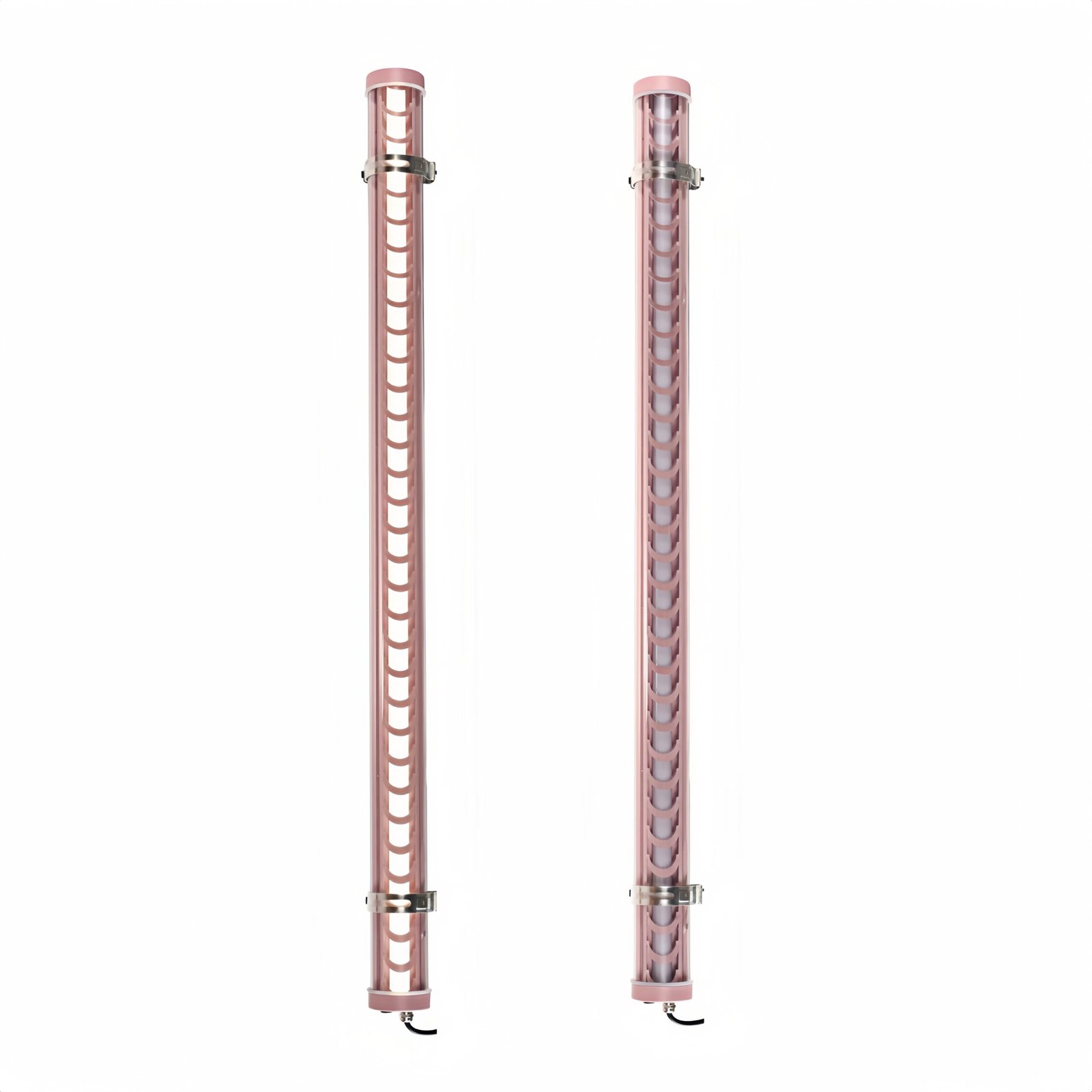

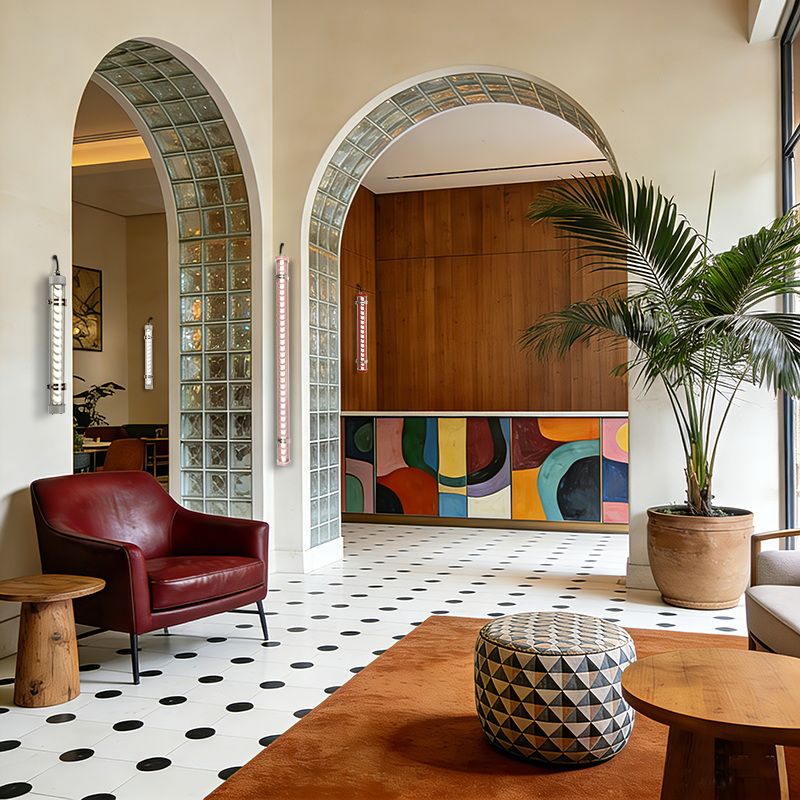

Atmosphere by design — custom colors & finishes
Available in multiple colors and finishes (custom RAL on request), allowing the luminaire to create the right mood and integrate seamlessly with different concepts.

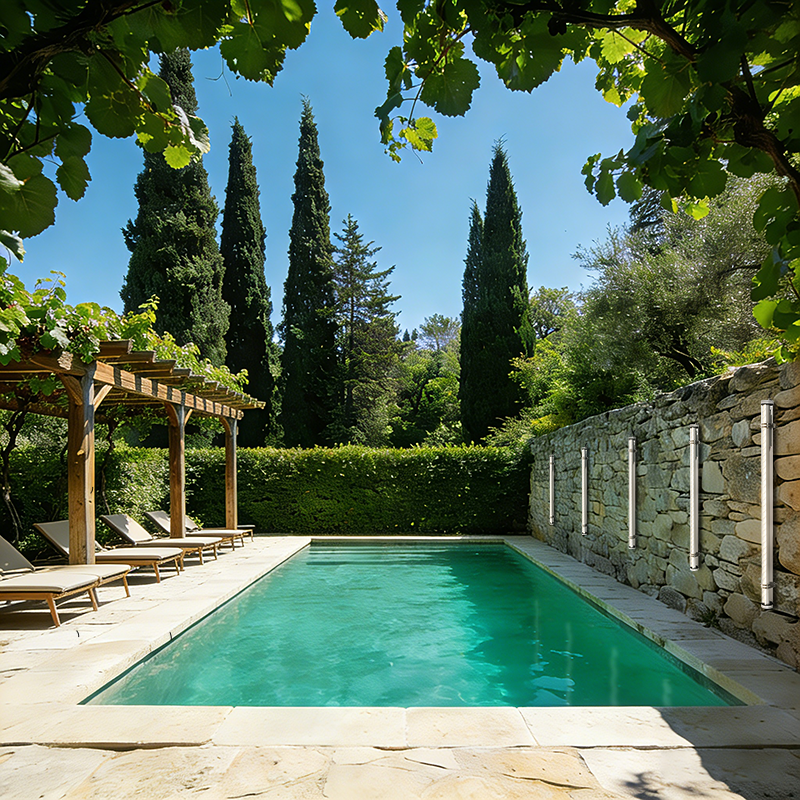

Sealed, durable construction for indoor & outdoor use
A robust build with aluminum and stainless steel components, combined with a high-impact IK10-rated housing, delivers long-term durability against UV exposure, humidity and demanding public environments. The sealed design supports strong resistance to dust and water splashes (IP67).

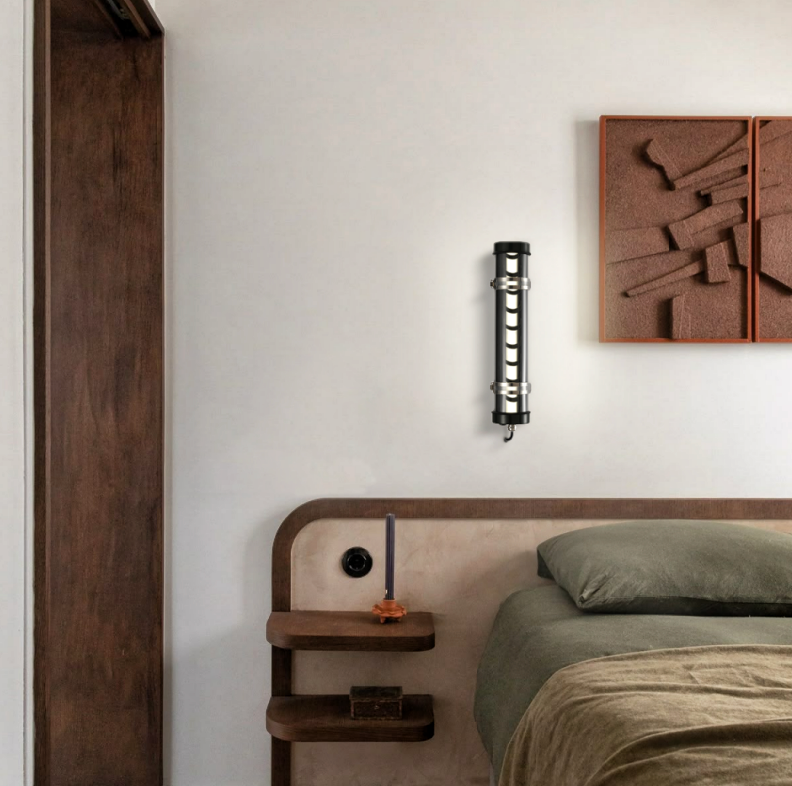

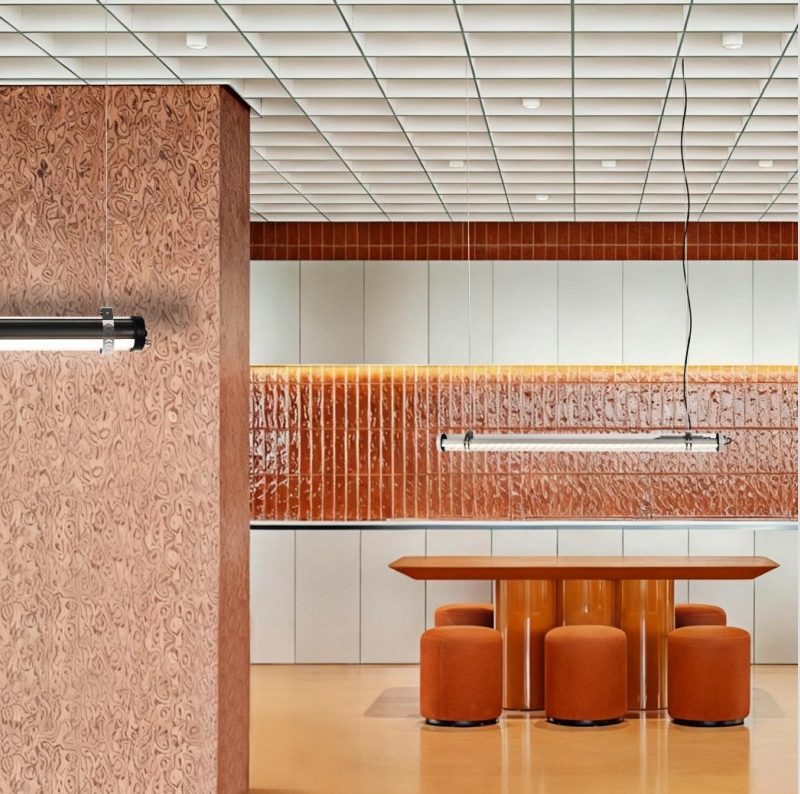

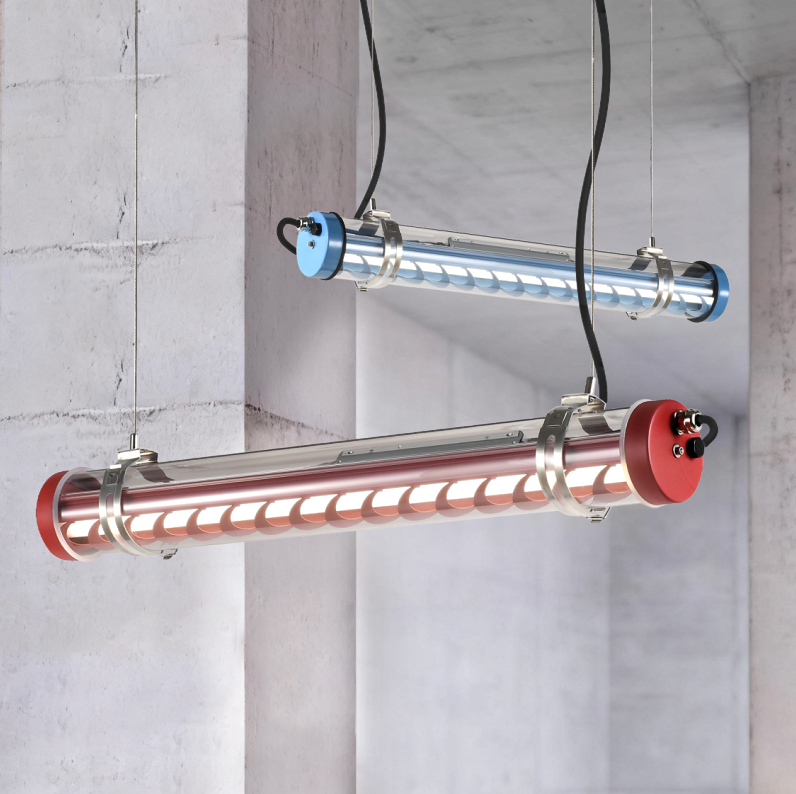

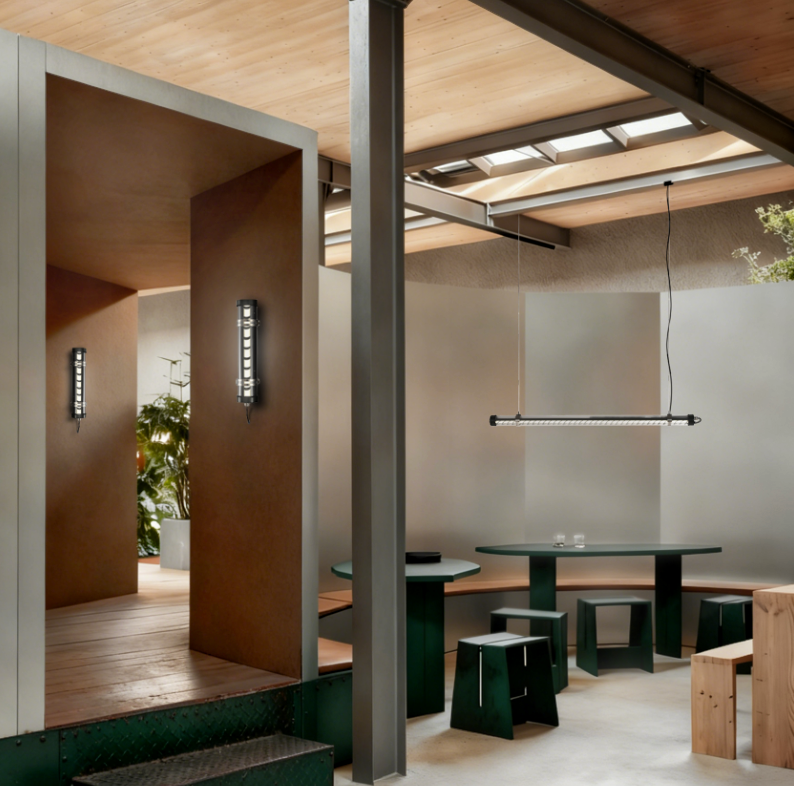

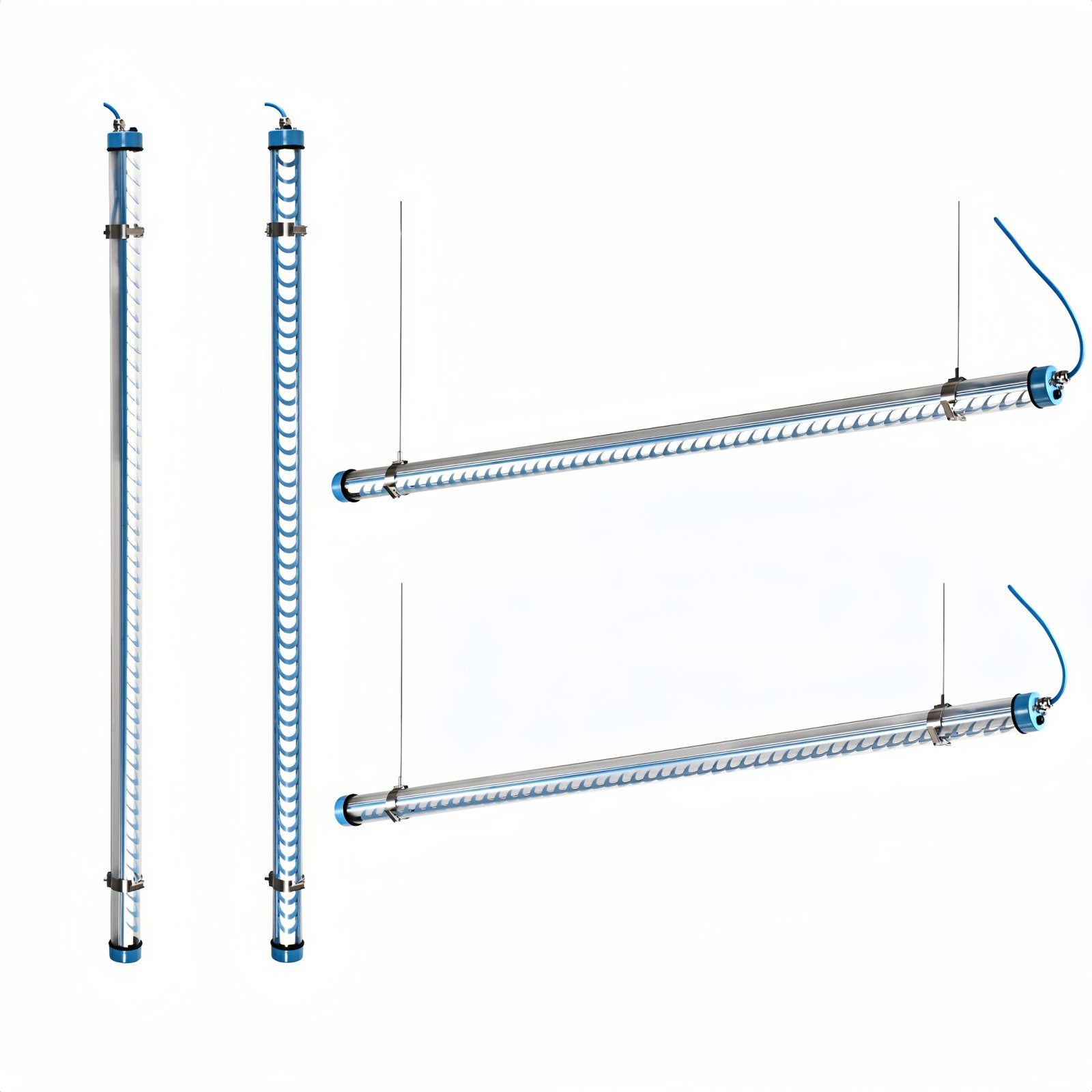

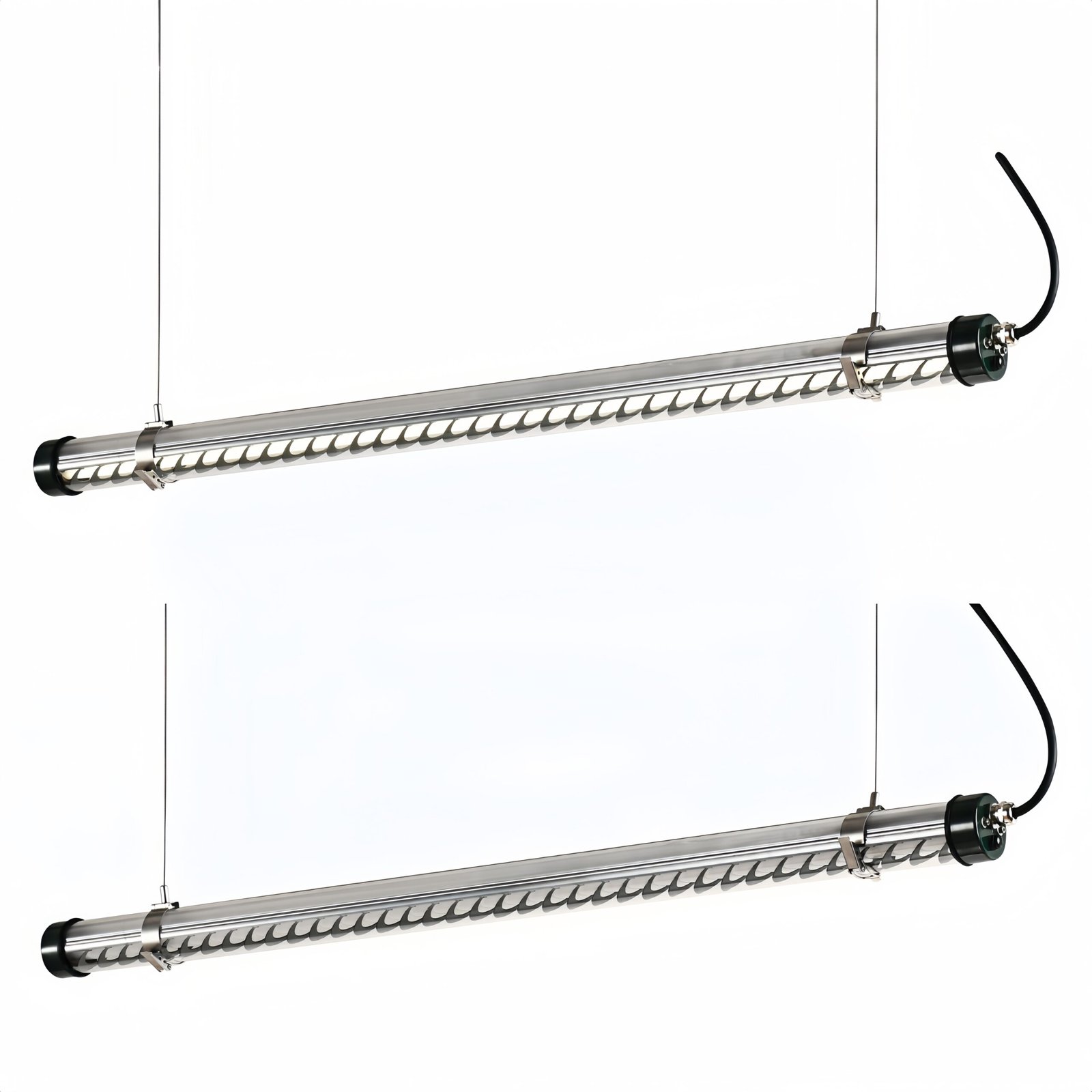

Flexible installation, scalable compositions
Supports wall-mounted or suspended installation in vertical or horizontal orientations. Multiple lengths enable single fixtures, repeated layouts or continuous linear compositions to suit spaces of any scale.
TECHNICAL SPECIFICATIONS
Technical characteristics
Light source
LED source: High-efficiency SMD2835 LEDs
CRI: ≥80 (CRI 90 optional)
MacAdam: ≤3 SDCM
Lifetime: 50,000 h (L80/B10 @ 25°C)
____________________________________________________________________________
Optical system
Optical system: Directional lighting controlled by precision aluminum louvres
Light distribution: Single-sided emission (standard)
Option: Double-sided emission (on request)
Glare control: Reduced direct view of LED source
____________________________________________________________________________
Electrical
Input voltage: 220–240 V AC (100–277 V AC optional), 50/60 Hz
Power factor: >0.95
Power range: 10–70 W (depending on length and output)
Control options: ON/OFF · TRIAC · 0–10 V · DALI (DT6/DT8 on request)
Options: Sensor version / Emergency version
Electrical class: Class I
____________________________________________________________________________
Color temperature
CCT: 2700K / 3000K / 4000K / 5000K / 6000K
Option: Tunable White (on request)
____________________________________________________________________________
Dimensions
Tube diameter: Ø45 mm / Ø70 mm / Ø100 mm
Custom lengths available (300–1500 mm)
____________________________________________________________________________
Operating temperature
Operating temperature: −25°C to +45°C
Installation and maintenance
Connection
Sealed cable entry with stainless steel cable gland
Cable range: Ø5–14 mm
Disconnectable terminal block
Up to 3 × 2.5 mm² conductors
____________________________________________________________________________
Mounting

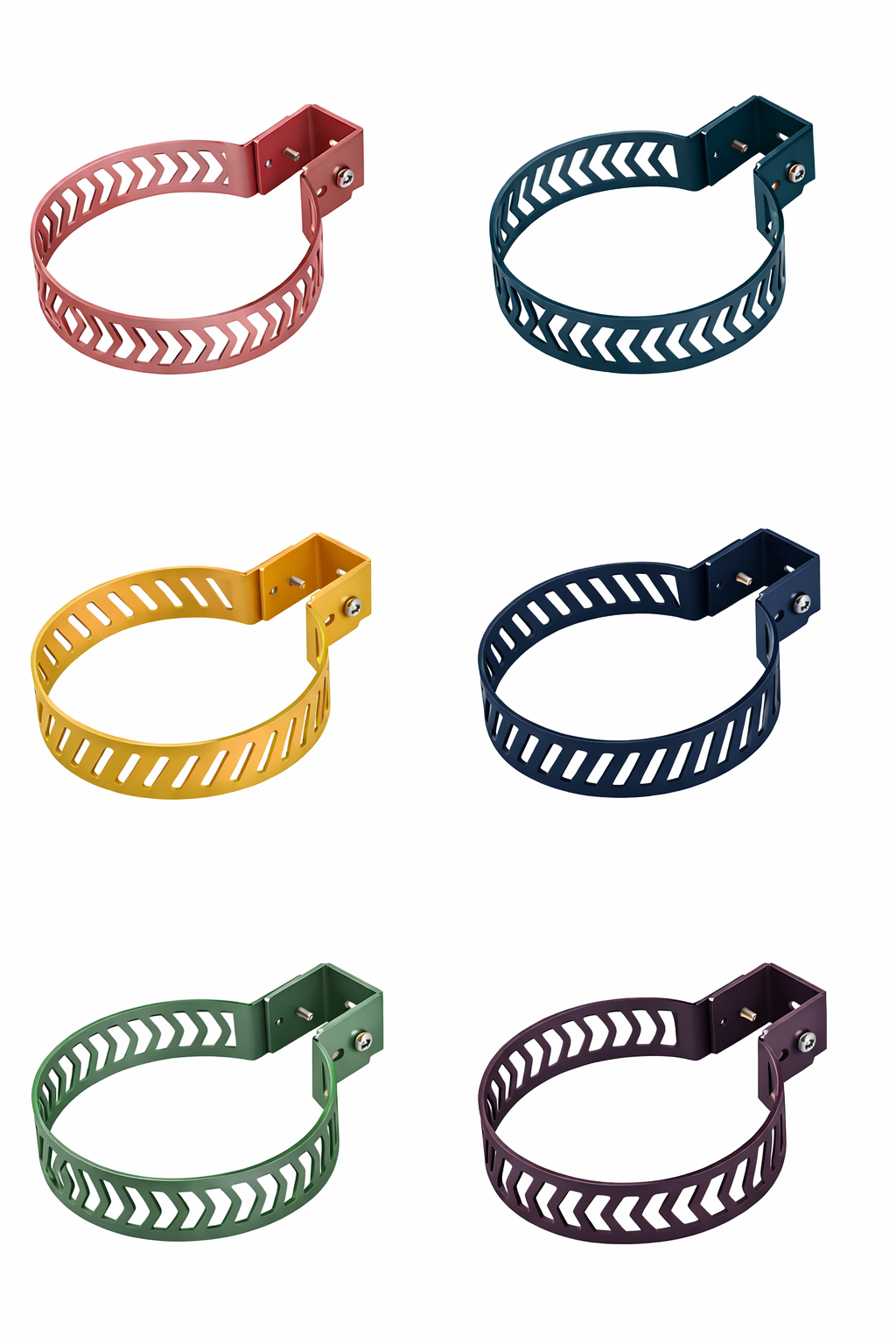

2 Mounting brackets with adjustable spacing
Wall, ceiling or suspended installation
Suspension kits available
Materials
Housing
Co-extruded polycarbonate (PC) or PMMA tube
UV-stable, impact-resistant
For indoor and outdoor use
____________________________________________________________________________
Structure
Precision-engineered aluminum louvre system
Aluminum end caps
Stainless steel fixing components
____________________________________________________________________________
Customization
Custom lengths available on request
Multiple mounting bracket options (project-specific)
Surface finishes: matte textured / smooth gloss
Control options configurable per project (ON/OFF, TRIAC, 0–10 V, DALI; sensor / emergency on request)
Single-sided / double-sided emission options
Standards & protection
Ingress protection
IP67 standard
IP69K optional
____________________________________________________________________________
Impact resistance
IK10 (PC)
IK08 (PMMA)
____________________________________________________________________________
Fire performance
Glow-wire test: 960°C
____________________________________________________________________________
Warranty
5-Year whole fixture
____________________________________________________________________________
Applications
Architectural indoor and outdoor environments

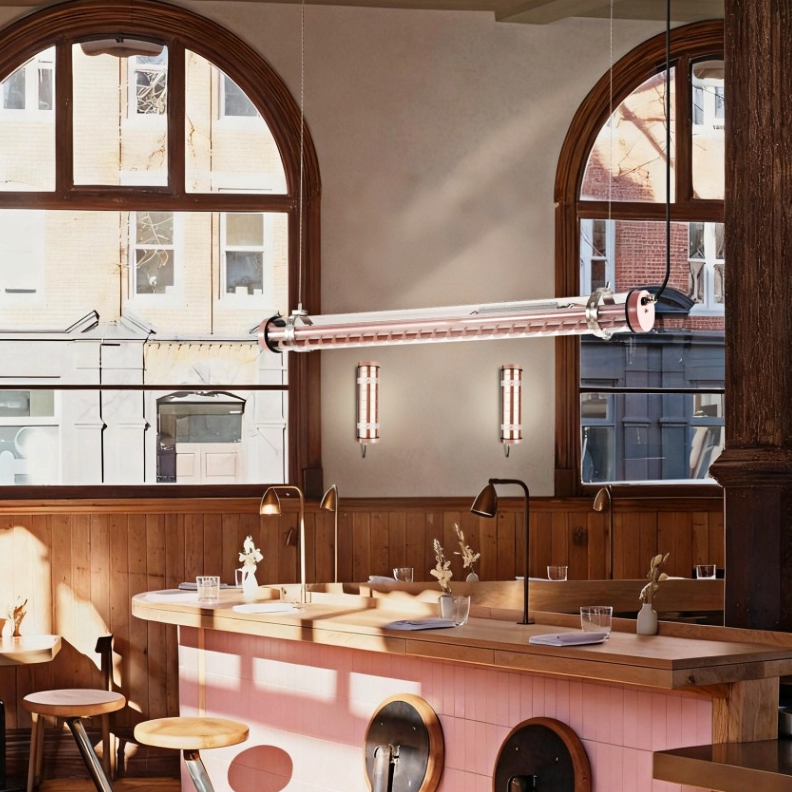

ARCHITECTURAL APPLICATIONS
SUSTAINABILITY STATEMENT
Designed with longevity and responsibility in mind.
Matisse is built with an integrated LED system and a robust project-grade structure, ensuring stable performance throughout its service life.
The combination of precision aluminum louver optics, aluminum and stainless steel components, and an impact-resistant tubular housing delivers reliable operation in demanding architectural and commercial environments, with IP67 protection against dust and water ingress and IK10 resistance to mechanical impact.
The integrated LED light source is energy-efficient and environmentally responsible—mercury-free, with no ultraviolet (UV) and no infrared (IR) radiation—making it safe for occupants and suitable for sensitive architectural spaces.
By focusing on durability, controlled optics, and high protection ratings, Matisse minimizes maintenance requirements and reduces the need for premature replacement.
This approach supports sustainable building strategies by lowering total cost of ownership while maintaining consistent lighting performance over time.
