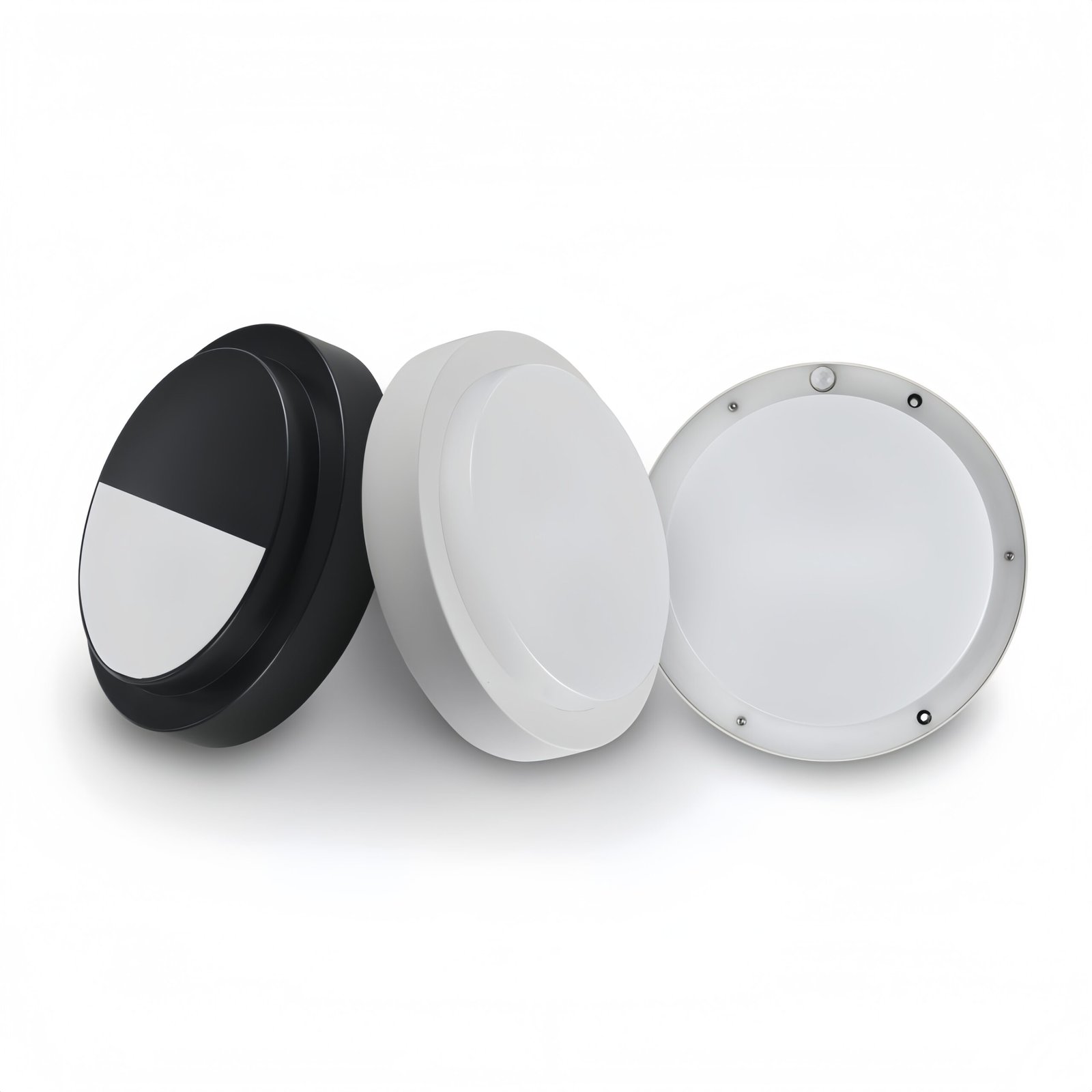

MC-822
LED Round Bulkhead Light Fitting
Key Features
- Dimension: Ø300*H70mm
- Mounting options: wall-mounted or ceiling-mounted
- CCT options: 2700K / 3000K / 4000K / 5000K / 6000K
- Power: 20W / 25W
- Luminous efficacy: 100 lm/W (standard), up to 120 lm/W optional

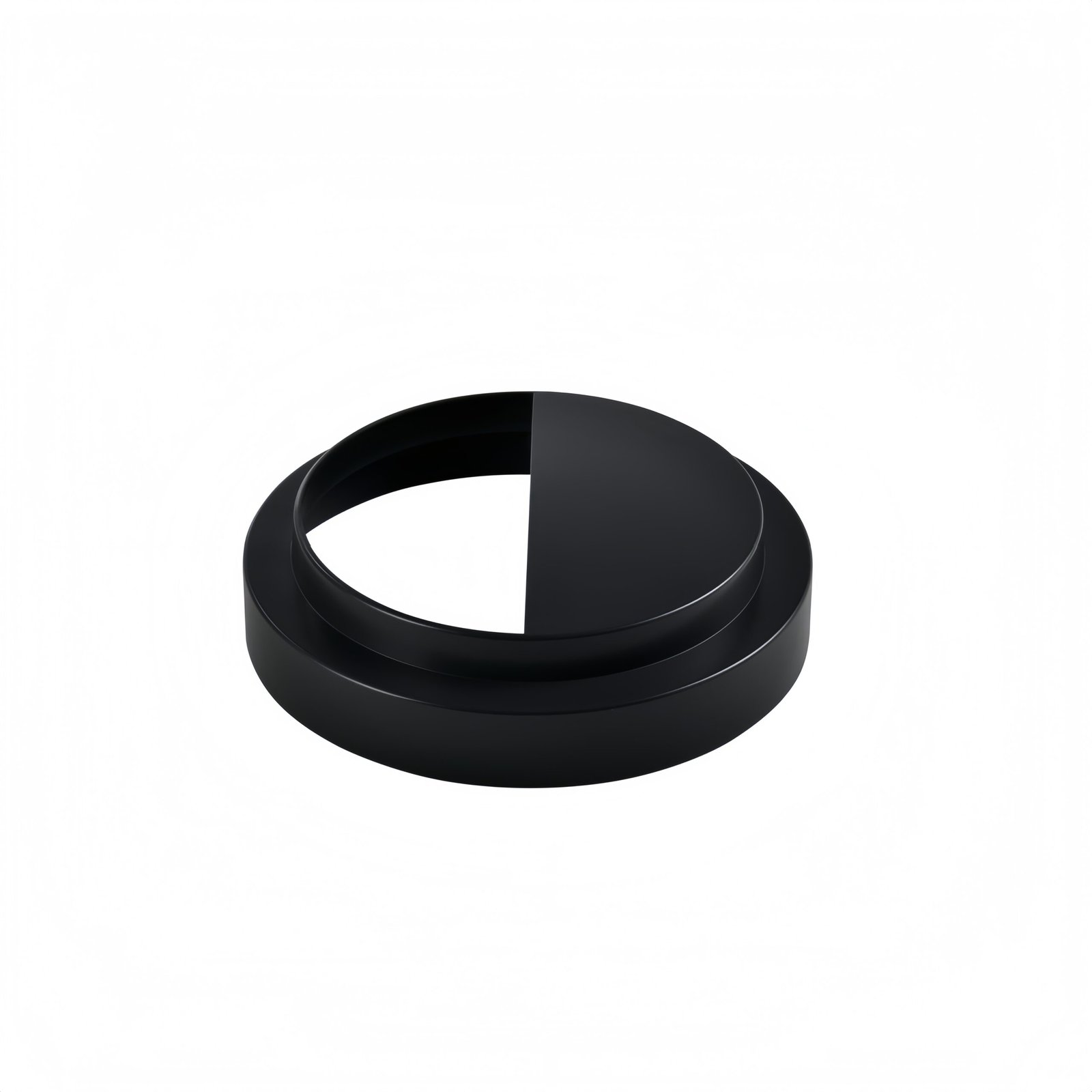

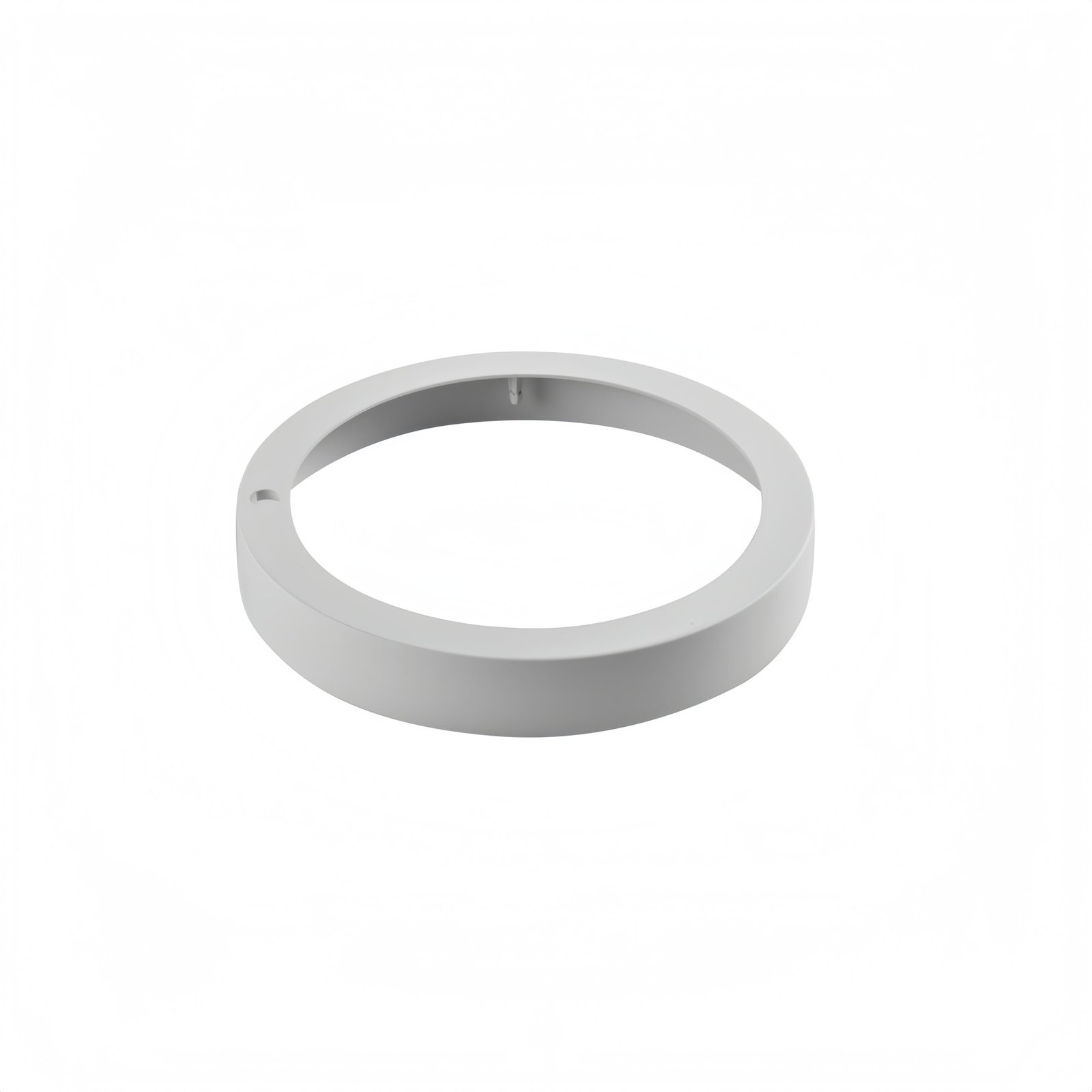

Bezel options: Full bezel or half bezel, available in Black or White
- UV Resistance PC diffuser
- Emergency version (3 hours 2-3W) available
- Microwave motion sensor version available
- IP65 ingress protection
- IK10 impact resistance
- 5-year system warranty
- CE, RoHS certified
Description
The MC-822 Round LED Bulkhead Light is designed for reliable illumination in public circulation and commercial environments such as corridors, stairwells, entrances, balconies, car parks, utility rooms and exterior areas.
Available with two bezel designs: full bezel or half bezel, and offered in Black or White finishes, the MC-822 provides flexible design options to suit different architectural and aesthetic requirements. Operating at 20W / 25W, the luminaire delivers high luminous efficacy of up to 120 lm/W, ensuring efficient and uniform lighting for everyday use.
Optional 3-hour emergency backup and microwave motion sensor versions support enhanced safety and energy efficiency in high-traffic public areas.
Rated IP65 for dust and water protection and IK10 for impact resistance, the MC-812 offers long-term durability and dependable performance in demanding indoor and outdoor installations.

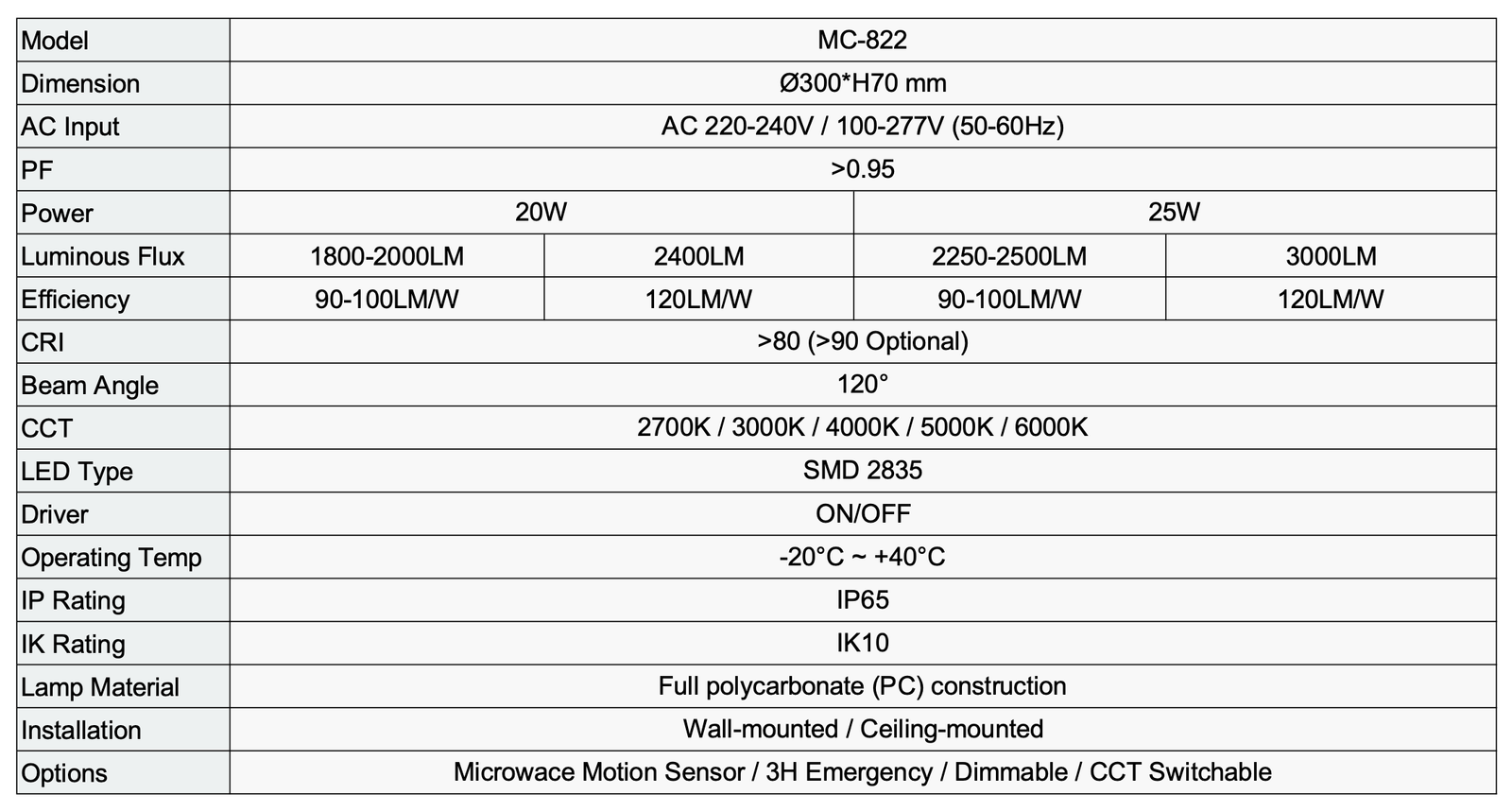

TECHNICAL SPECIFICATIONS
APPLICATIONS
SUSTAINABILITY STATEMENT
Designed for long-term durability and reliable performance in public and commercial environments
Designed for long-term durability and efficient operation in public and commercial environments.
MANI LED ceiling and bulkhead luminaires feature robust construction and energy-efficient, mercury-free LED systems with no UV or IR radiation, reducing maintenance needs and environmental impact over the product lifecycle.
By focusing on reliability and low total cost of ownership, they support sustainable lighting for shared public spaces.
