Perfo 360
Architectural Tubular Luminaire
Key Features
Two diameters — Ø70 mm and Ø100 mm.
Custom lengths — configurable from 300 mm up to 1500 mm.
Perforated stainless steel insert — Integrated perforated stainless steel structure inside the PC tube to control light distribution, reduce glare.
Multiple emission options — Single-sided, double-sided, or 360° emission to suit different layouts and lighting requirements.
Multiple mounting methods — Suitable for suspended, ceiling-mounted, and wall-mounted installation with dedicated accessories.
CCT options — fixed 2700K / 3000K /4000K / 5000K / 6000K
CCT tunable versions — tunable white or switchable CCT options available.
Advanced control — ON/OFF, TRIAC, 0–10V, DALI options available.
Microwave motion sensor — optional PIR / microwave detection
Emergency versions — maintained & non-maintained emergency options.
PC tubular housing — high-transparency Covestro (Bayer) polycarbonate, UV-resistant and anti-aging.
High protection — IP67 for indoor and outdoor environments.
Impact-resistant — IK10 structural robustness.
Fire performance — 960 °C glow-wire tested, compliant with IEC safety standards.
5-year system warranty — supporting long-term reliability for projects.

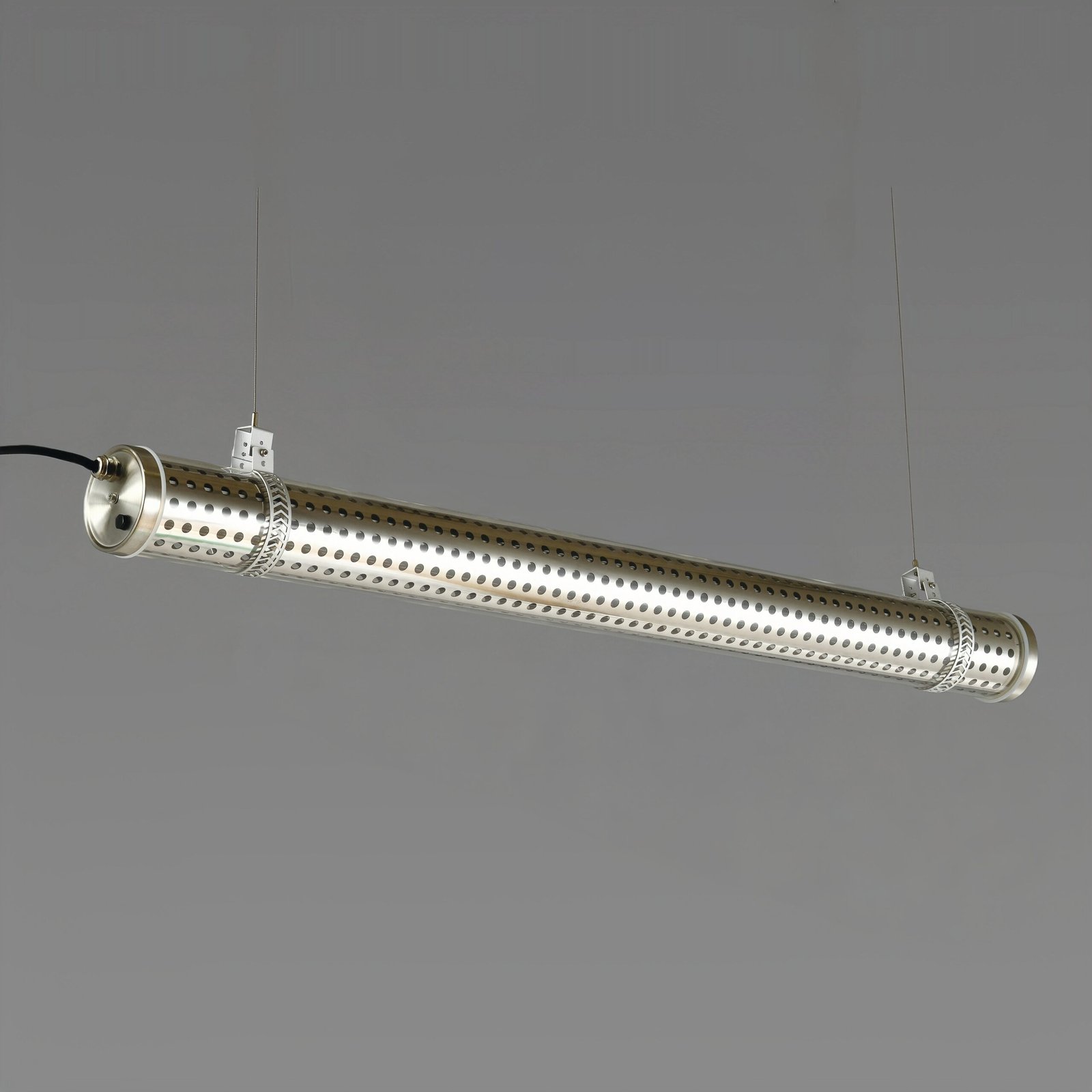

Perfo 360
Architectural tubular luminaire with integrated perforated structure
Perfo 360 is designed for architectural and commercial projects requiring flexible light emission and consistent application across multiple spaces.
It supports single-sided, double-sided, and full 360° emission, allowing the same luminaire family to be specified across circulation areas, hospitality spaces, retail interiors, and feature zones while adapting to different lighting functions.

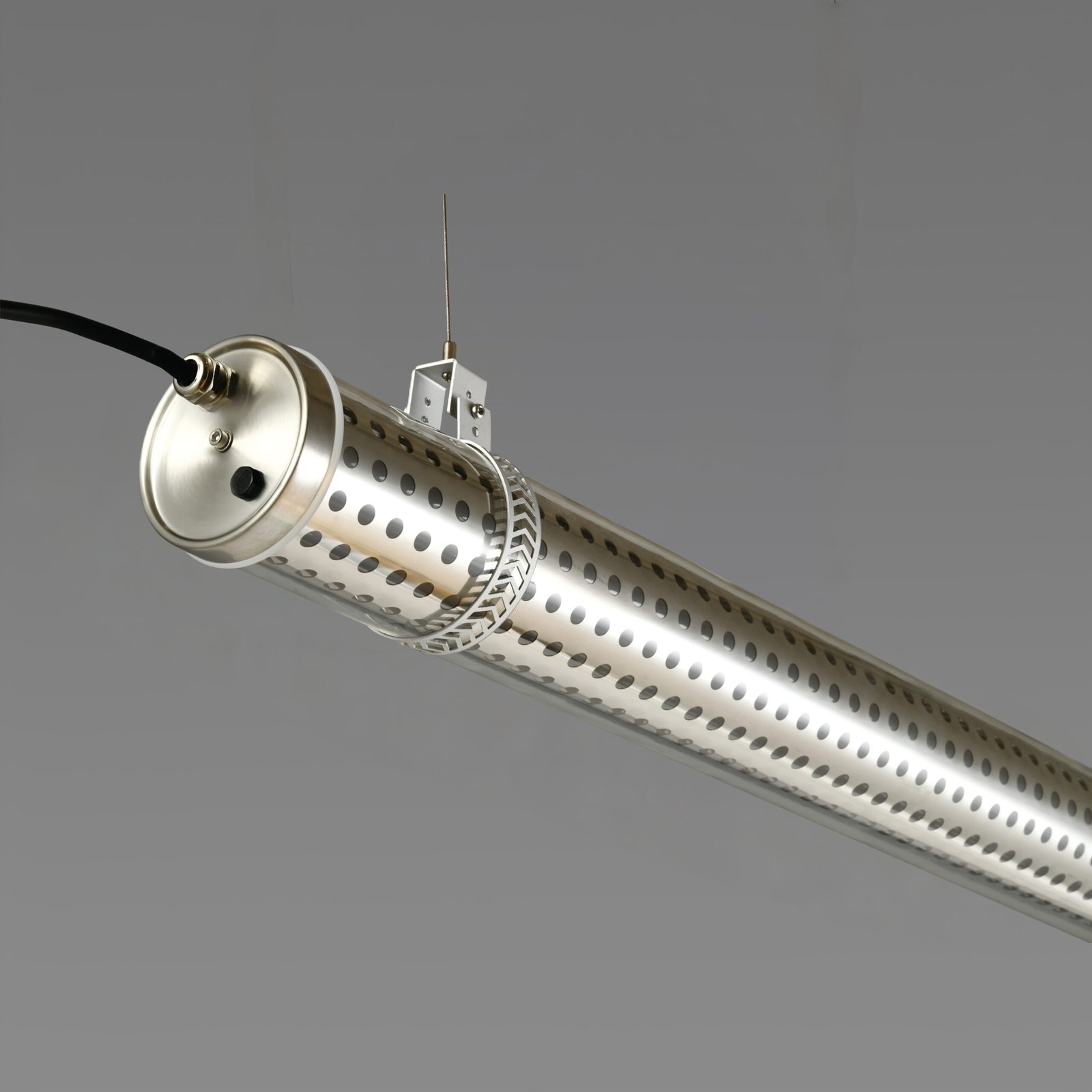

The defining feature of Perfo 360 is its integrated perforated stainless steel insert inside the PC tube.
This precision-perforated structure controls light distribution, reduces direct glare, and partially shields the LED source, delivering stable and comfortable illumination with a clear architectural expression.
Perfo 360 is available in Ø70 mm and Ø100 mm diameters, with standard lengths ranging from 300 mm to 1500 mm.
These options enable seamless integration into corridors, ceiling systems, linear layouts, and architectural modules without additional customization risk.
The PC tubular diffuser, working in combination with the internal perforated metal insert, ensures uniform luminous distribution while maintaining controlled brightness and visual comfort across different scales of space.
Perfo 360 supports suspended, ceiling-mounted, and wall-mounted installation, using dedicated mounting accessories to ensure clean integration, secure fixing, and efficient on-site installation.
Built with durable materials, precise metal detailing, and a sealed construction, Perfo 360 is rated IP67 for protection against dust and water ingress and features an IK10-rated tubular housing for impact resistance.
It is suitable for indoor, outdoor, and high-traffic environments, ensuring reliable long-term performance in demanding project conditions.

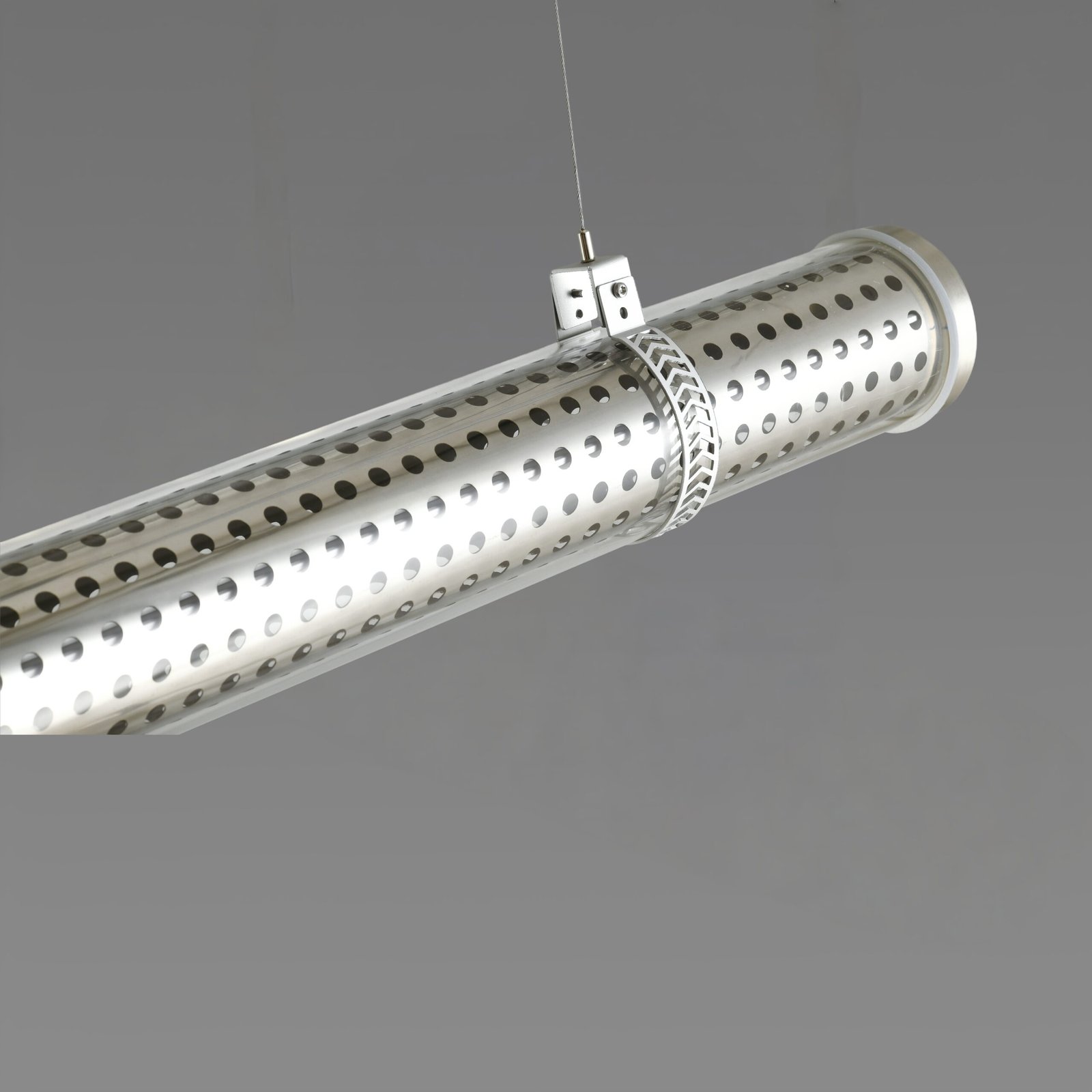

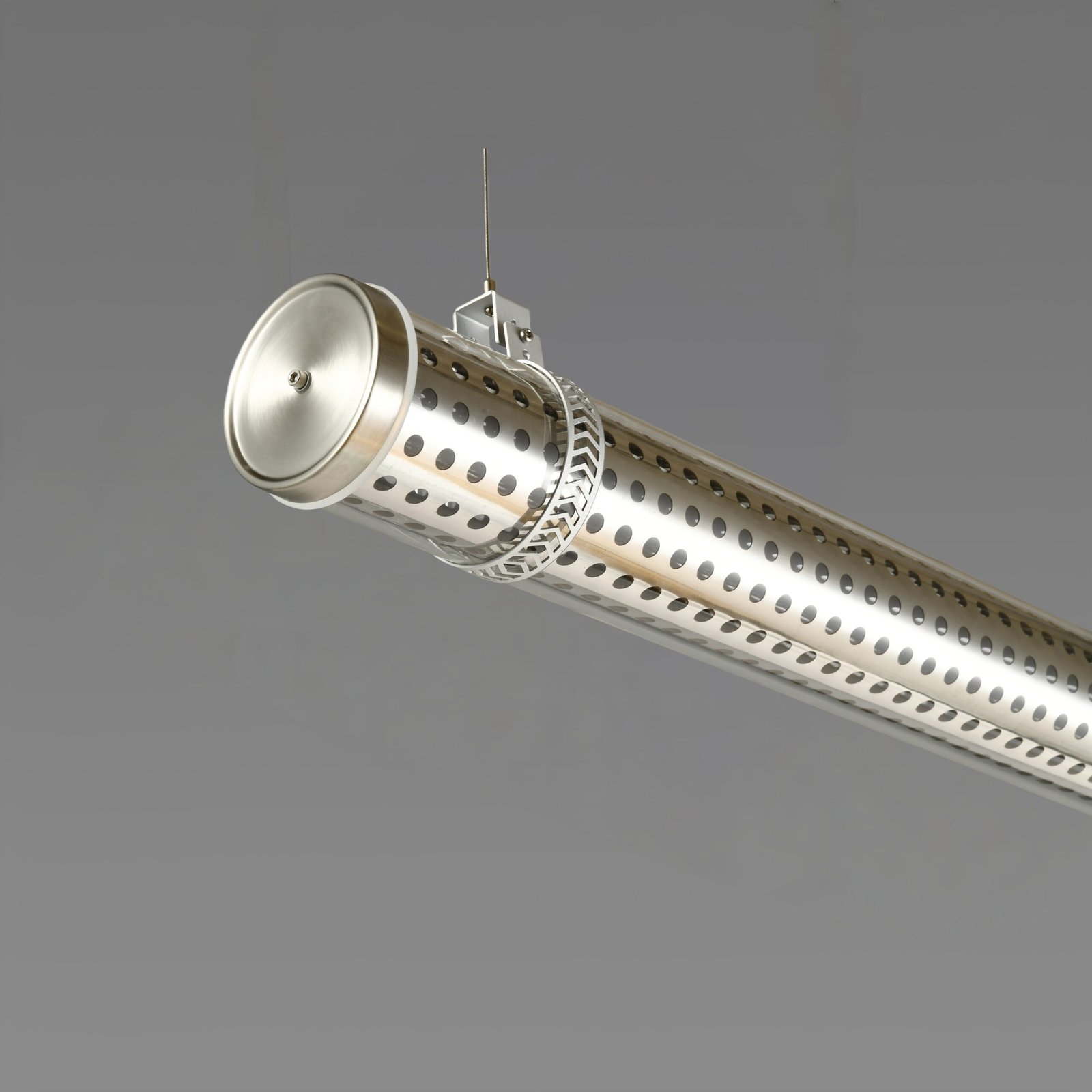

Controlled lighting with perforated glare control
Perfo 360 uses an integrated perforated stainless steel insert to control light distribution, reduce glare, and limit direct view of the LED source.

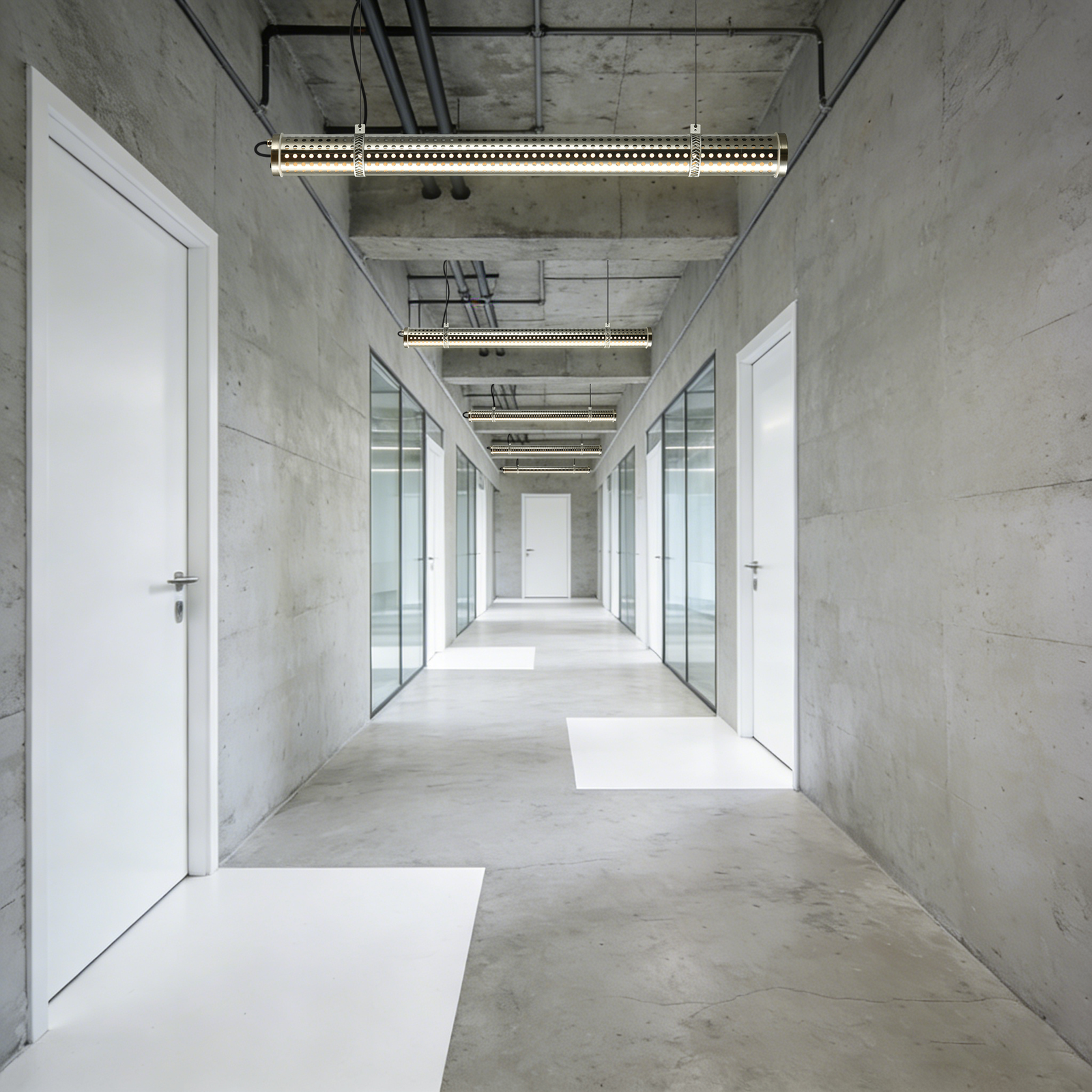

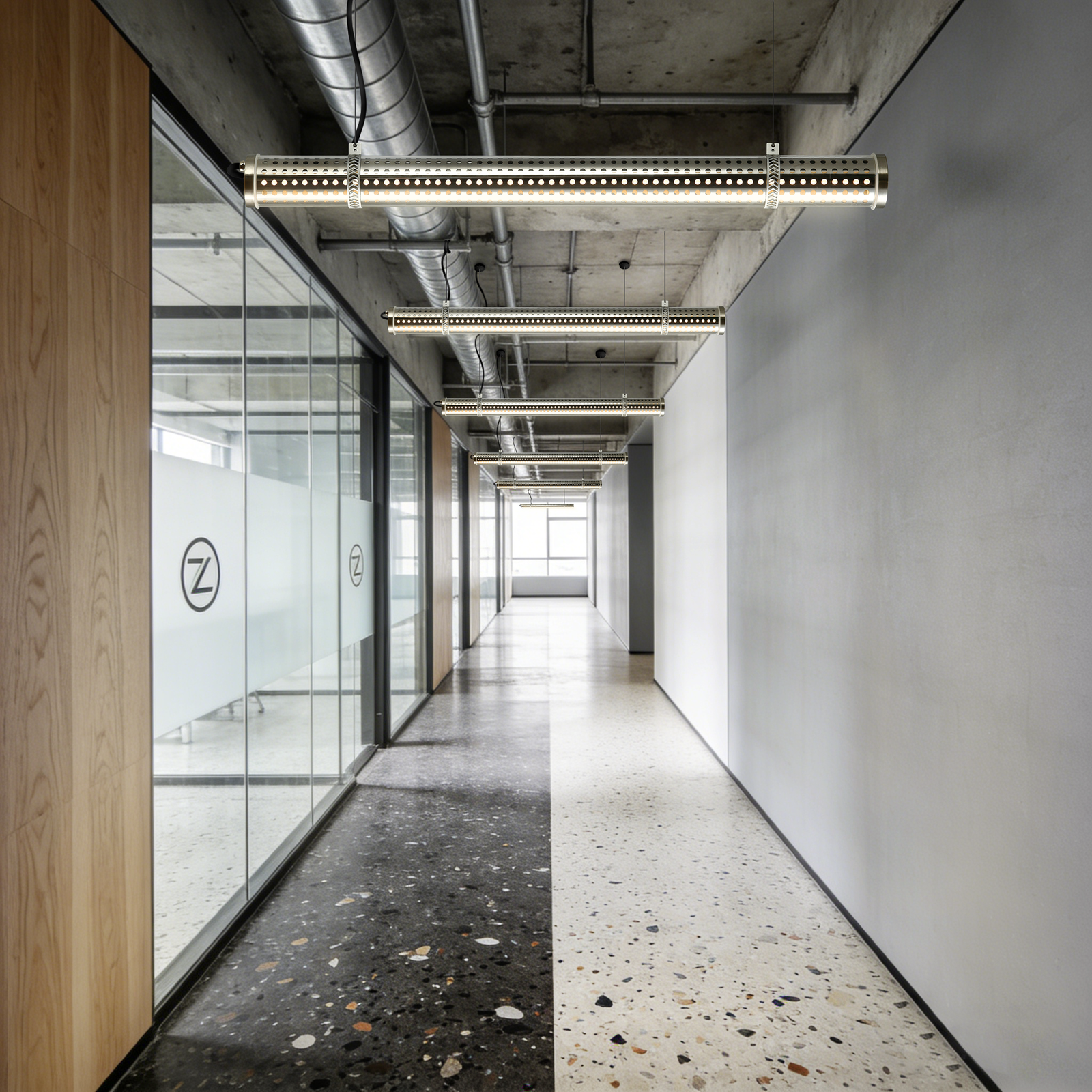

Suitable for circulation areas and architectural spaces where visual comfort and controlled illumination are required.

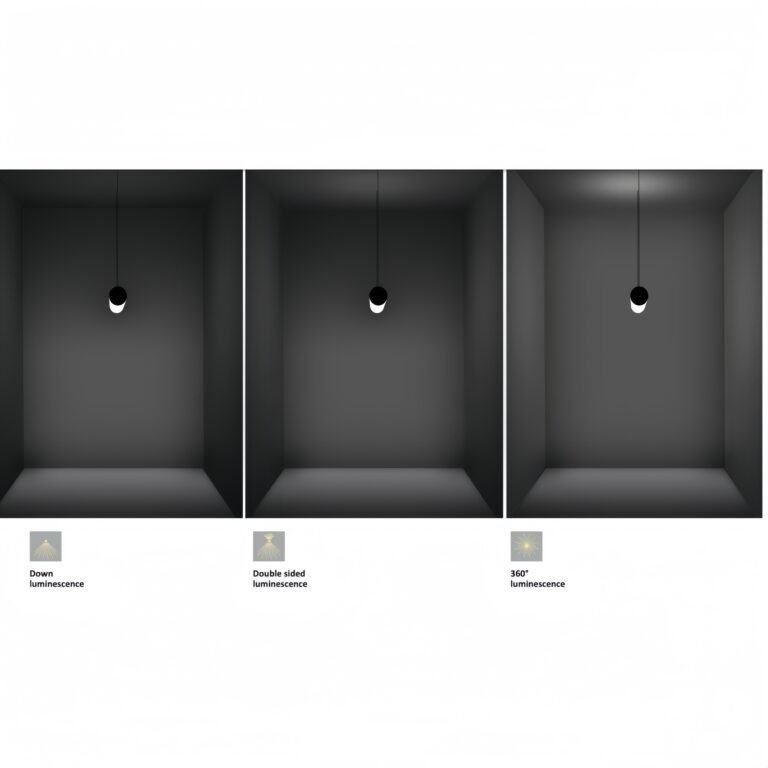

Single-sided, double-sided and 360° emission options
Perfo 360 supports single-sided, double-sided, and full 360° emission configurations, allowing the same luminaire family to be specified for different lighting functions within a project.
This flexibility enables consistent design while adapting to varying spatial and illumination requirements.
Built to last
Perfo 360 features a sealed construction rated IP67, providing protection against dust and water ingress for reliable indoor and outdoor use.
Built with durable materials, including aluminum components and an IK10-rated PC tubular housing, it is designed to withstand impact, UV exposure, and demanding environmental conditions.

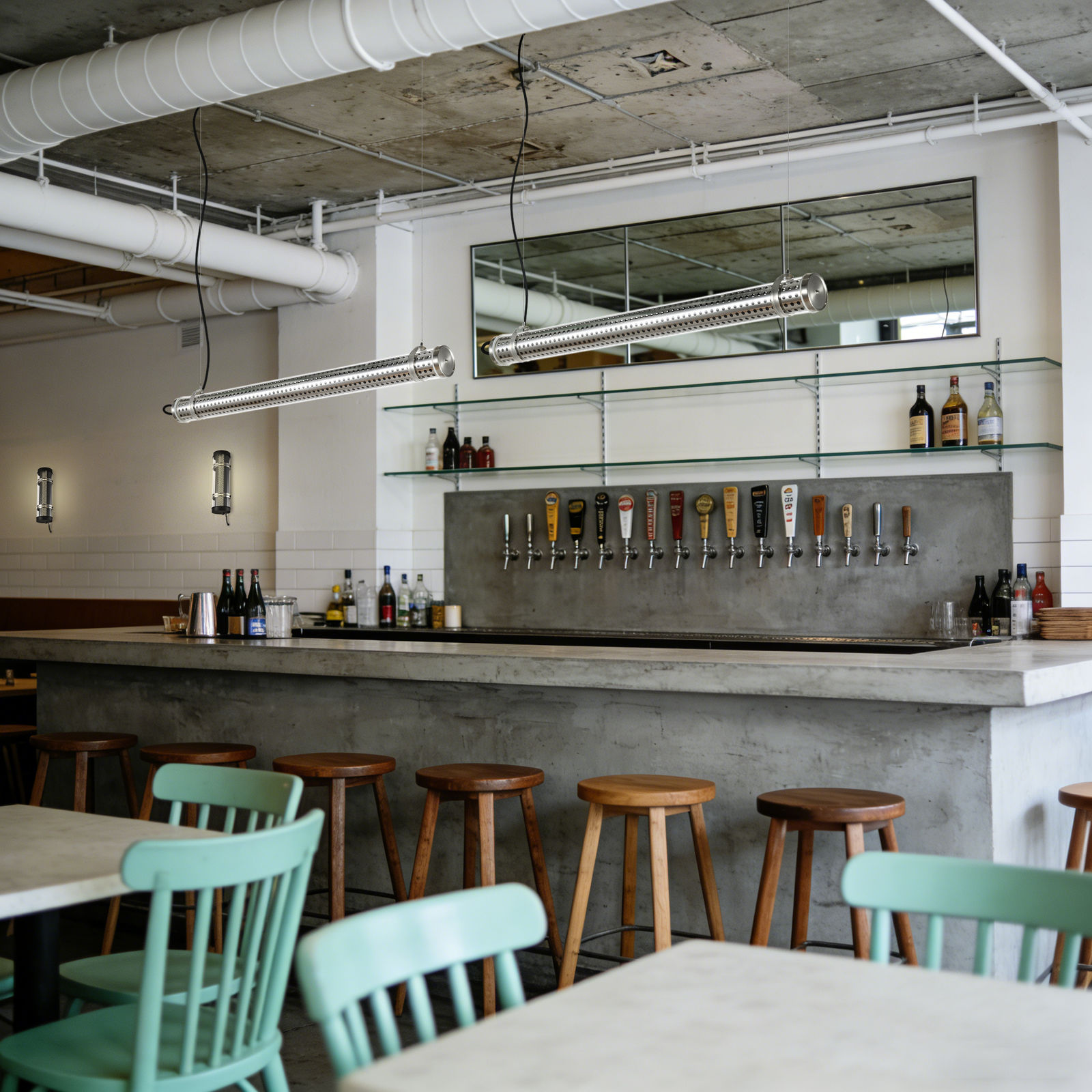

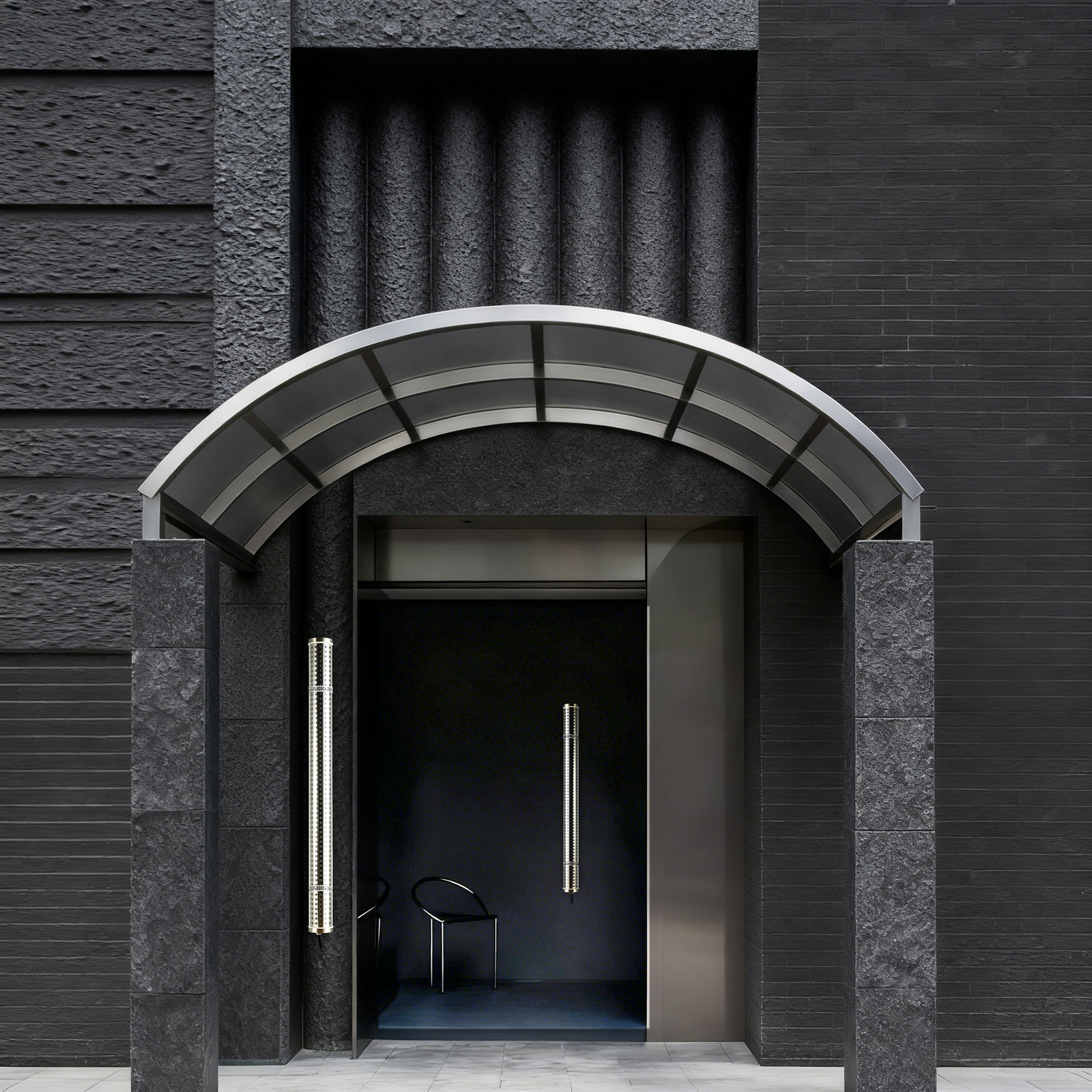

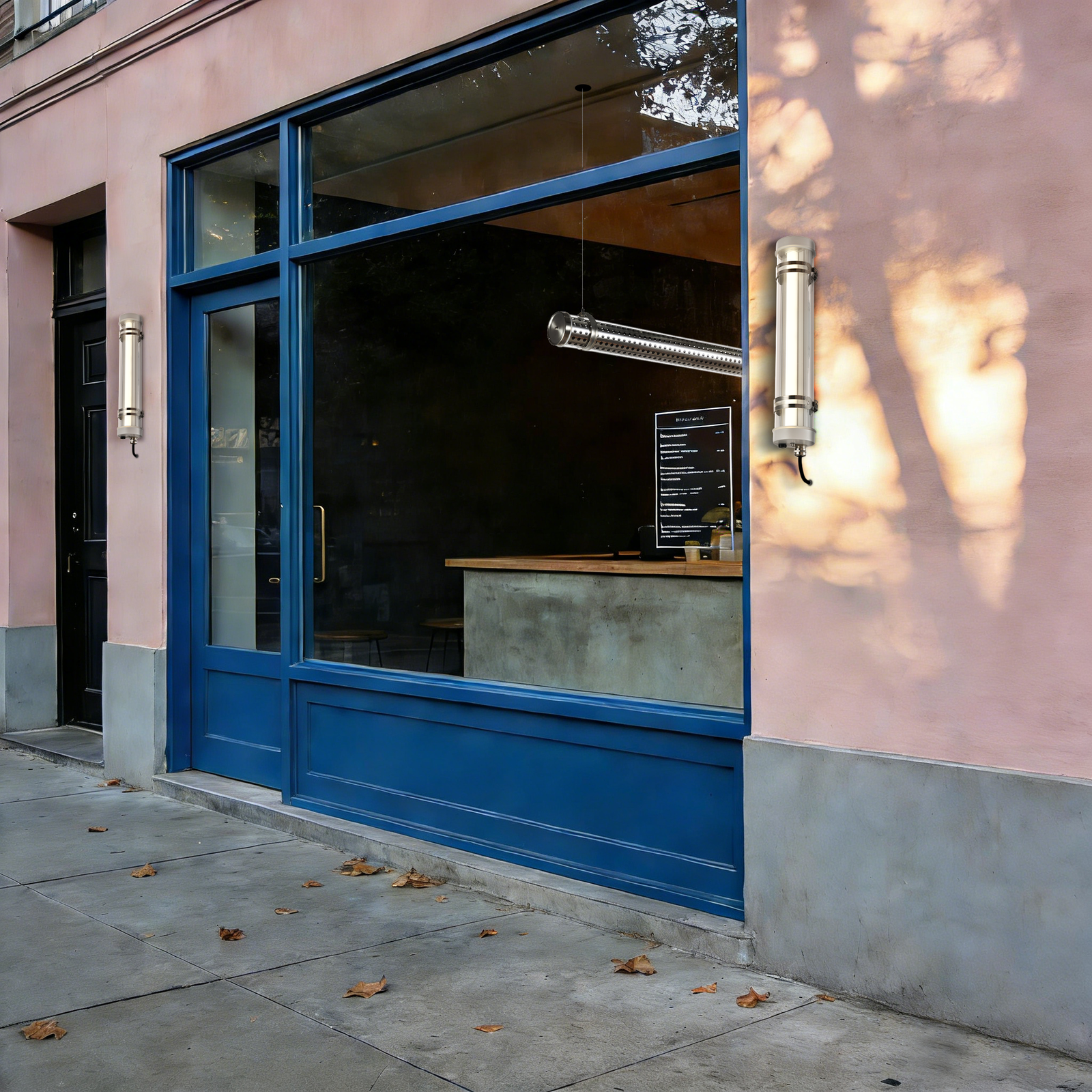

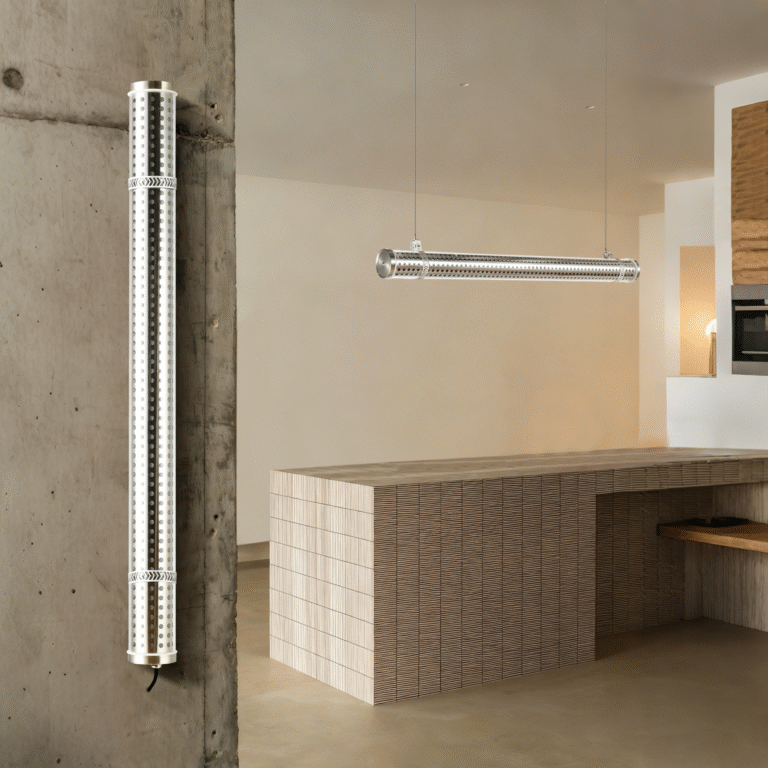

Flexible installation
Perfo 360 supports wall-mounted, ceiling-mounted, and suspended installation, allowing it to respond flexibly to different architectural layouts and design intents.

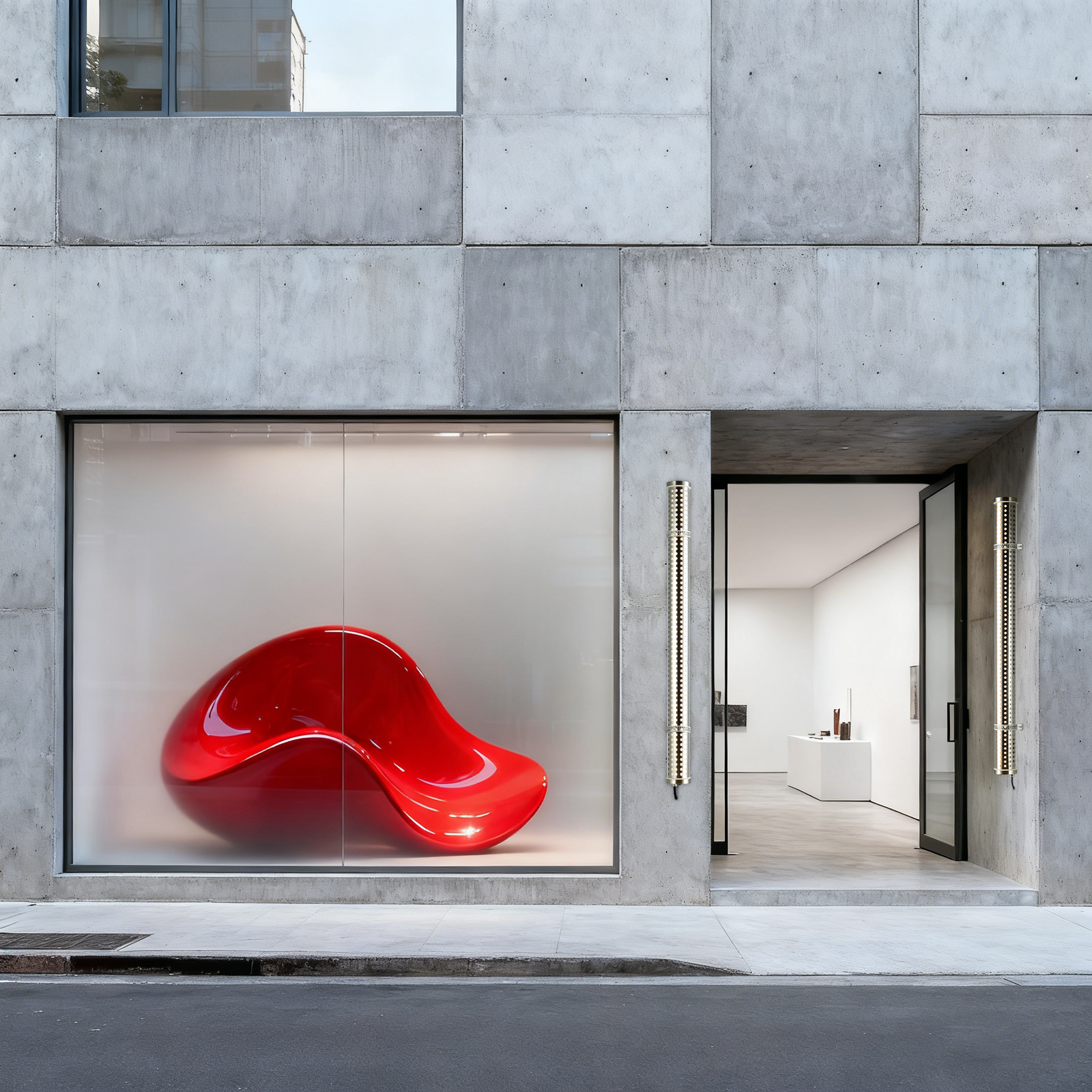

The luminaire can be installed as a single standalone element or combined into linear or repeated arrangements, enabling cohesive lighting compositions across corridors, feature walls, façades, and large architectural surfaces.
TECHNICAL SPECIFICATIONS
Technical characteristics
Light source
LED source: High-efficiency SMD2835 LEDs
CRI: ≥80 (CRI 90 optional)
MacAdam: ≤3 SDCM
Lifetime: 50,000 h (L80/B10 @ 25°C)
____________________________________________________________________________
Optical system
Optical system: Integrated perforated stainless steel insert
Light distribution: Single-sided emission (standard)
Option: Double-sided emission / 360° emission
Glare control: Reduced direct view of LED source
____________________________________________________________________________
Electrical
Input voltage: 220–240 V AC (100–277 V AC optional), 50/60 Hz
Power factor: >0.95
Power range: 10–70 W (depending on length and output)
Control options: ON/OFF · TRIAC · 0–10 V · DALI (DT6/DT8 on request)
Options: Sensor version / Emergency version
Electrical class: Class I
____________________________________________________________________________
Color temperature
CCT: 2700K / 3000K / 4000K / 5000K / 6000K
Option: Tunable White (on request)
____________________________________________________________________________
Dimensions
Tube diameter: Ø70 mm / Ø100 mm
Custom lengths available (300–1500 mm)
____________________________________________________________________________
Operating temperature
Operating temperature: −25°C to +45°C
Installation and maintenance
Connection
Sealed cable entry with stainless steel cable gland
Cable range: Ø5–14 mm
Disconnectable terminal block
Up to 3 × 2.5 mm² conductors
____________________________________________________________________________
Mounting
2 Mounting brackets with adjustable spacing
Wall, ceiling or suspended installation
Suspension kits available
Materials
Housing
Co-extruded polycarbonate (PC) or PMMA tube
UV-stable, impact-resistant
For indoor and outdoor use
____________________________________________________________________________
Structure
PC housing
perforated stainless steel insert
Stainless steel end caps
Stainless steel fixing components
____________________________________________________________________________
Customization
Custom lengths available on request
Multiple mounting bracket options (project-specific)
Surface finishes: matte textured / smooth gloss
Control options configurable per project (ON/OFF, TRIAC, 0–10 V, DALI; sensor / emergency on request)
Single-sided / double-sided emission options
Standards & protection
Ingress protection
IP67 standard
IP69K optional
____________________________________________________________________________
Impact resistance
IK10 (PC)
IK08 (PMMA)
____________________________________________________________________________
Fire performance
Glow-wire test: 960°C
____________________________________________________________________________
Warranty
5-Year whole fixture
____________________________________________________________________________
Applications
Architectural indoor and outdoor environments

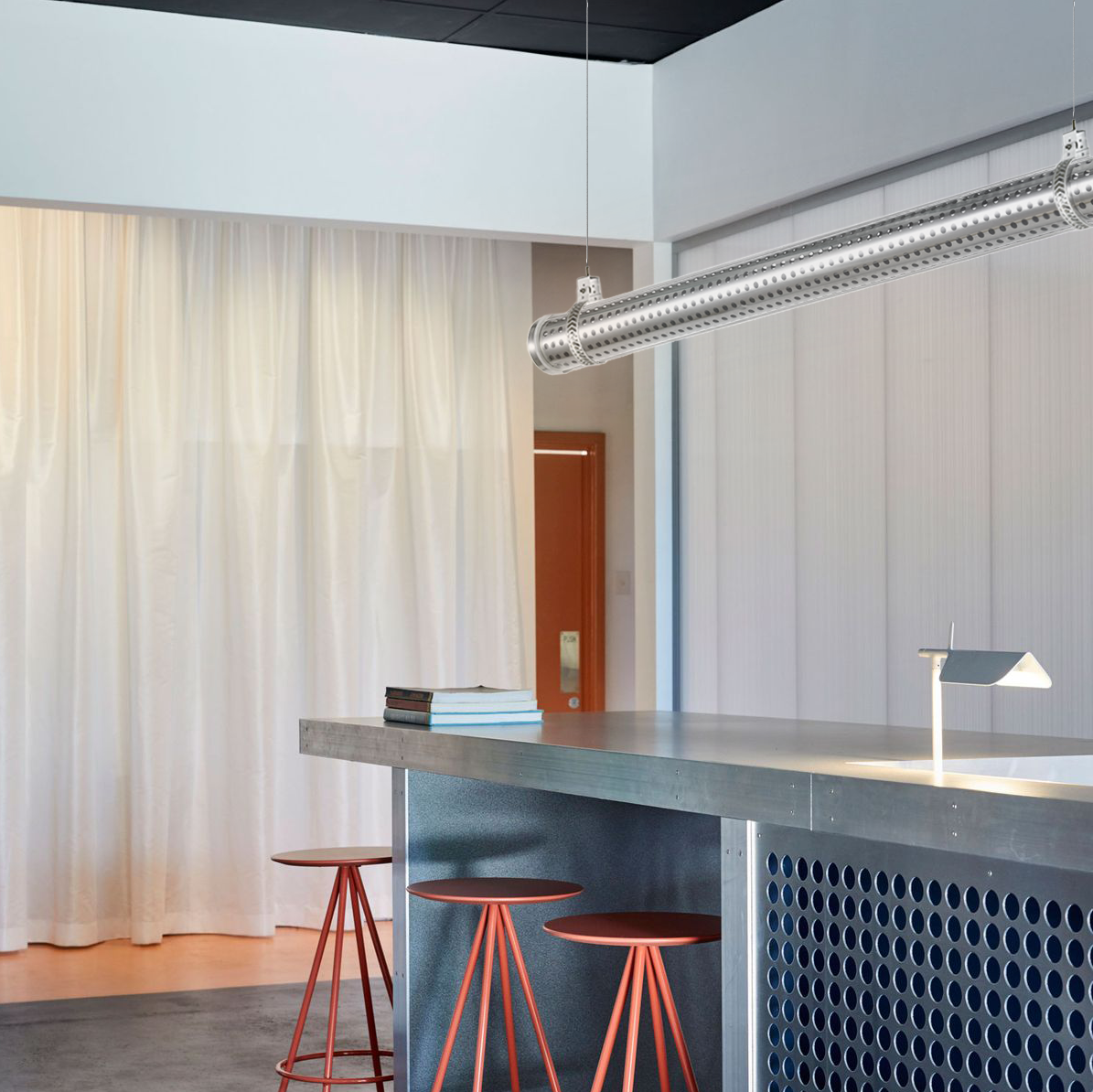

ARCHITECTURAL APPLICATIONS
SUSTAINABILITY STATEMENT
Designed with longevity and responsibility in mind.
Perfo 360 is built with an integrated LED system and a robust, project-grade structure, ensuring reliable performance over an extended service life.
The combination of a durable tubular housing, integrated perforated stainless steel insert, and precision-engineered metal components supports stable operation in demanding architectural and commercial environments.
With IP67 ingress protection and an IK10-rated PC housing, Perfo 360 is suitable for long-term indoor and outdoor applications.
The integrated LED light source is energy-efficient and environmentally responsible, containing no mercury, no ultraviolet (UV), and no infrared (IR) radiation, making it safe for occupants and appropriate for sensitive architectural and interior spaces.
By prioritizing durability, optical stability, and high protection ratings, Perfo 360 reduces maintenance requirements and limits premature replacement over its lifecycle.
This approach supports sustainable building strategies by lowering total cost of ownership while maintaining consistent lighting performance over time.
