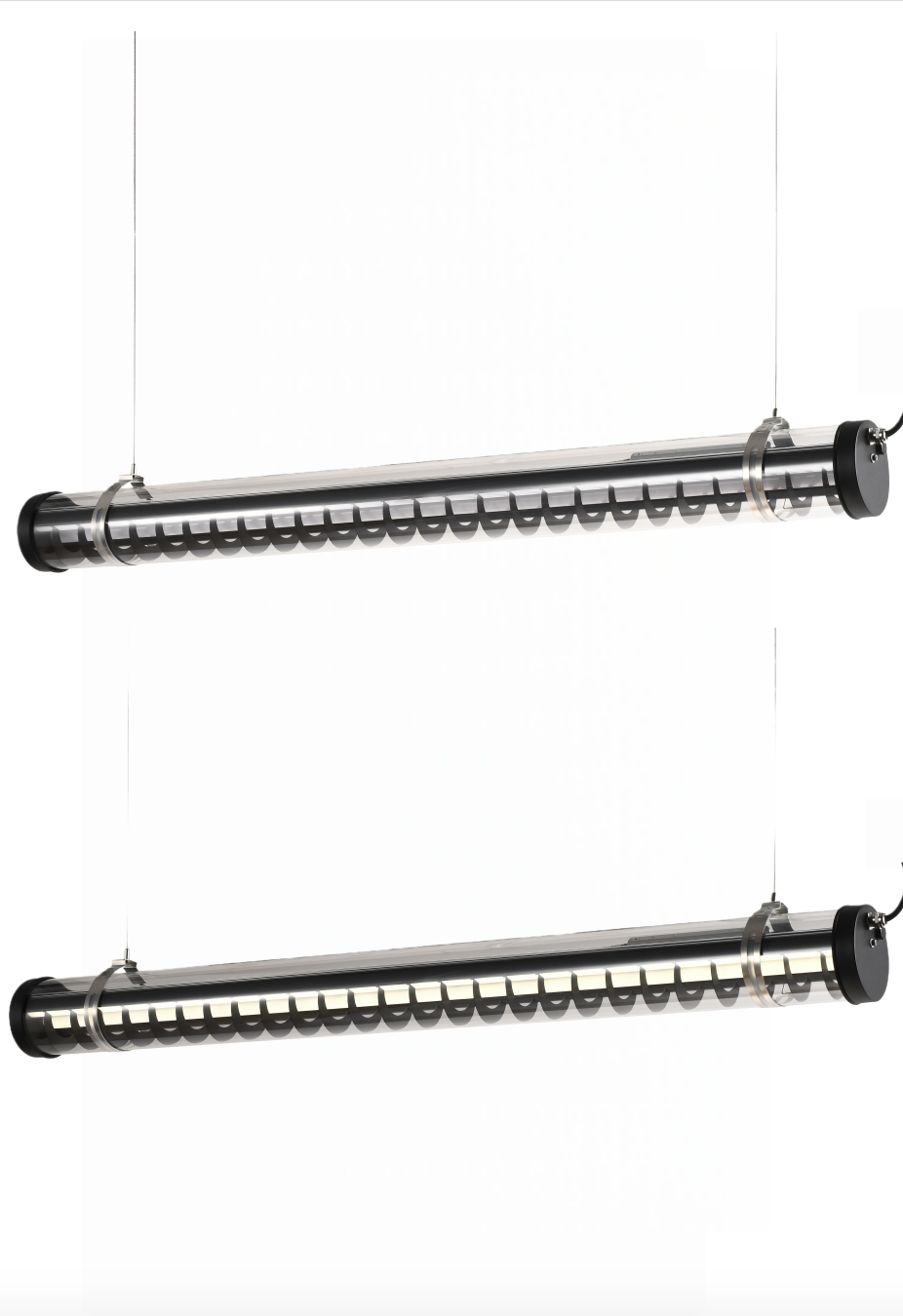

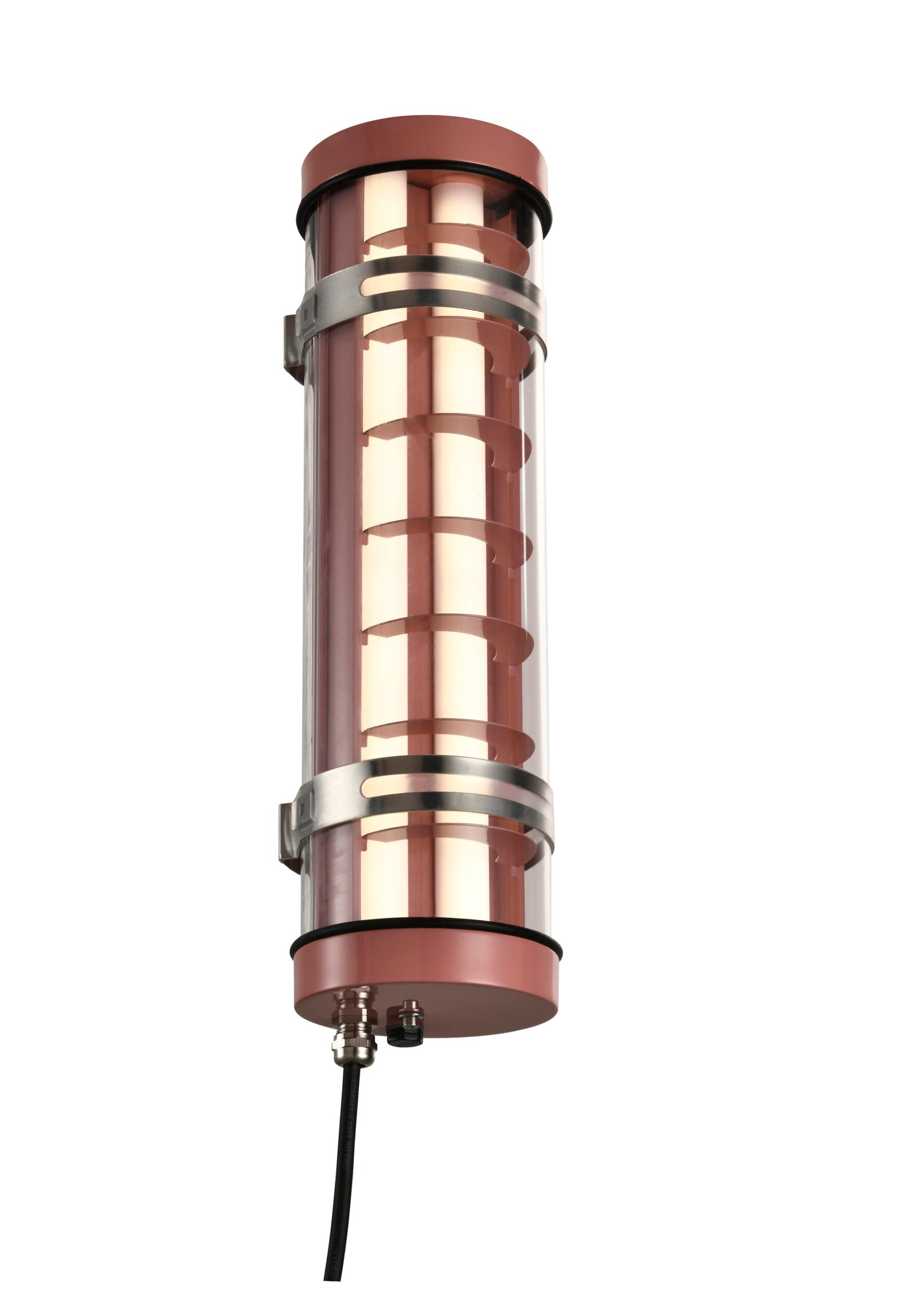

Rosa
Architectural Tubular Luminaire
Key Features
Longitudinal aluminum louver design — precision longitudinal aluminum louvers create a refined architectural rhythm while helping shield the LED source from direct view for improved visual comfort and glare control.
Custom colors & finishes — available in multiple colors (custom RAL on request) with surface options including matte textured and smooth gloss.
Directional light emission — standard single-sided light output, with optional double-sided emission available for specific project requirements.
Two diameters — Ø70 mm, and Ø100 mm.
Custom lengths — configurable from 300 mm up to 1500 mm.

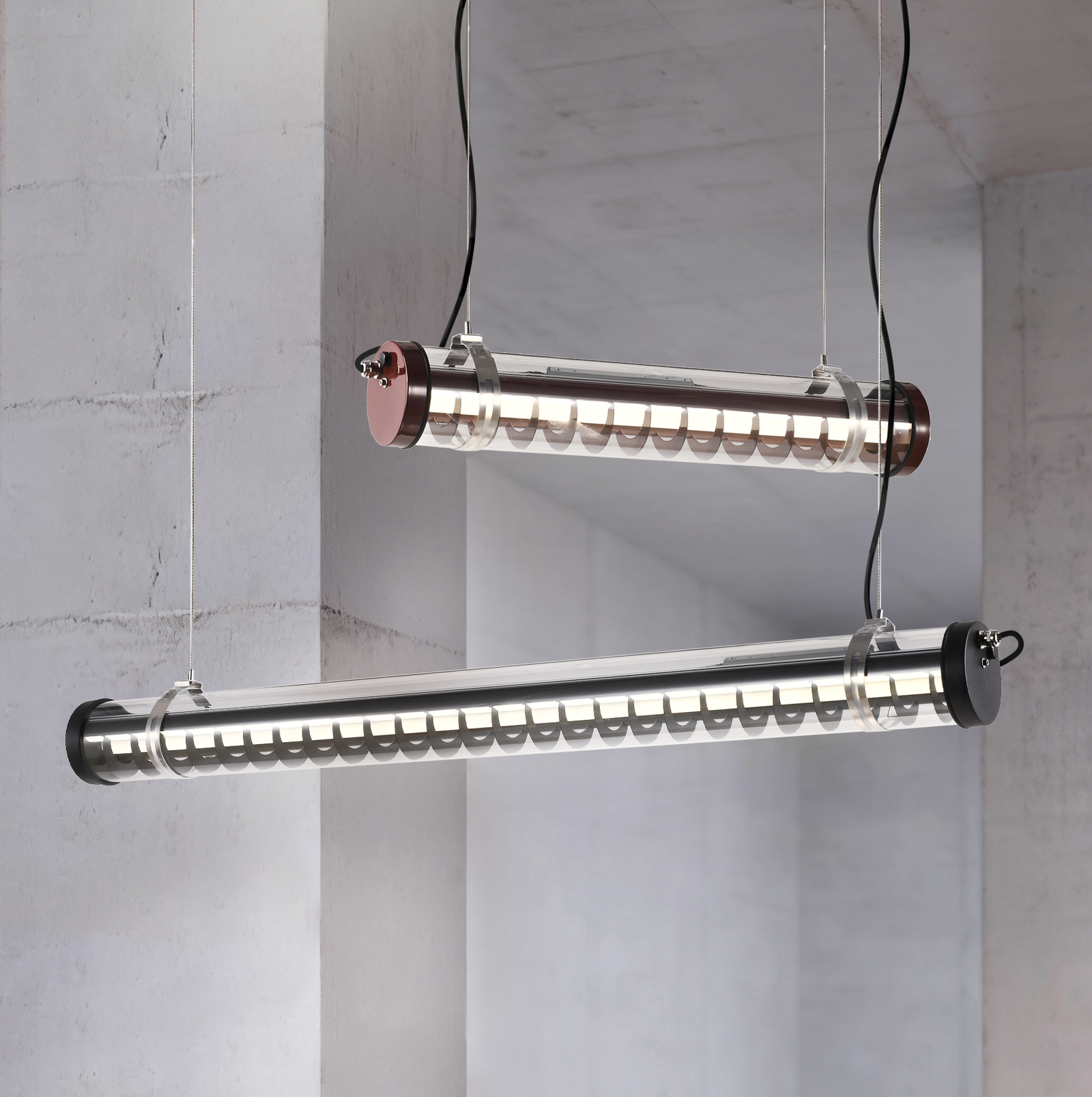

Flexible mounting options — wall-mounted, ceiling-mounted, suspended with dedicated mounting accessories.
CCT options — fixed 2700K / 3000K /4000K / 5000K / 6000K
CCT tunable versions — tunable white or switchable CCT options available.
Advanced control — ON/OFF, TRIAC, 0–10V, DALI options available.
Microwave motion sensor — optional PIR / microwave detection
Emergency versions — maintained & non-maintained emergency options.
PC tubular housing — high-transparency Covestro (Bayer) polycarbonate, UV-resistant and anti-aging.
High protection — IP67 for demanding or semi-outdoor environments.
Impact-resistant — IK10 structural robustness.
Fire performance — 960 °C glow-wire tested, compliant with IEC safety standards.
5-year system warranty — supporting long-term reliability for projects.
Rosa

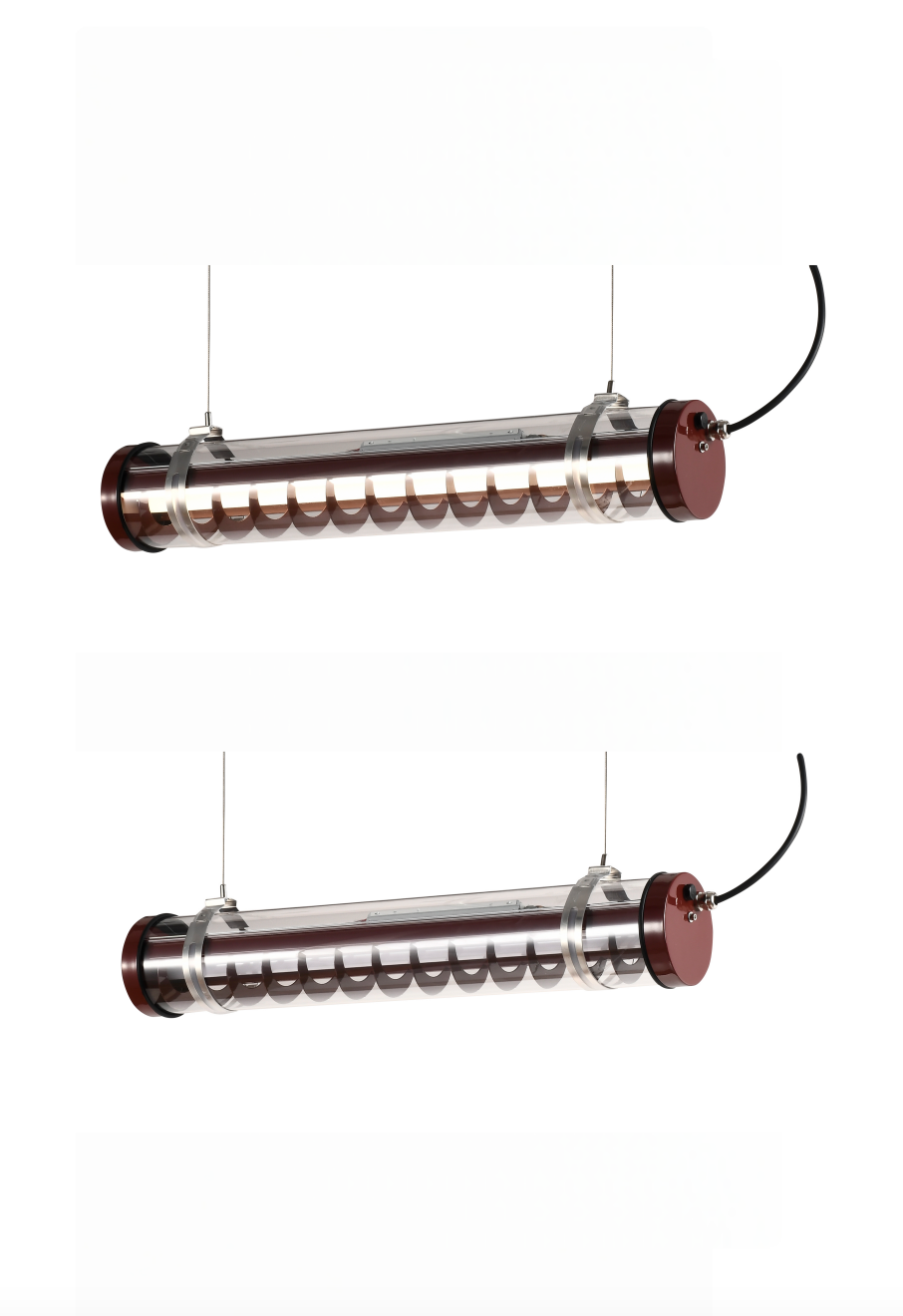

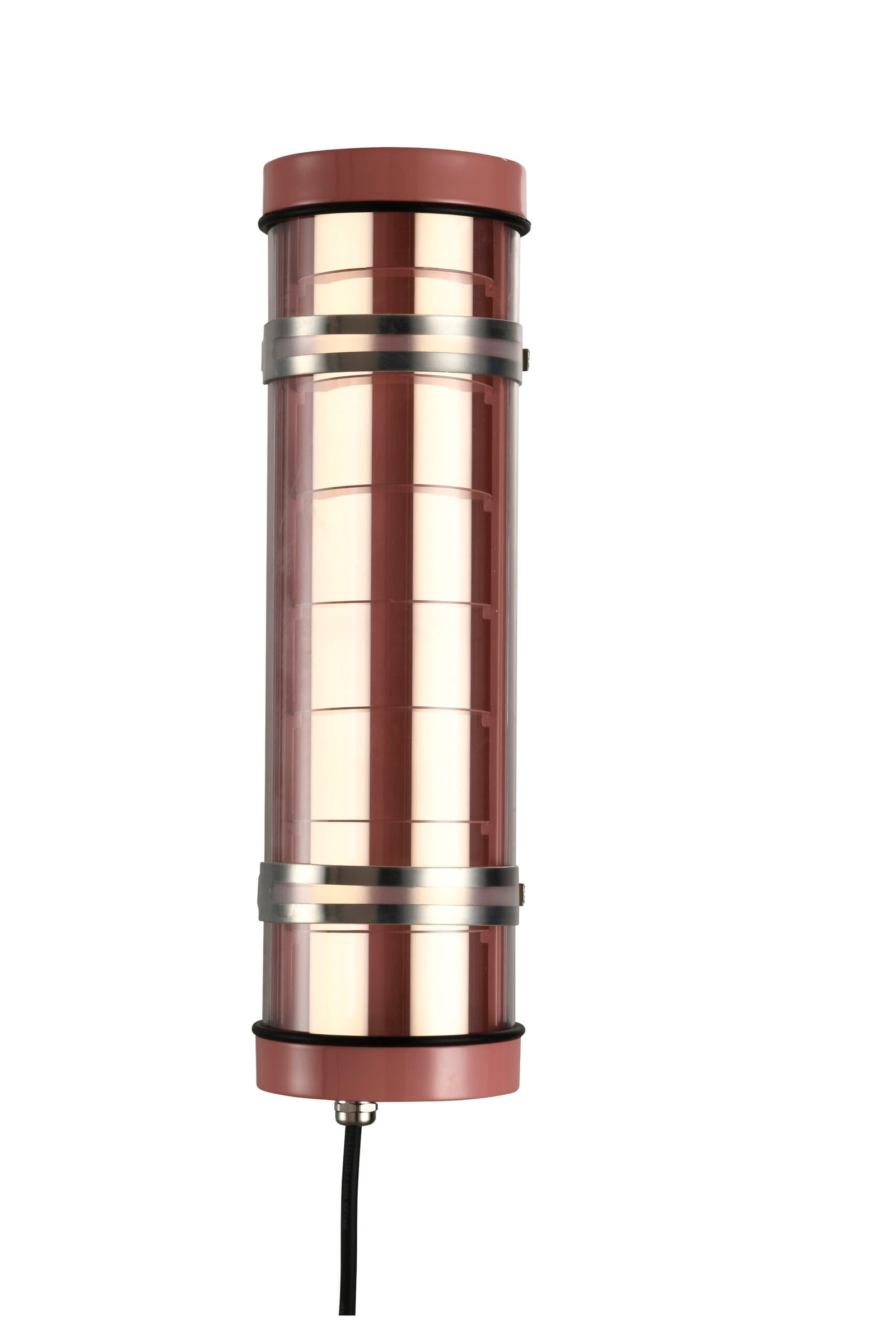

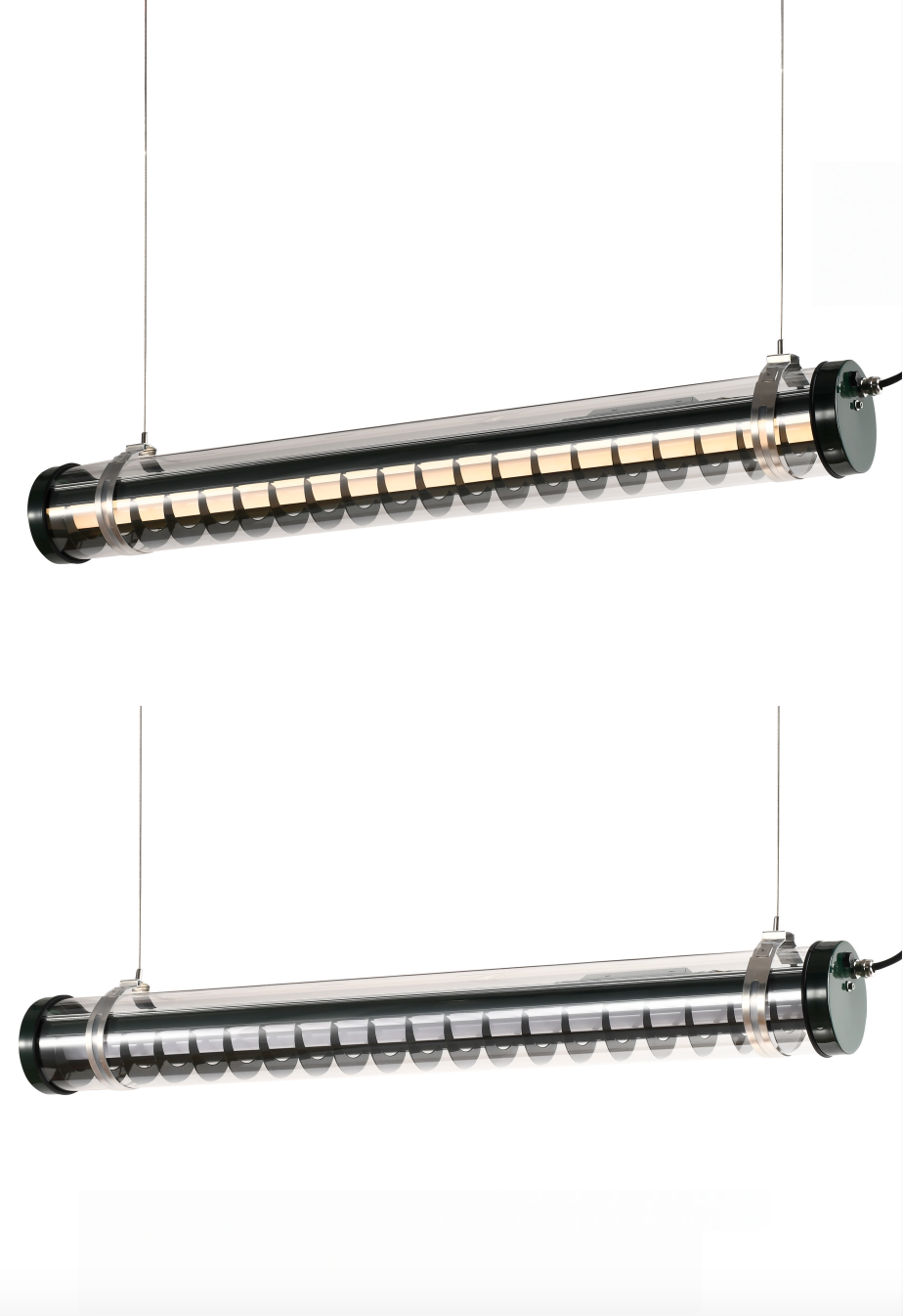

Architectural tubular luminaire with controlled longitudinal louver optics
Rosa is designed for flexible vertical or horizontal installation across a wide range of architectural and commercial applications, from circulation routes and feature walls to public spaces where controlled, comfortable lighting is essential. It can be finished in a wide range of colors (custom RAL on request) to align with the project palette.
Its defining feature is the longitudinal aluminum louver insert, which adds a refined architectural rhythm while helping shield the LED source from direct view. The result is efficient illumination with improved visual comfort and a clean, structured appearance.
Standard versions provide single-sided directional light, while double-sided emission can be specified to suit different spatial layouts and lighting requirements.
Balancing visual comfort and luminous control, Rosa maintains consistent lighting quality across both compact and open interiors. The high-transparency tubular PC housing enhances optical clarity, allowing the louver pattern, materials, and light to read cleanly in the space.
Built with a durable, sealed construction and refined metal detailing, Rosa combines long-term reliability with architectural expression. With IP67 protection and IK10 impact resistance, it is well-suited for demanding indoor environments, covered semi-outdoor areas, and outdoor locations where performance and aesthetics must work as one.
CORE ADVANTAGES

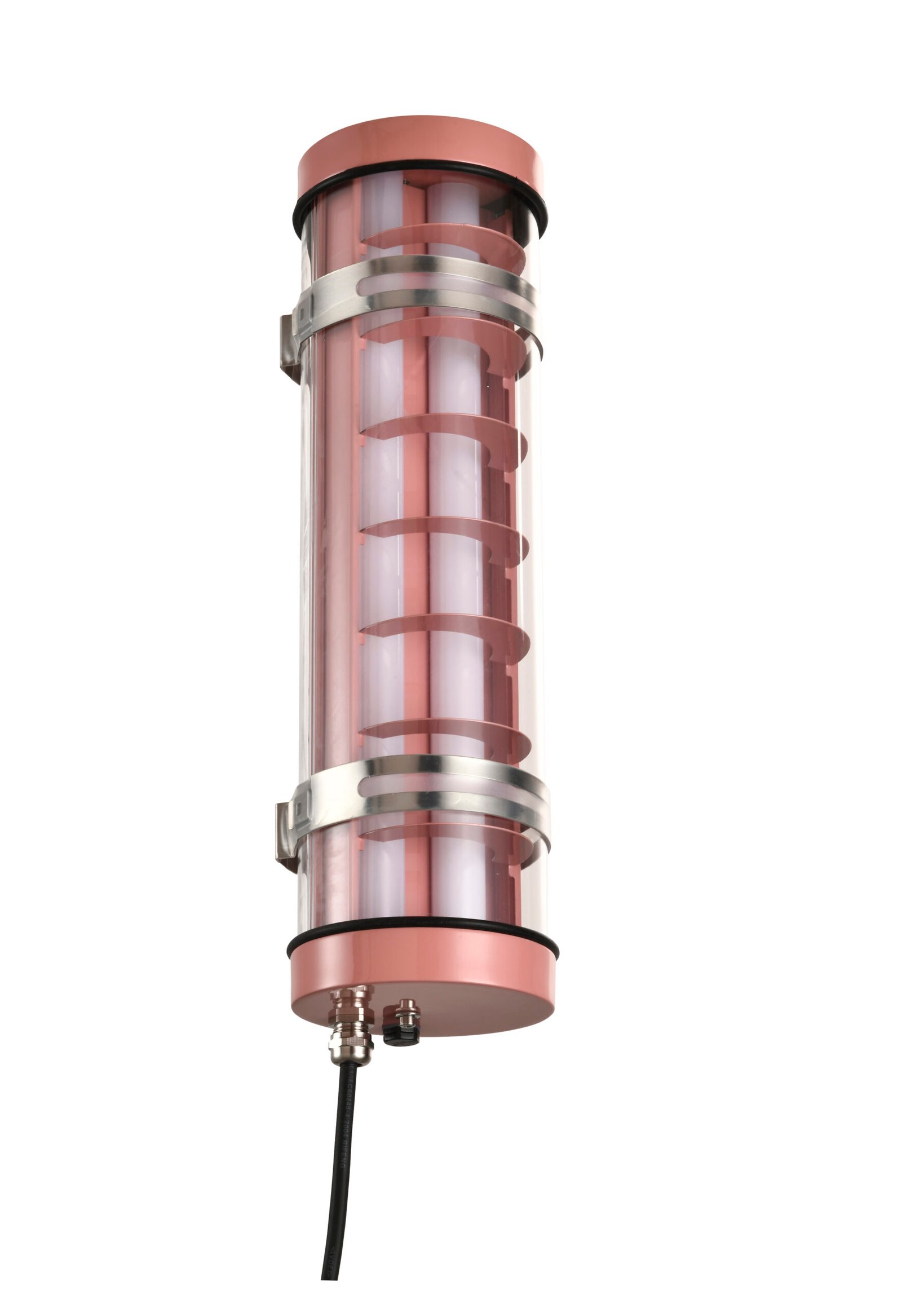

Directional lighting with longitudinal louver glare control
Precision-engineered longitudinal aluminum louvers help reduce direct view of the LED source and improve visual comfort, delivering efficient illumination with controlled glare.
Single-sided or double-sided emission options
Available in single-sided configuration as standard, with double-sided versions for projects requiring balanced light distribution on both sides.
Ideal for corridors, façades, circulation zones and architectural features.
Two diameters: Ø70 mm / Ø100 mm
Ø70 / Ø100 options allow Rosa to scale from refined accents to stronger architectural statements.
Custom lengths up to 3000 mm
Length configurable from 300 mm to 1500 mm, enabling continuous lines, repeated compositions or standalone elements aligned with architectural geometry.
Flexible mounting solutions for projects
Supports wall-mounted, ceiling-mounted, suspended, using dedicated mounting accessories designed for professional installation and long-term stability.
Custom colors & surface customization
Available in multiple colors with custom RAL on request, with surface options including matte textured and smooth gloss.
Robust construction for public environments
PC tubular housing combined with aluminum louvres and reinforced aluminum end caps.
Designed for durability, impact resistance and long-term use in public or high-traffic spaces.
High protection and safety standards
IP67 protection for indoor, semi-outdoor and covered exterior applications.
Impact resistance up to IK10 (PC).
960°C glow-wire tested, compliant with IEC safety requirements.
Advanced control & project-ready options
Compatible with ON/OFF, TRIAC, 0–10V, DALI systems.
Optional sensors and emergency versions available for commercial and safety-critical projects.
Lighting comfort
Rosa combines architectural clarity with visual comfort. The longitudinal aluminum louver insert limits direct glare from the LED source, delivering a soft, diffused light distribution with UGR < 22. This controlled emission subtly enhances floors, walls and ceilings, creating a calm, welcoming atmosphere for corridors and circulation areas where visual comfort is essential.

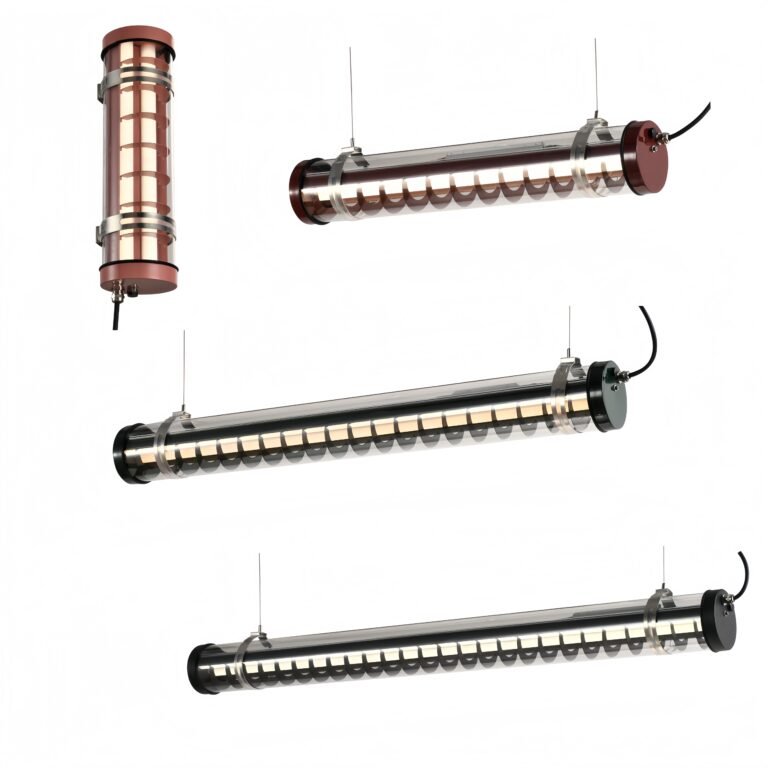

Atmosphere by design — custom colors & finishes
Available in multiple colors and finishes (custom RAL on request), allowing the luminaire to create the right mood and integrate seamlessly with different concepts.

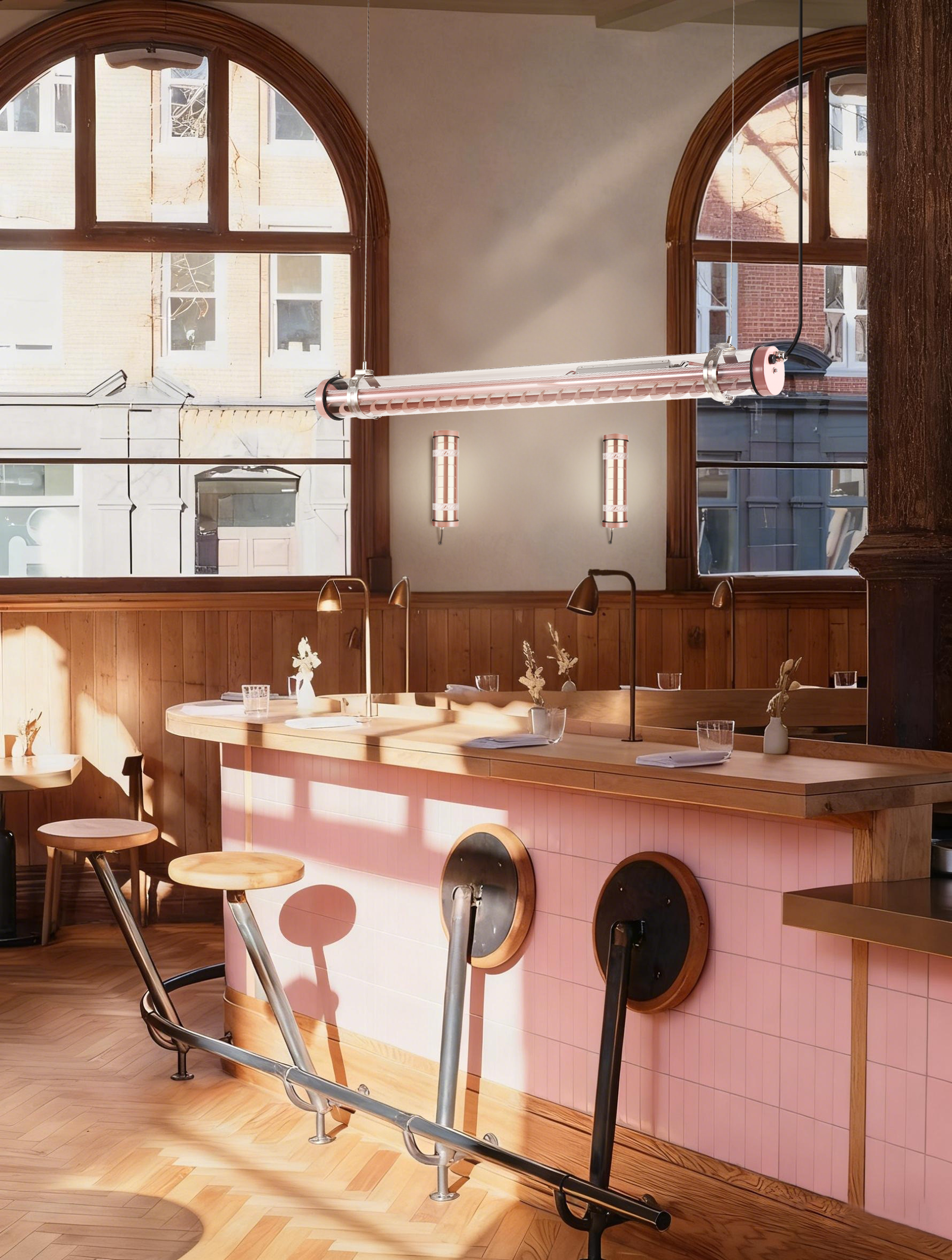

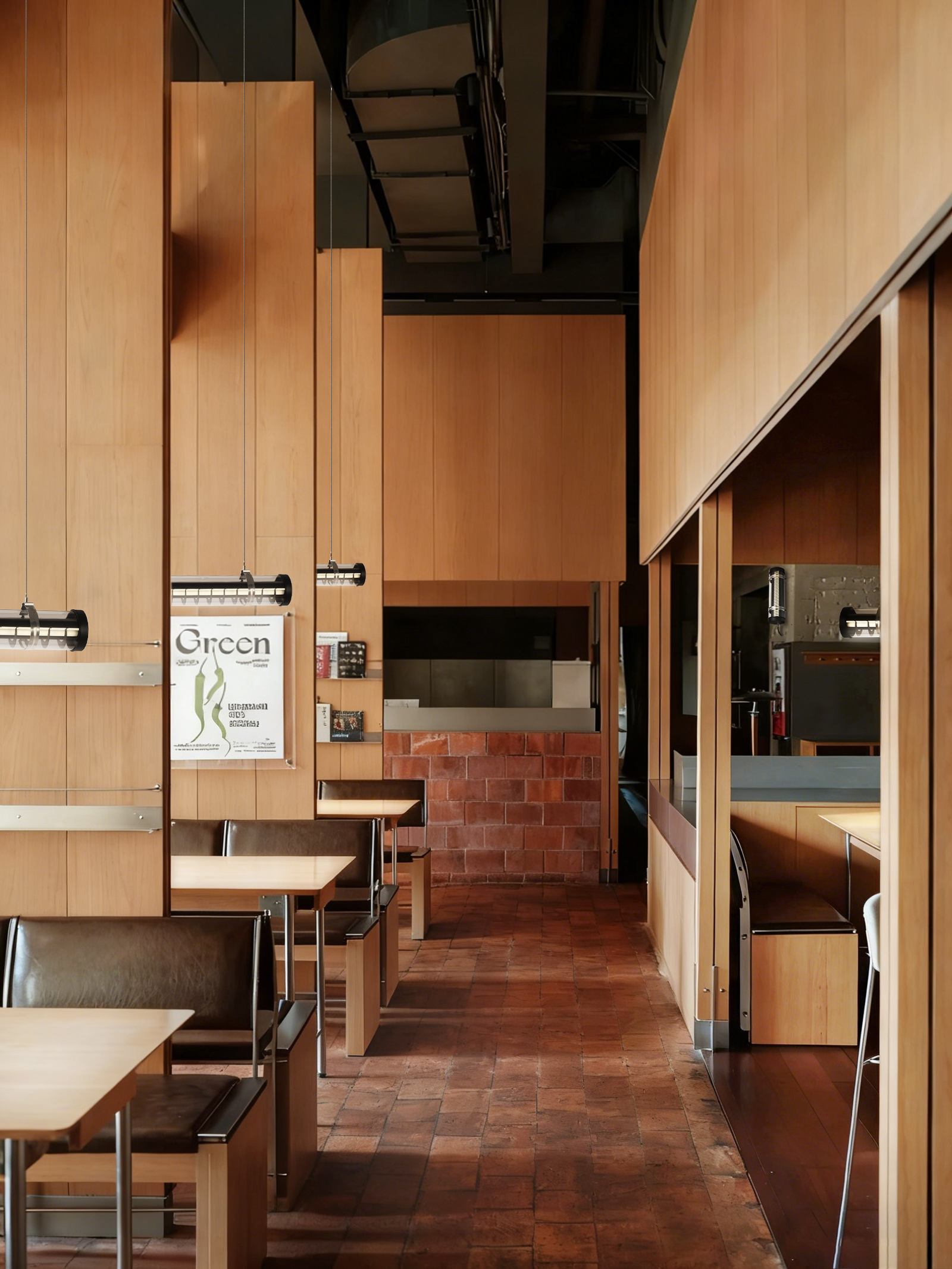

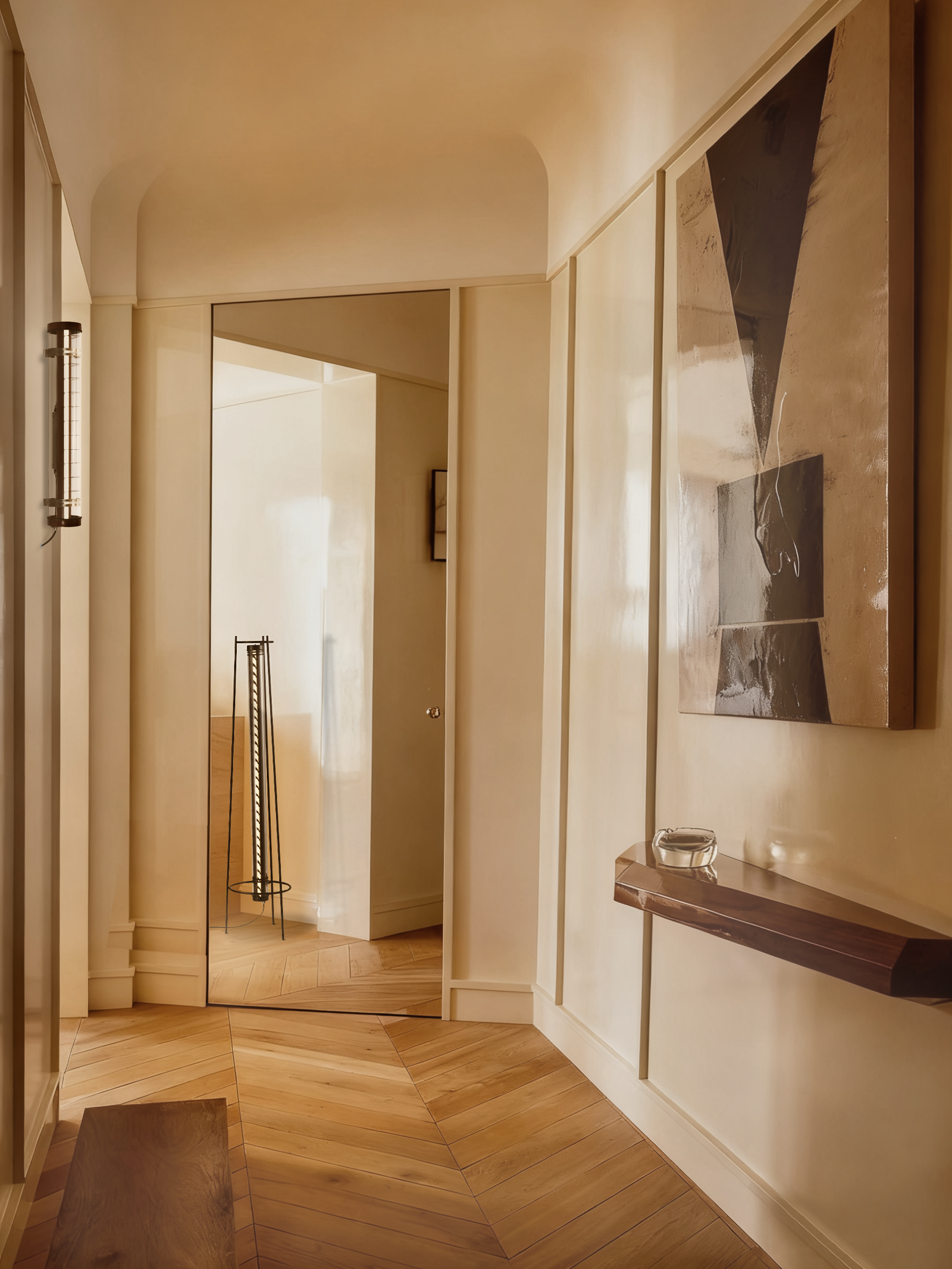

A versatile luminaire for multiple project scenarios
Rosa is designed for flexible specification across different applications, from feature walls and entrance zones to hospitality, retail and residential projects. It supports wall-mounted, ceiling-mounted or suspended installation, and can be used as a single statement piece or as part of a coordinated lighting layout to keep a consistent design language throughout the project.
Built to last
With a sealed construction and durable materials, Rosa is engineered for long-term performance in high-traffic areas. It can reach IP67 protection and IK10 impact resistance (PC), offering strong resistance to dust, water exposure and mechanical impact, supporting reliable operation and reduced maintenance over the fixture’s life cycle.
TECHNICAL SPECIFICATIONS
Technical characteristics
Light source
LED source: High-efficiency SMD2835 LEDs
CRI: ≥80 (CRI 90 optional)
MacAdam: ≤3 SDCM
Lifetime: 50,000 h (L80/B10 @ 25°C)
____________________________________________________________________________
Optical system
Optical system: Directional lighting controlled by longitudinal aluminum louvres
Light distribution: Single-sided emission (standard)
Option: Double-sided emission (on request)
Glare control: Reduced direct view of LED source
____________________________________________________________________________
Electrical
Input voltage: 220–240 V AC (100–277 V AC optional), 50/60 Hz
Power factor: >0.95
Power range: 10–70 W (depending on length and output)
Control options: ON/OFF · TRIAC · 0–10 V · DALI (DT6/DT8 on request)
Options: Sensor version / Emergency version
Electrical class: Class I
____________________________________________________________________________
Color temperature
CCT: 2700K / 3000K / 4000K / 5000K / 6000K
Option: Tunable White (on request)
____________________________________________________________________________
Dimensions
Two diameter: Ø70 mm / Ø100 mm
Custom lengths available (300–1500 mm)
____________________________________________________________________________
Operating temperature
Operating temperature: −25°C to +45°C
Installation and maintenance
Connection
Sealed cable entry with stainless steel cable gland
Cable range: Ø5–14 mm
Disconnectable terminal block
Up to 3 × 2.5 mm² conductors
____________________________________________________________________________
Mounting
2 Mounting brackets with adjustable spacing
Wall, ceiling or suspended installation
Suspension kits available
Materials
Housing
Co-extruded polycarbonate (PC) or PMMA tube
UV-stable, impact-resistant
For indoor and outdoor use
____________________________________________________________________________
Structure
Precision-engineered aluminum louvre system
Aluminum end caps
Stainless steel fixing components
____________________________________________________________________________
Customization
Custom lengths available on request
Multiple mounting bracket options (project-specific)
Surface finishes: matte textured / smooth gloss
Control options configurable per project (ON/OFF, TRIAC, 0–10 V, DALI; sensor / emergency on request)
Single-sided / double-sided emission options
Standards & protection
Ingress protection
IP67 standard
IP69K optional
____________________________________________________________________________
Impact resistance
IK10 (PC)
IK08 (PMMA)
____________________________________________________________________________
Fire performance
Glow-wire test: 960°C
____________________________________________________________________________
Warranty
5-Year whole fixture
____________________________________________________________________________
Applications
Architectural indoor and outdoor environments

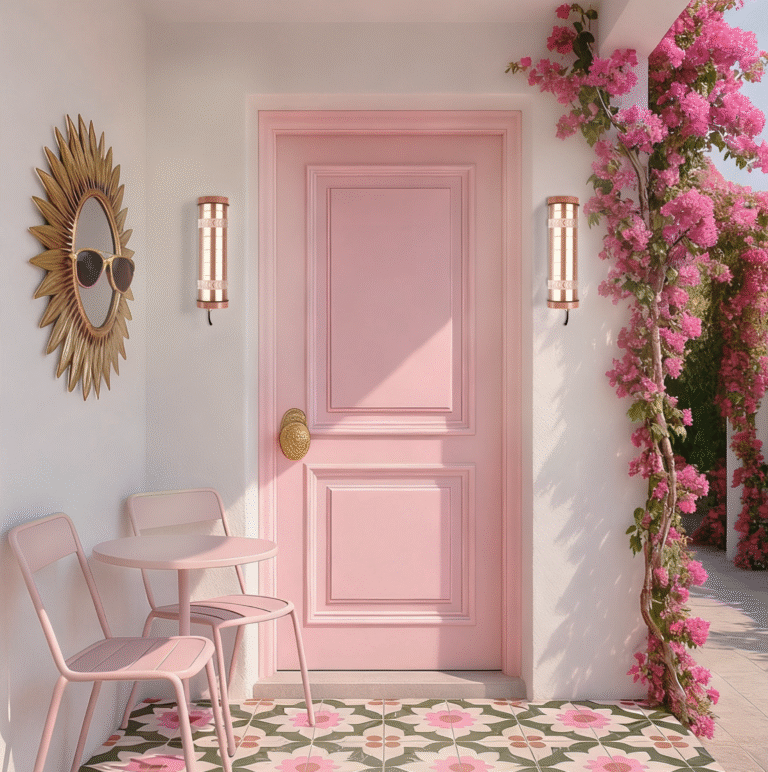

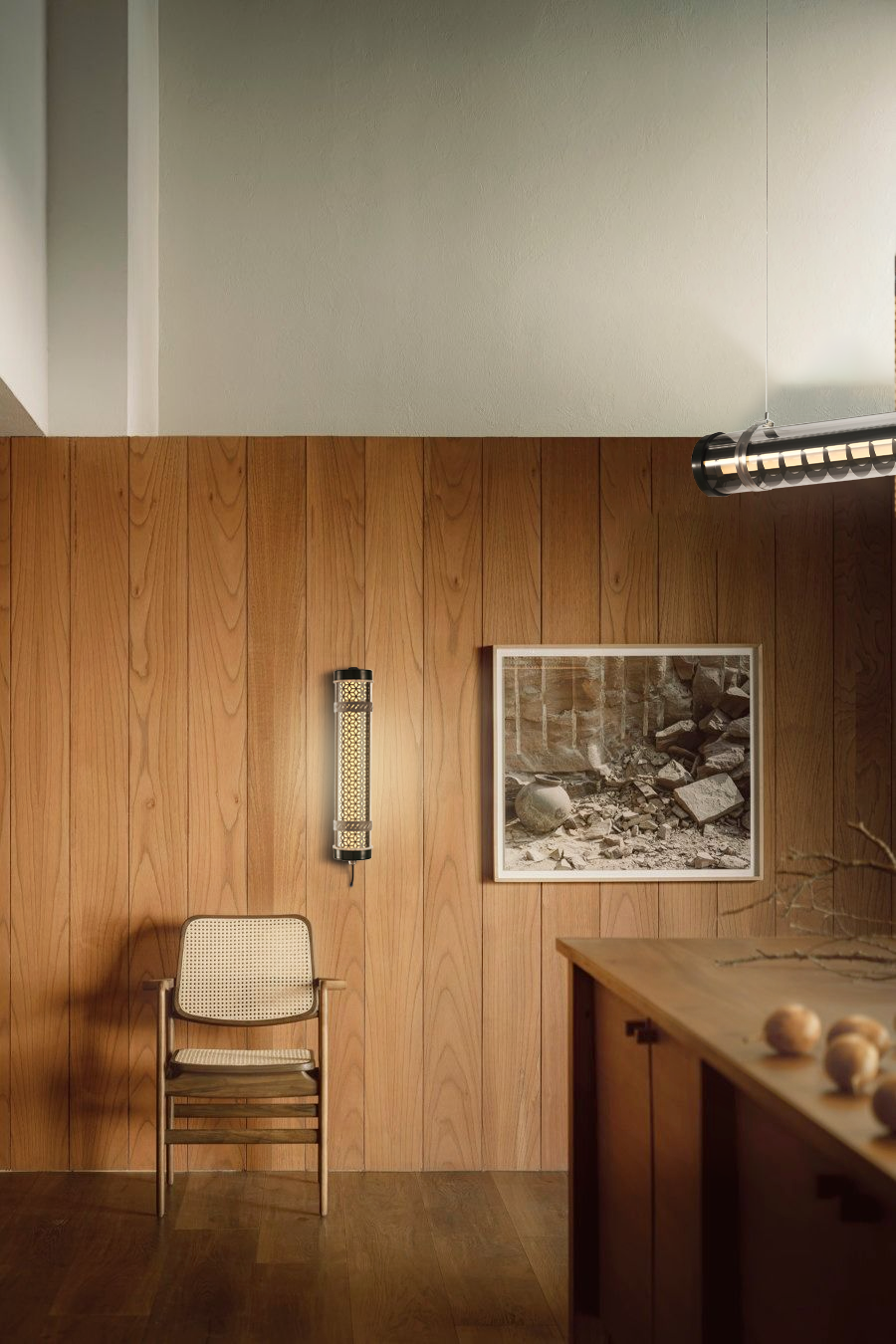

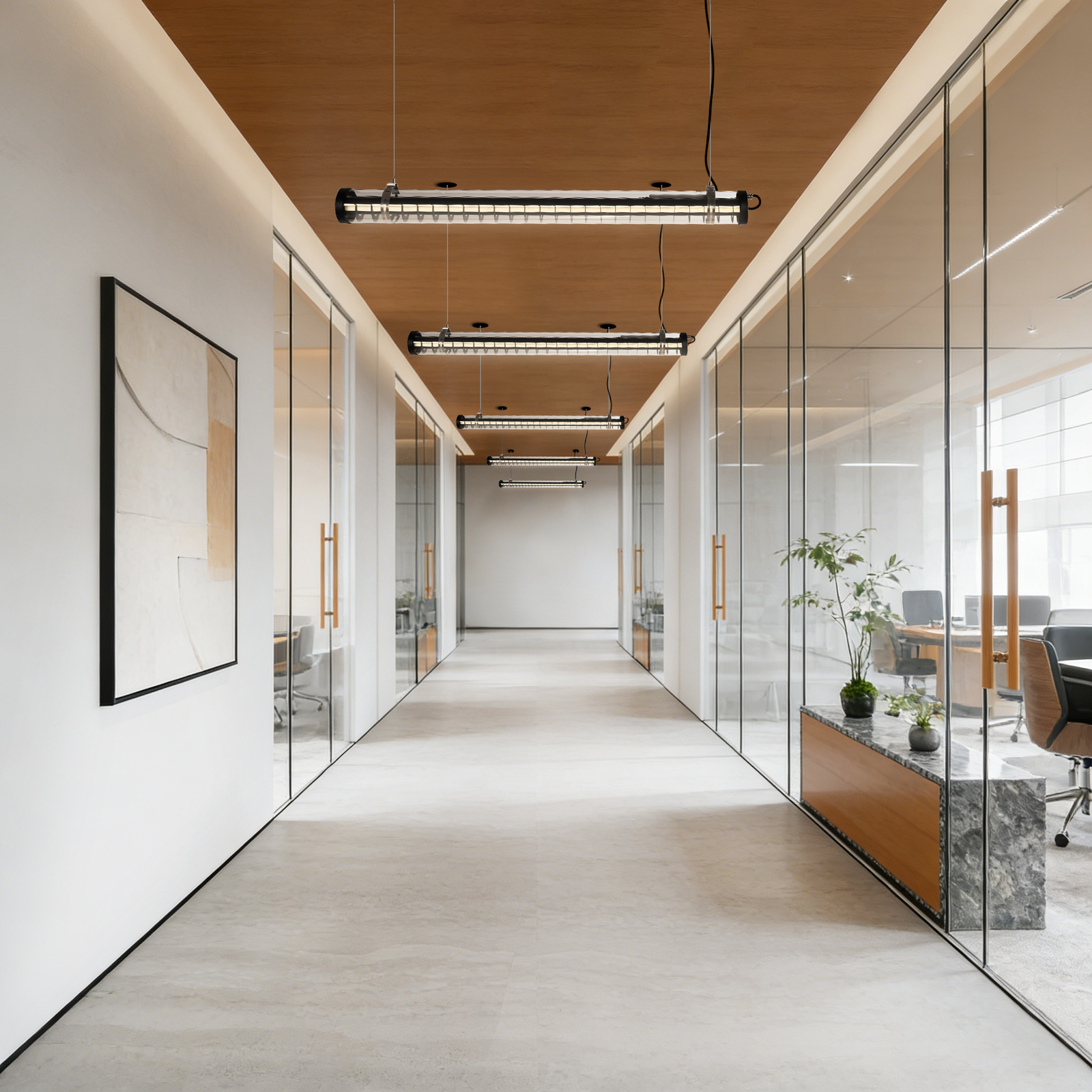

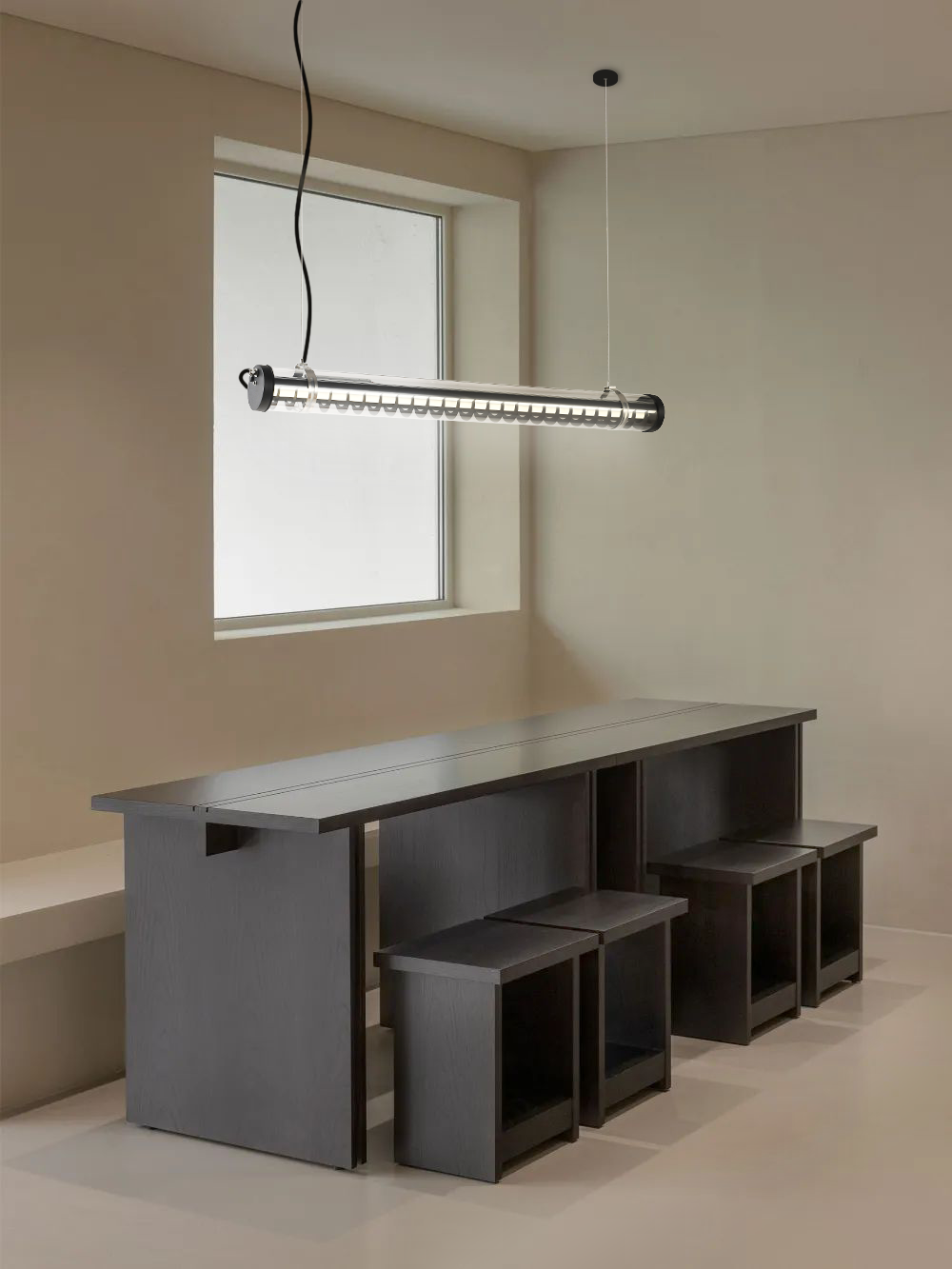

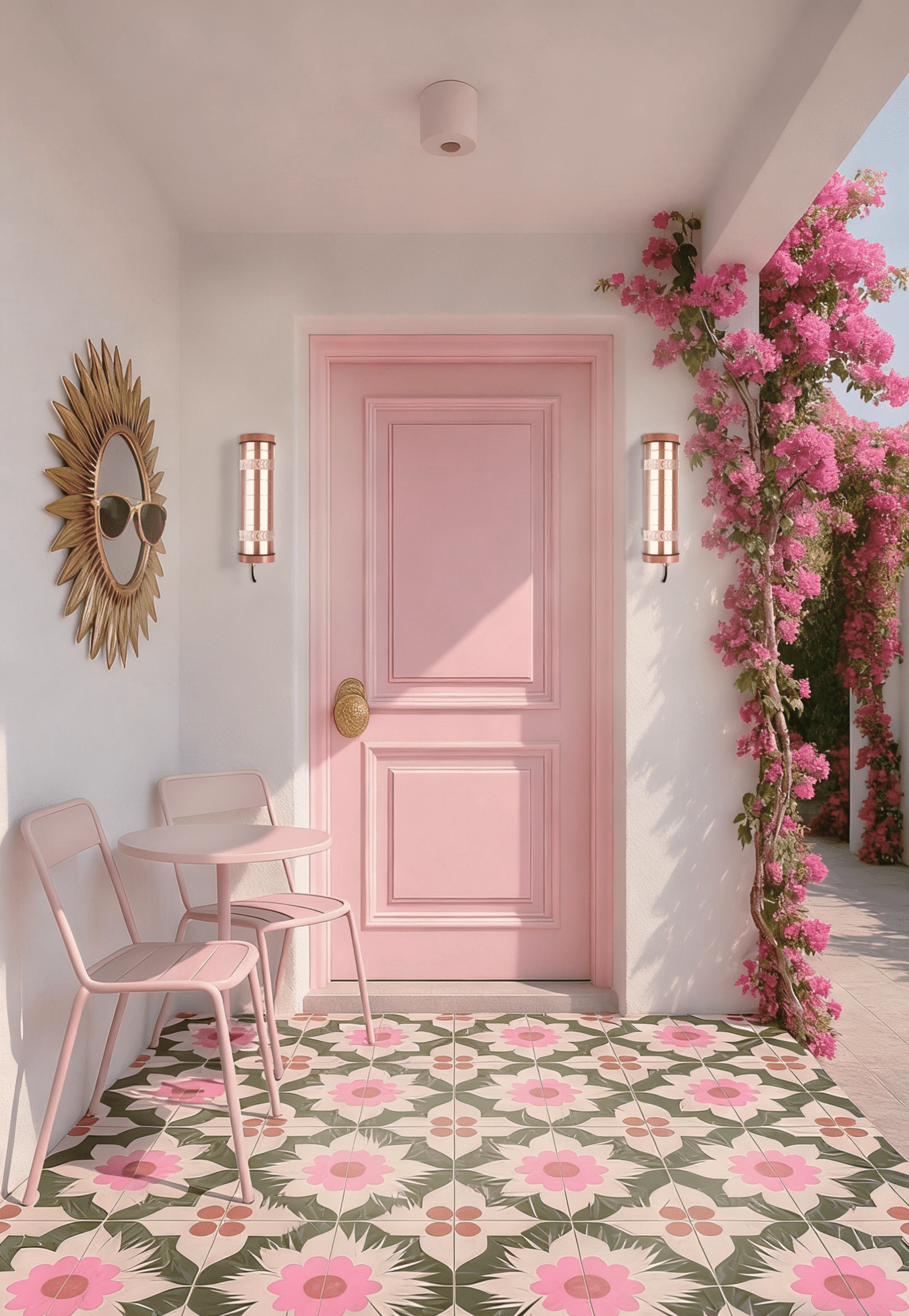

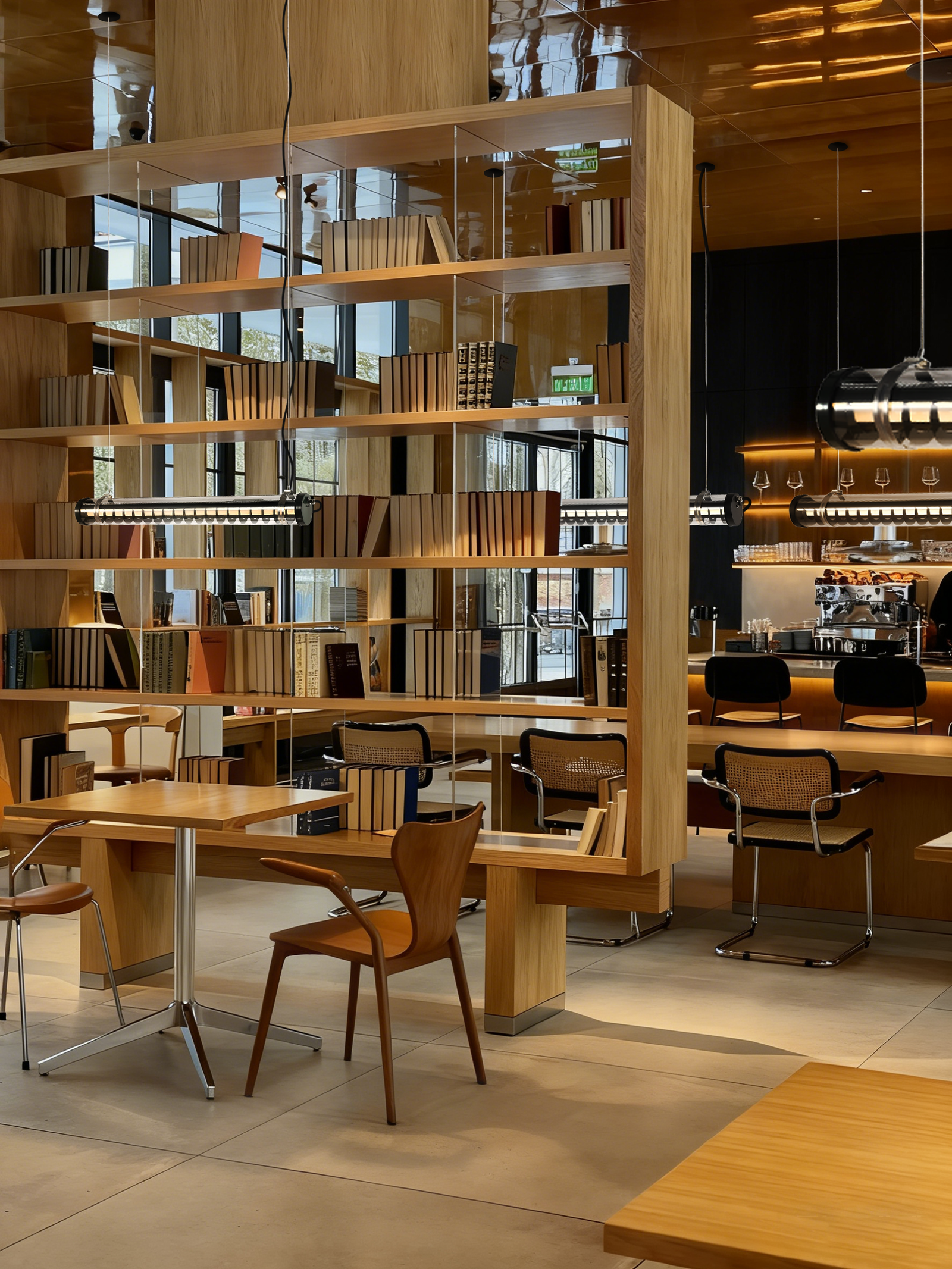

ARCHITECTURAL APPLICATIONS
SUSTAINABILITY STATEMENT
Designed with longevity and responsibility in mind.
Rosa is built with an integrated LED system and a robust project-grade structure, ensuring stable performance throughout its service life.
The combination of aluminum louver optics, aluminum and stainless steel components, and an impact-resistant PC tubular housing delivers reliable operation in demanding architectural and commercial environments, with IP67 protection against dust and water ingress and IK10 resistance to mechanical impact.
The integrated LED light source is energy-efficient and environmentally responsible—mercury-free, with no ultraviolet (UV) and no infrared (IR) radiation—making it safe for occupants and suitable for sensitive architectural spaces.
By focusing on durability, controlled optics, and high protection ratings, Rosa minimizes maintenance requirements and reduces the need for premature replacement.
This approach supports sustainable building strategies by lowering total cost of ownership while maintaining consistent lighting performance over time.
