Signal
Tri-Proof Tubular
Key Features
Available diameters: Ø45 mm / Ø70 mm / Ø75 / Ø100 mm
- Standard lengths: 300mm/600 mm/900 mm/1200 mm/1500 mm
Custom graphic and signage integration: Supports custom logos, symbols, text, safety markings, wayfinding graphics, or branding elements, applied by high-quality sticker or UV printing
- Mounting options: surface-mounted or suspended
- CCT options: 2700K / 3000K / 4000K / 5000K / 6000K
- CCT tunable and switchable versions available
- Control options: ON/OFF, DALI, TRIAC, 0–10V
- System luminous efficacy: 120 lm/W (standard), up to 150 lm/W optional
- Microwave motion sensor option
- Emergency versions available
- UV-resistant PC tubular housing (transparent / opal / half-opal)
- Stainless steel end caps & mounting brackets: SS304L / SS316L
- IP67 ingress protection (indoor & outdoor use)
- IK10 impact resistance
- 960°C glow-wire tested
- 5-year system warranty
- CE, RoHS certified
Description
MANI tubular luminaires are designed for commercial and public applications where durability, visibility, and long-term reliability are required. This model combines functional lighting with integrated visual communication, allowing graphics, symbols, text, or signage elements to be clearly presented on the tubular housing.
With IP67 ingress protection and IK10 impact resistance, the sealed polycarbonate construction provides reliable protection against dust, moisture, and accidental impact. This makes the luminaire suitable for high-traffic indoor and outdoor environments.

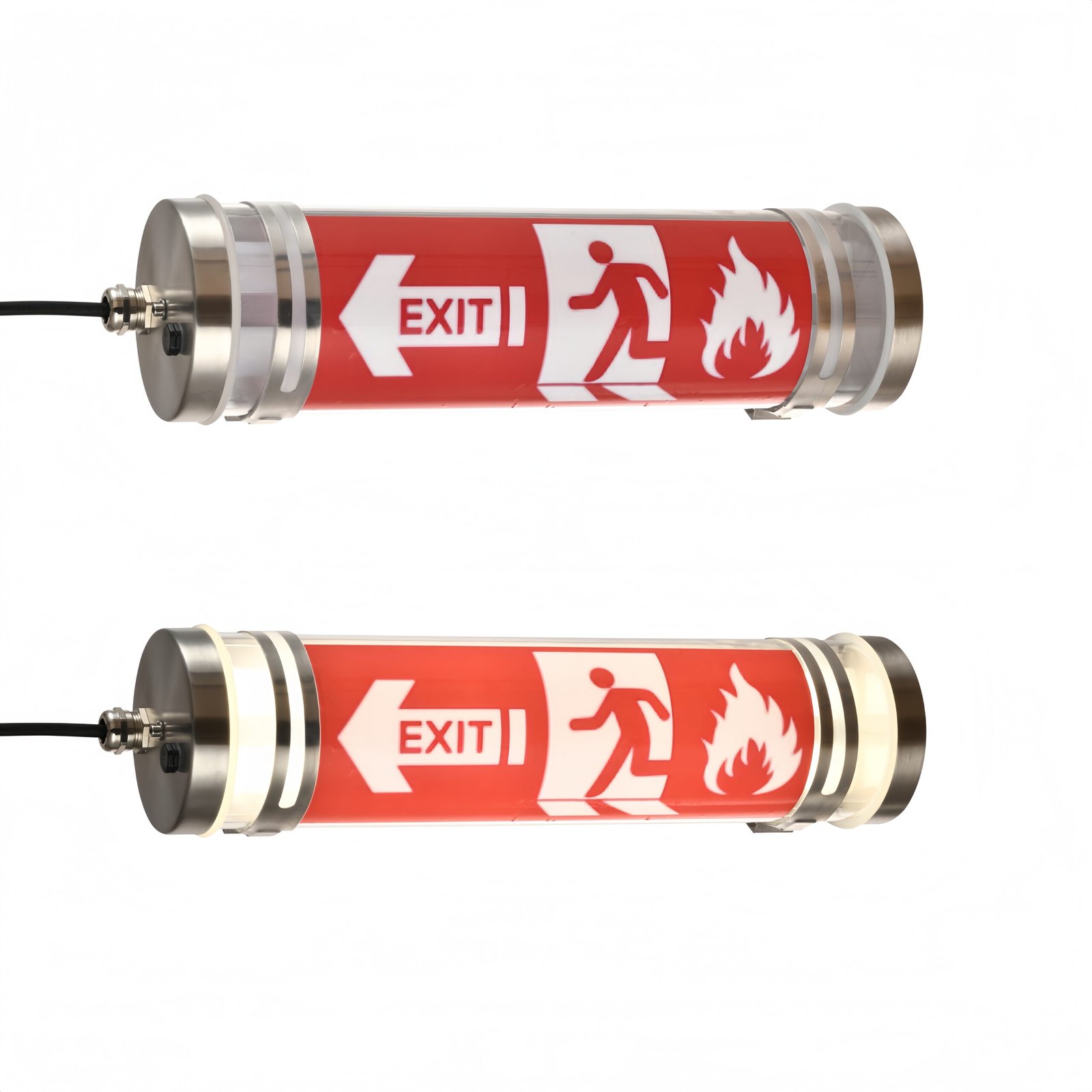

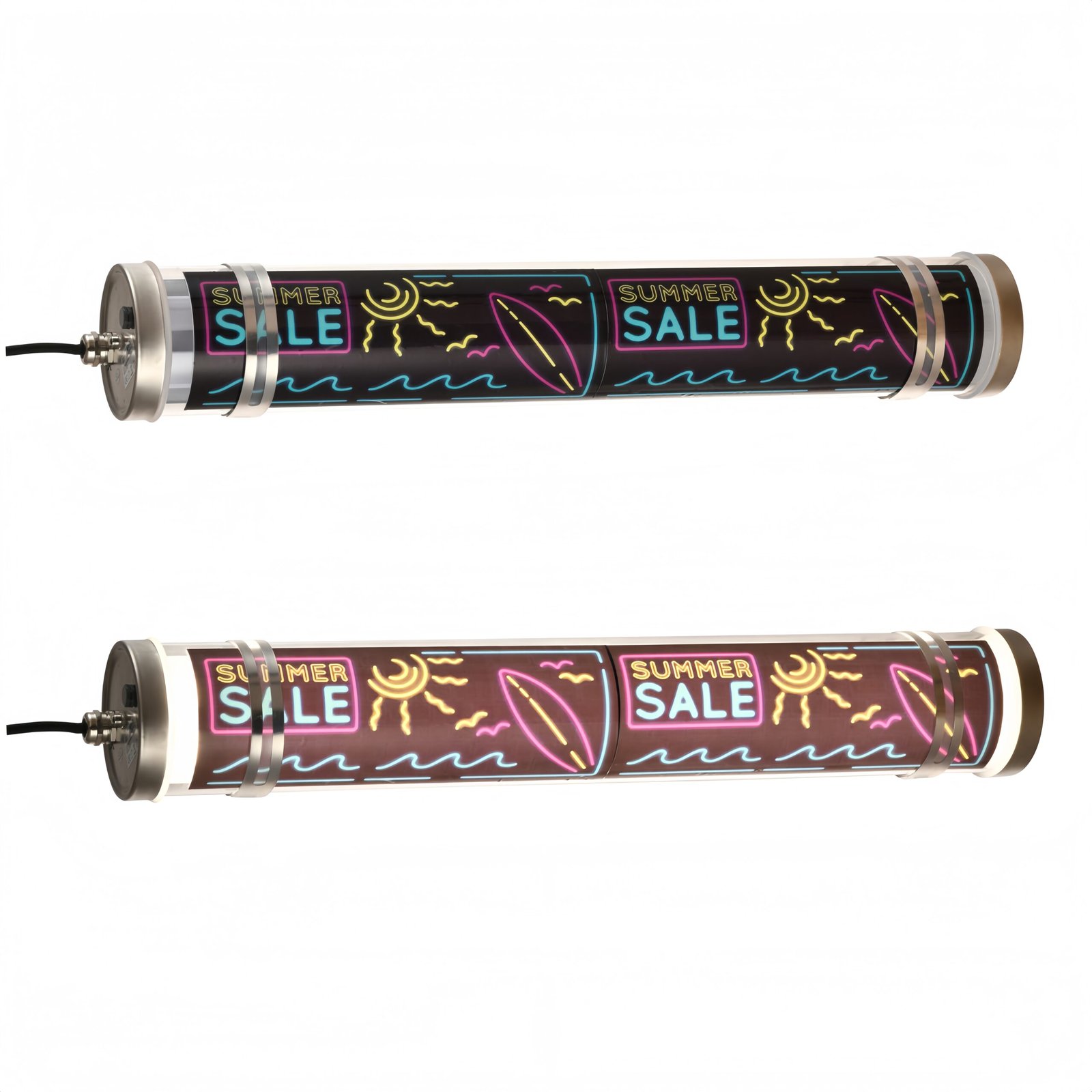

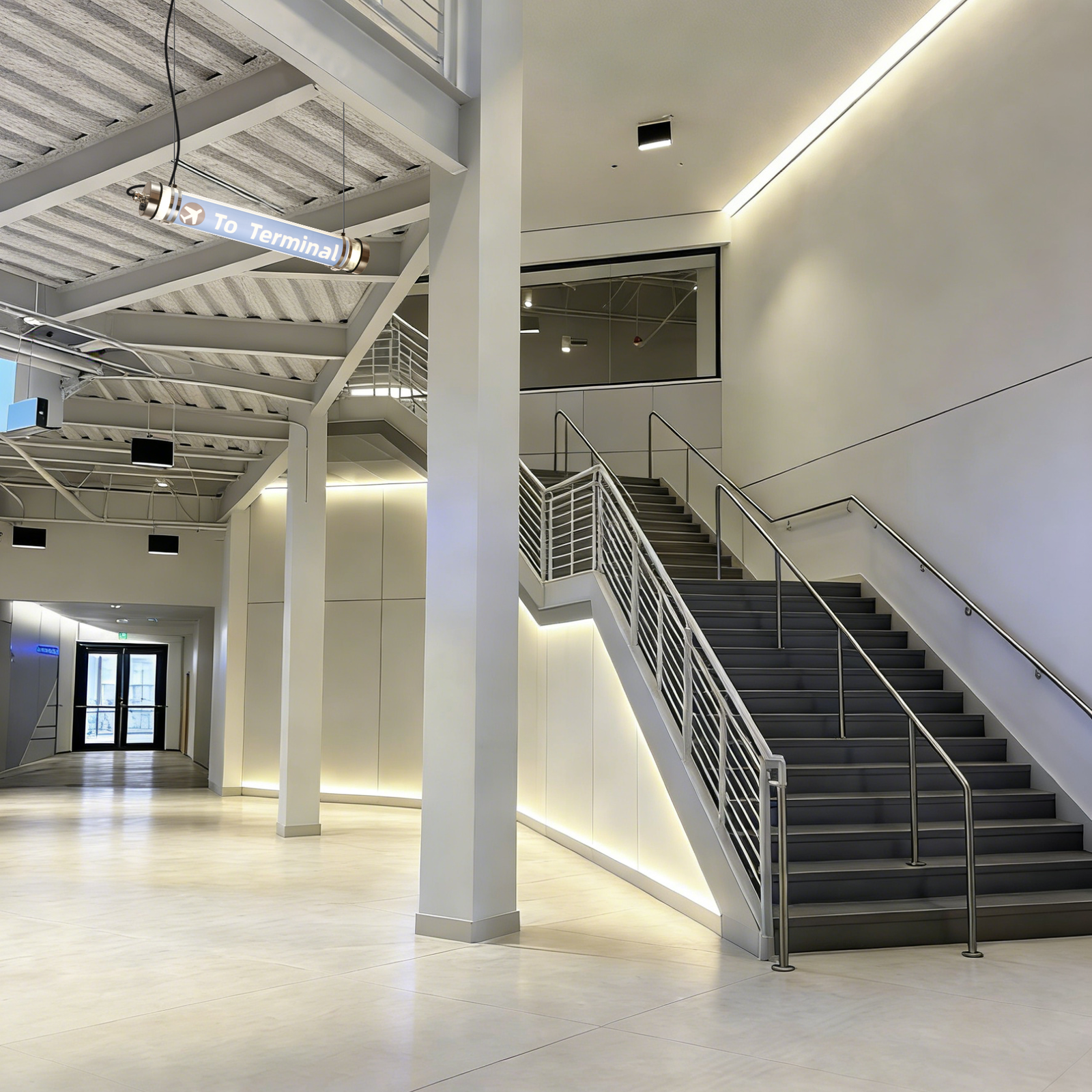

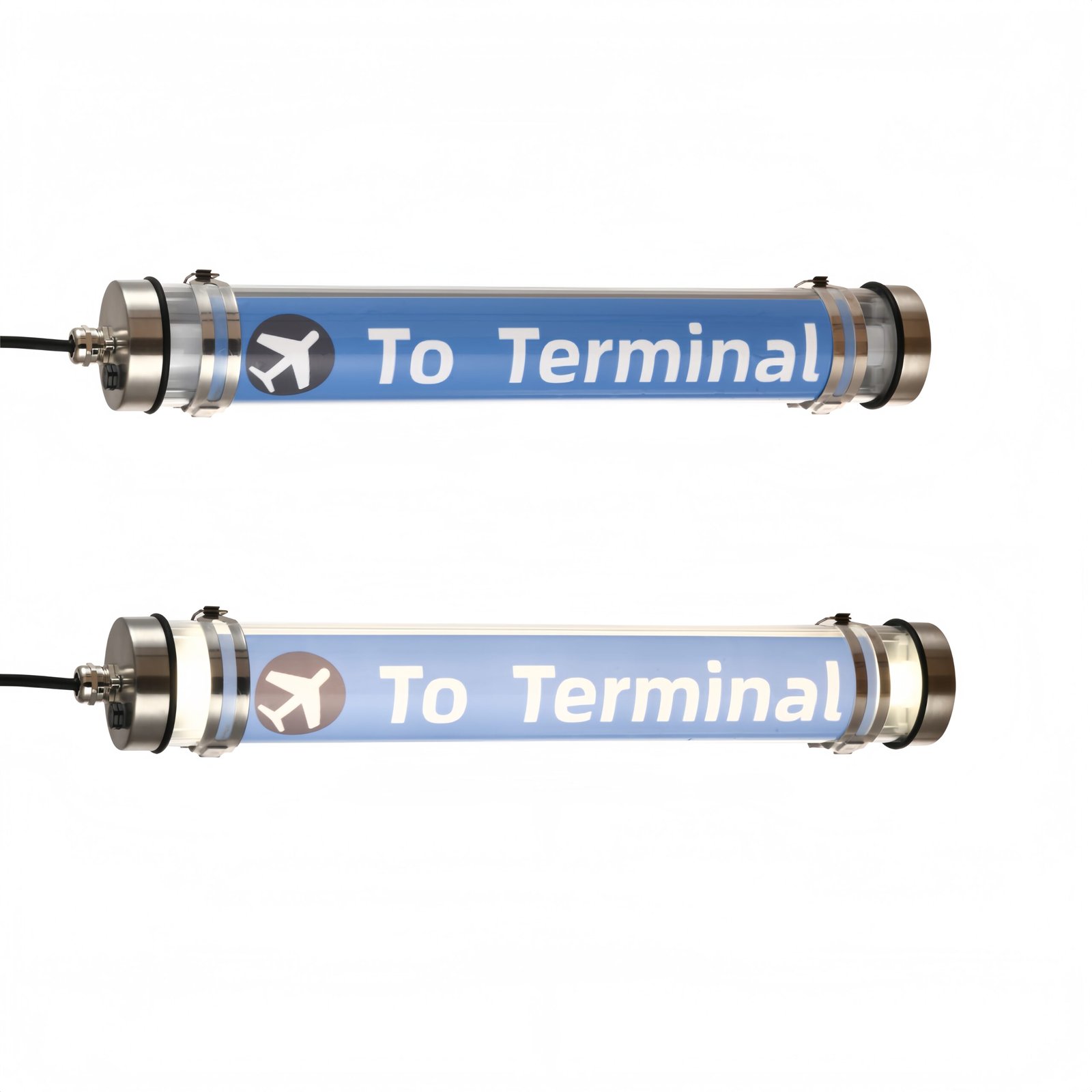

The luminaire is available in Ø45 mm, Ø70 mm and Ø100 mm tubular formats with multiple standard lengths. Custom graphics can be applied by high-quality sticker or UV printing, enabling the luminaire to serve as a flexible carrier for safety information, wayfinding, identification, or branding elements. Both surface-mounted and suspended installation options are supported to suit different project requirements.

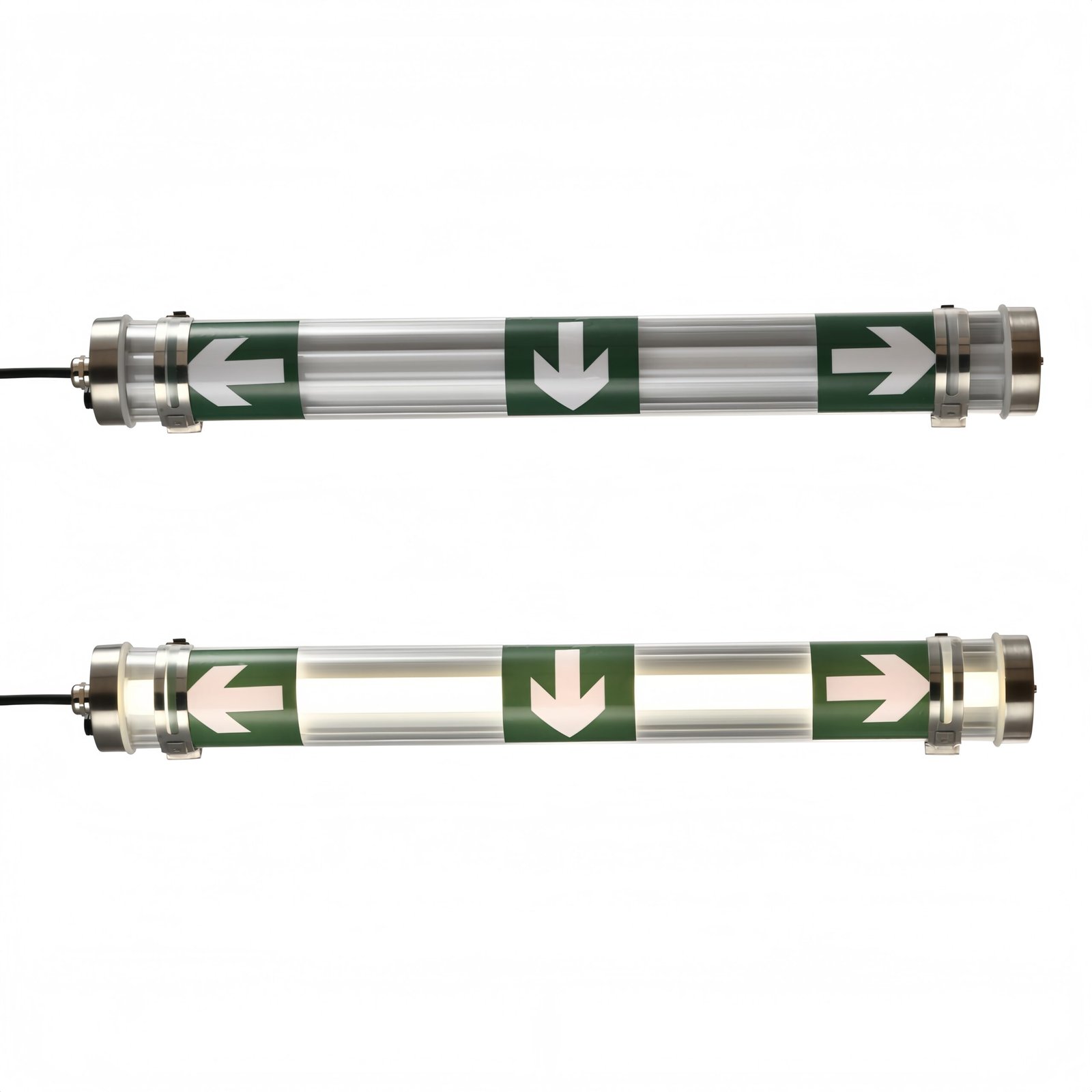

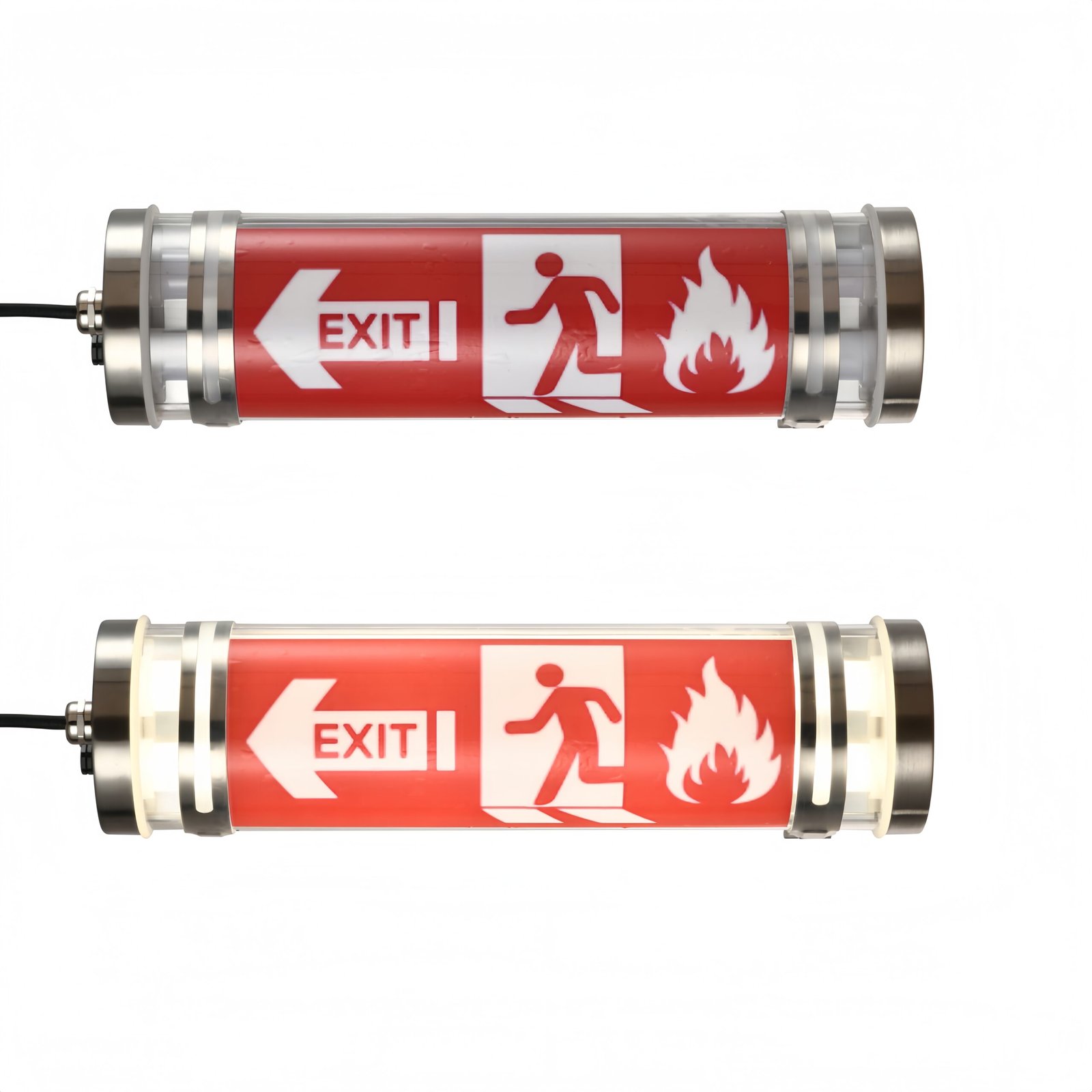

Signal Tubular Luminaire

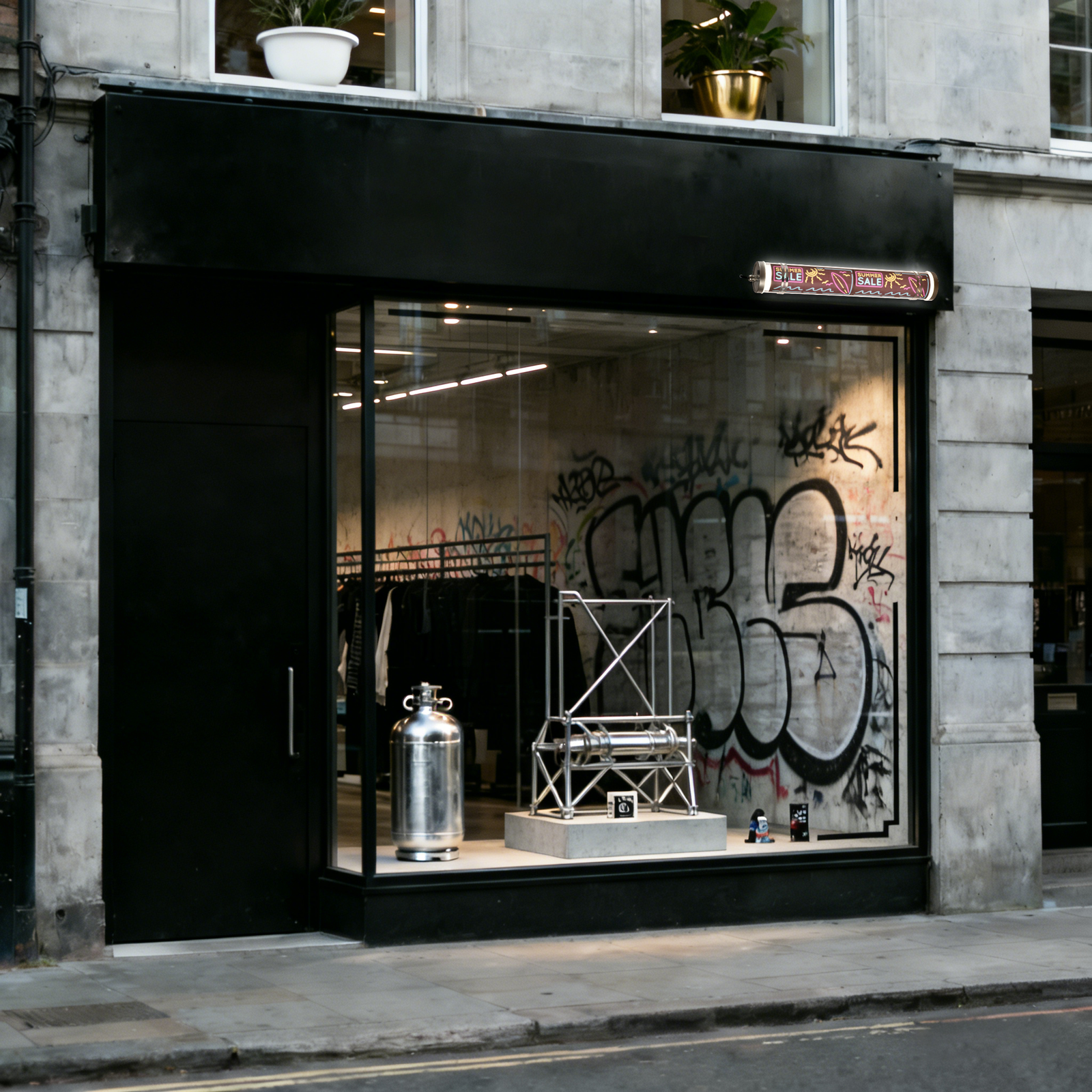

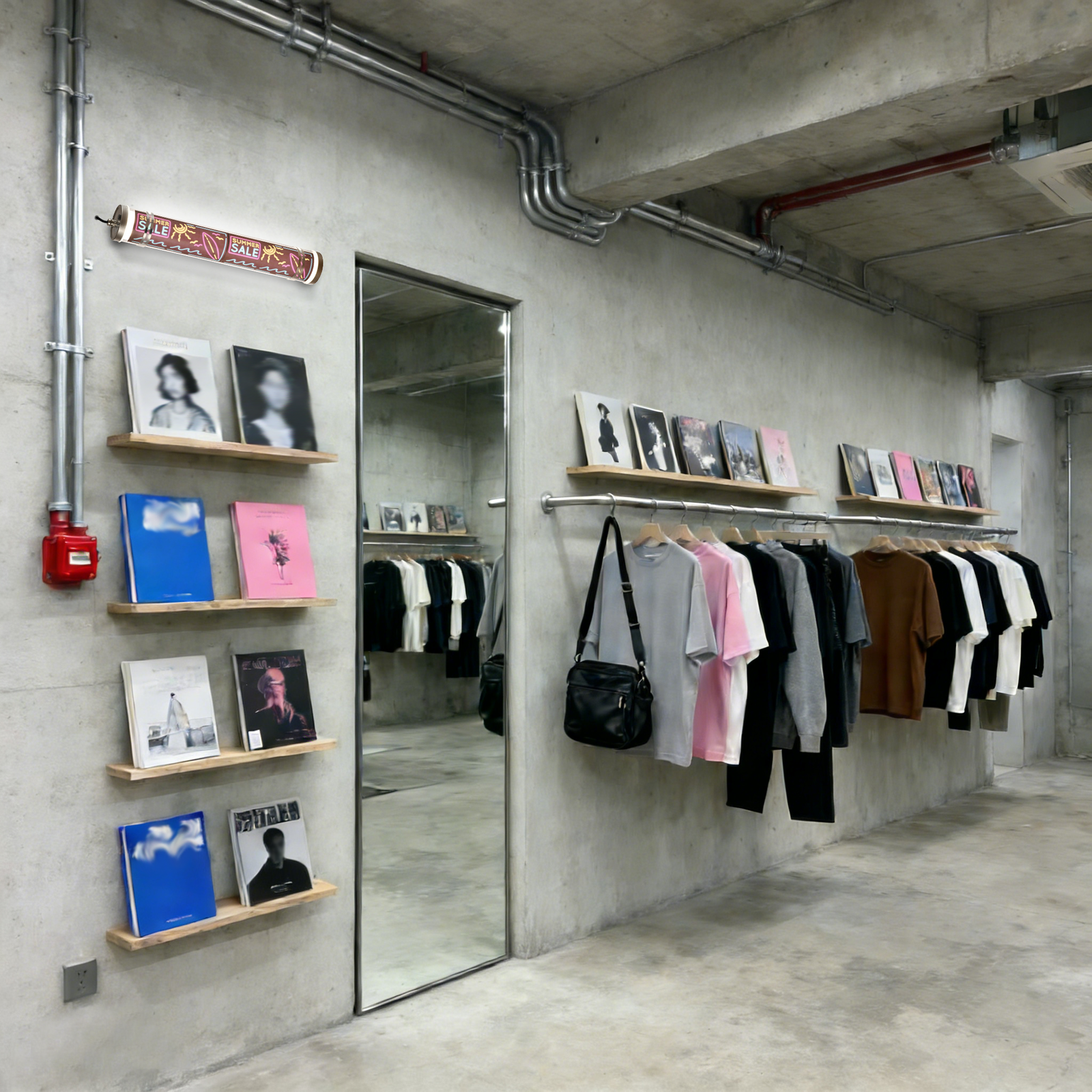

Signal tubular luminaires combine functional lighting with integrated visual communication.

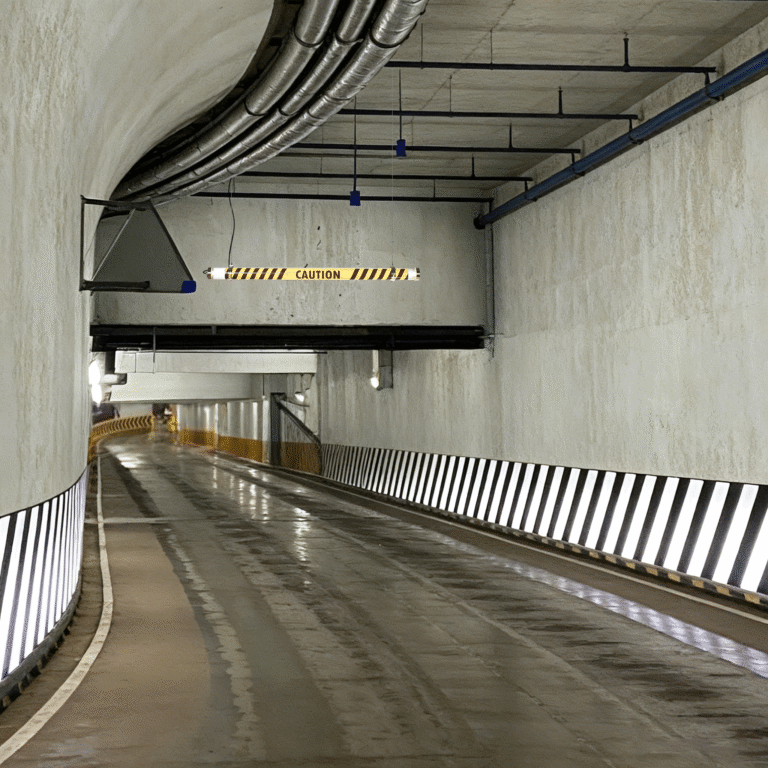

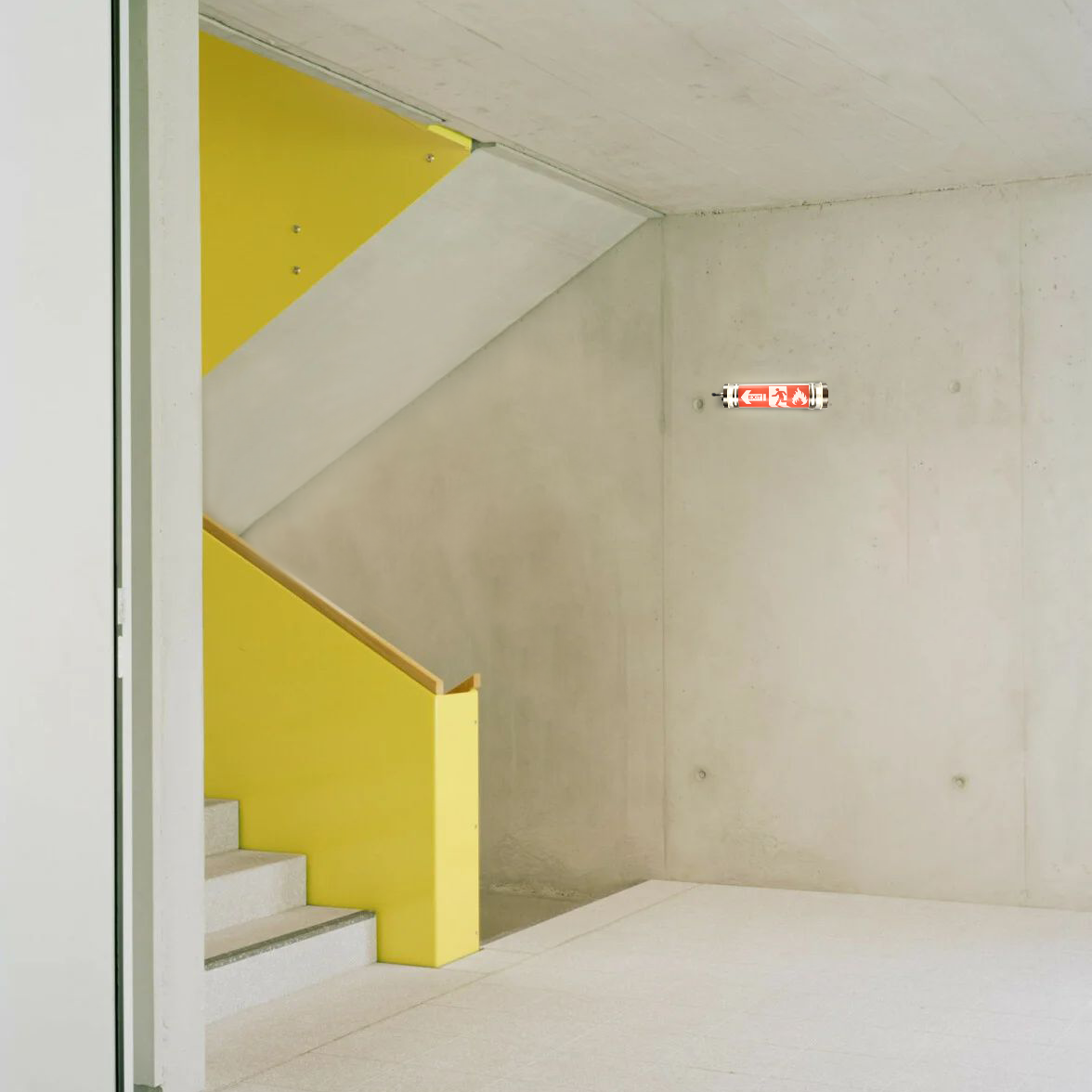

By incorporating customizable graphics, symbols, or text within a durable tubular housing, they provide clear visual guidance, warning, or identification while maintaining reliable illumination and long-term performance in commercial and public environments.
High Protection Structure & Durable Design
A triple-sealing system with central screw fastening provides IP67 / IP68 ingress protection, ensuring reliable resistance to dust, moisture, and high-pressure washdown.
The co-extruded polycarbonate diffuser and stainless steel components deliver IK10 impact resistance and 960°C glow-wire compliance for long-term mechanical and fire safety.

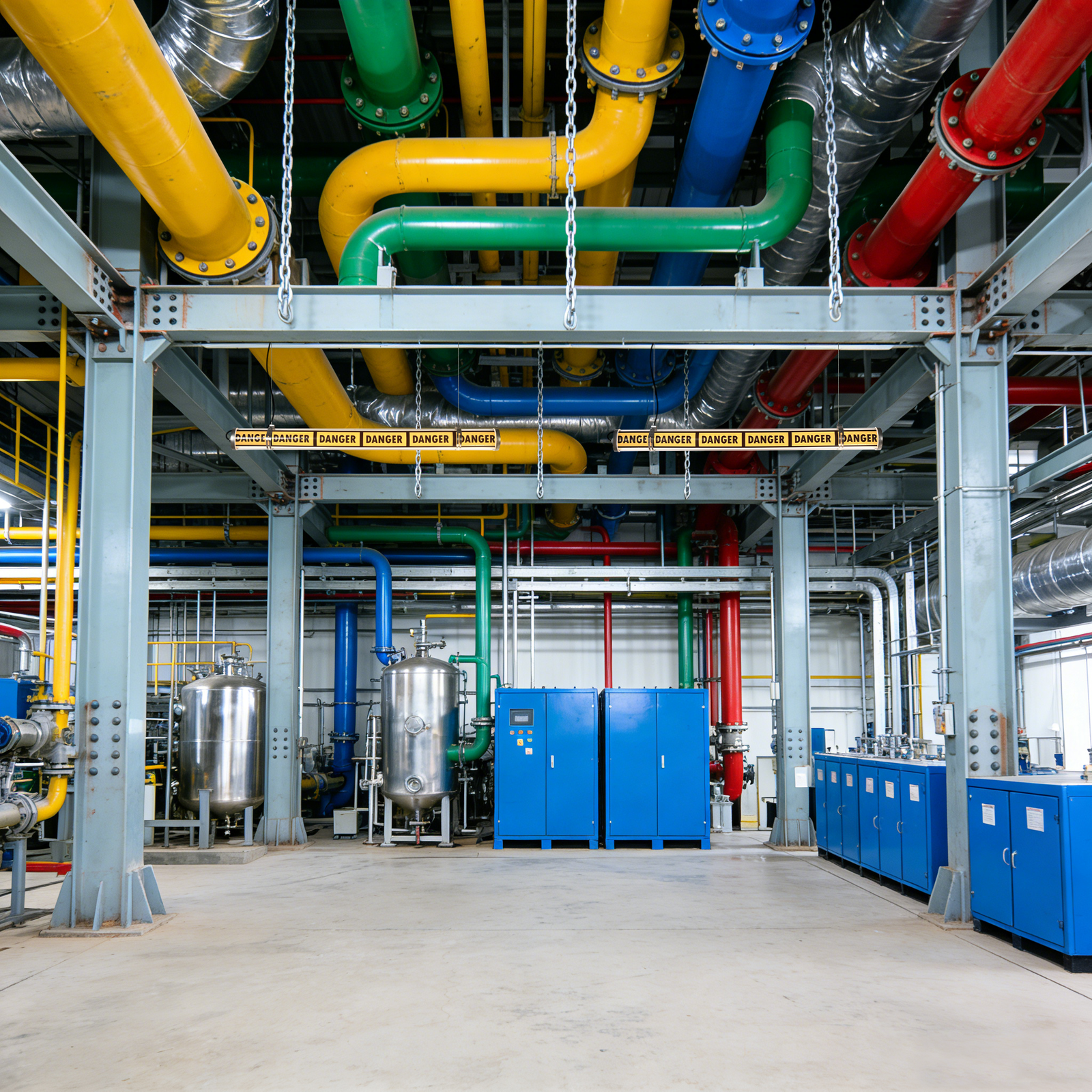

Designed to withstand chemicals, moisture, and UV exposure, the luminaire ensures reliable operation in harsh industrial, commercial, and public environments.
Smart Control & Emergency Options (Optional)
The luminaire can be equipped with an integrated microwave motion sensor for occupancy-based control, reducing energy consumption. Detection area, hold time, and daylight threshold are adjustable to suit different installation conditions.

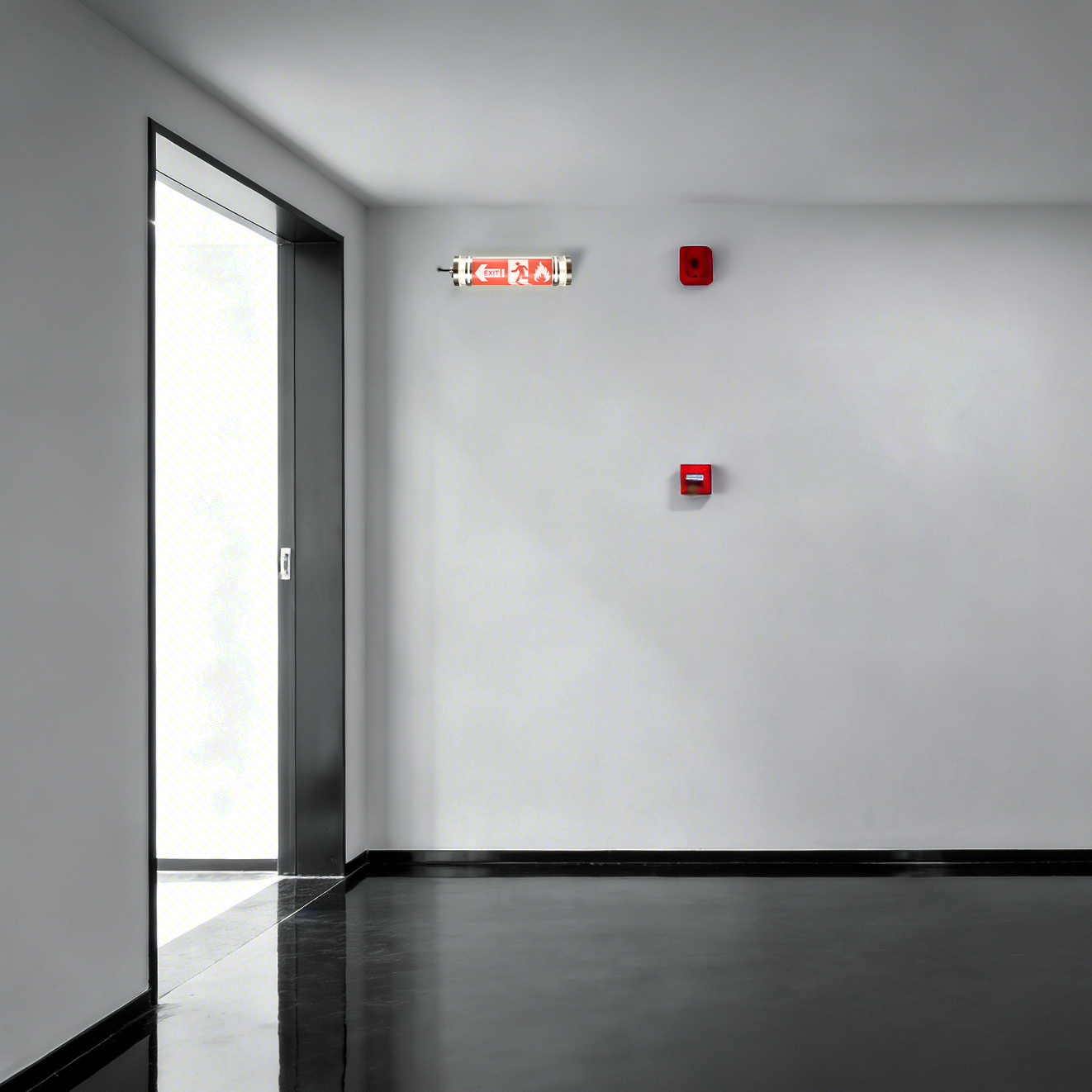

Emergency versions with a long-life lithium-ion battery are available, providing up to 3 hours of emergency lighting to support safe illumination of evacuation routes and critical areas during power failure.
TECHNICAL SPECIFICATIONS
APPLICATIONS
SUSTAINABILITY STATEMENT
Designed for long-term durability and reliable industrial performance.
MANI tubular luminaires support sustainability through robust construction and extended system service life, reducing unnecessary replacement and material waste. The modular design allows graphics, signage, or identification elements to be updated independently, extending usability across different applications.
