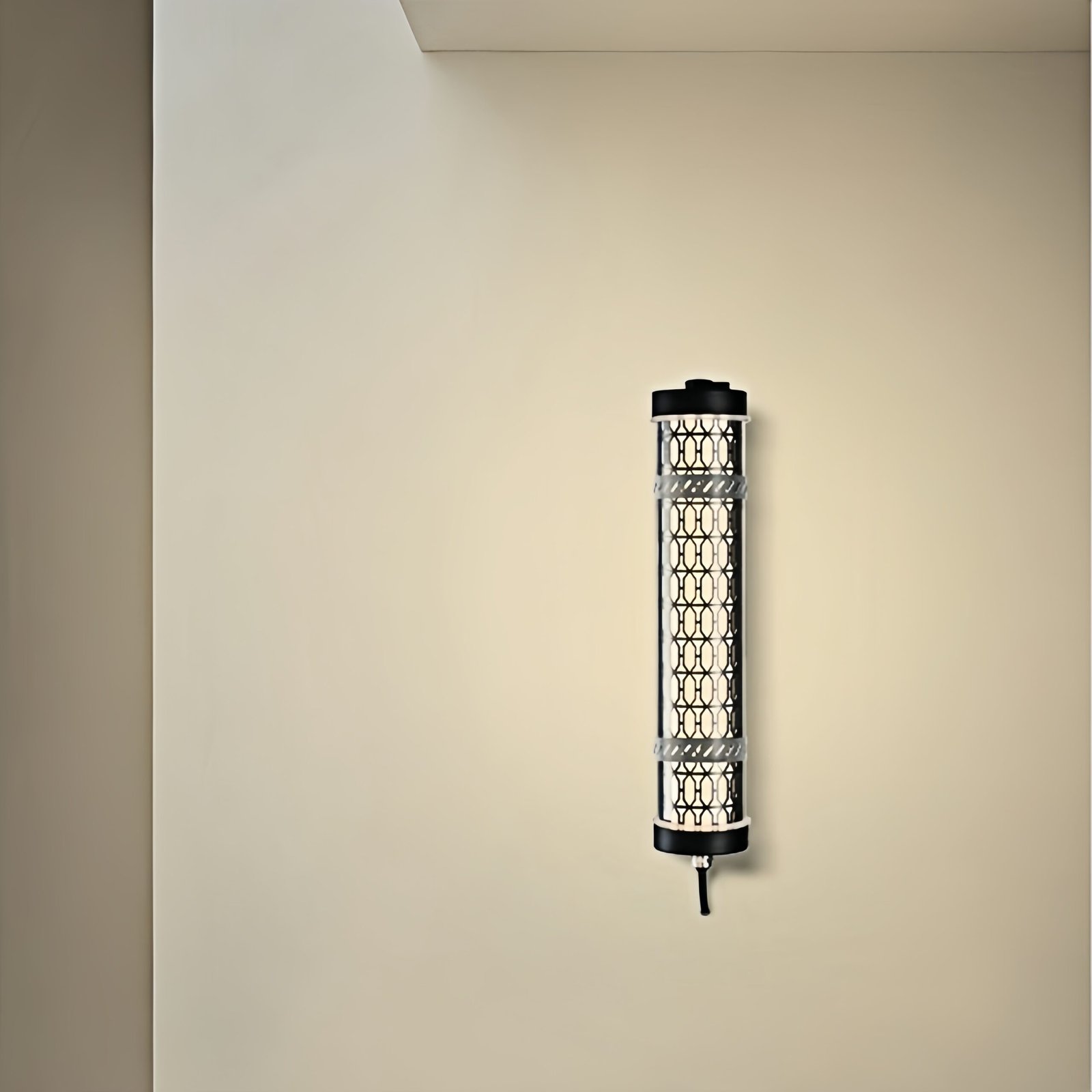

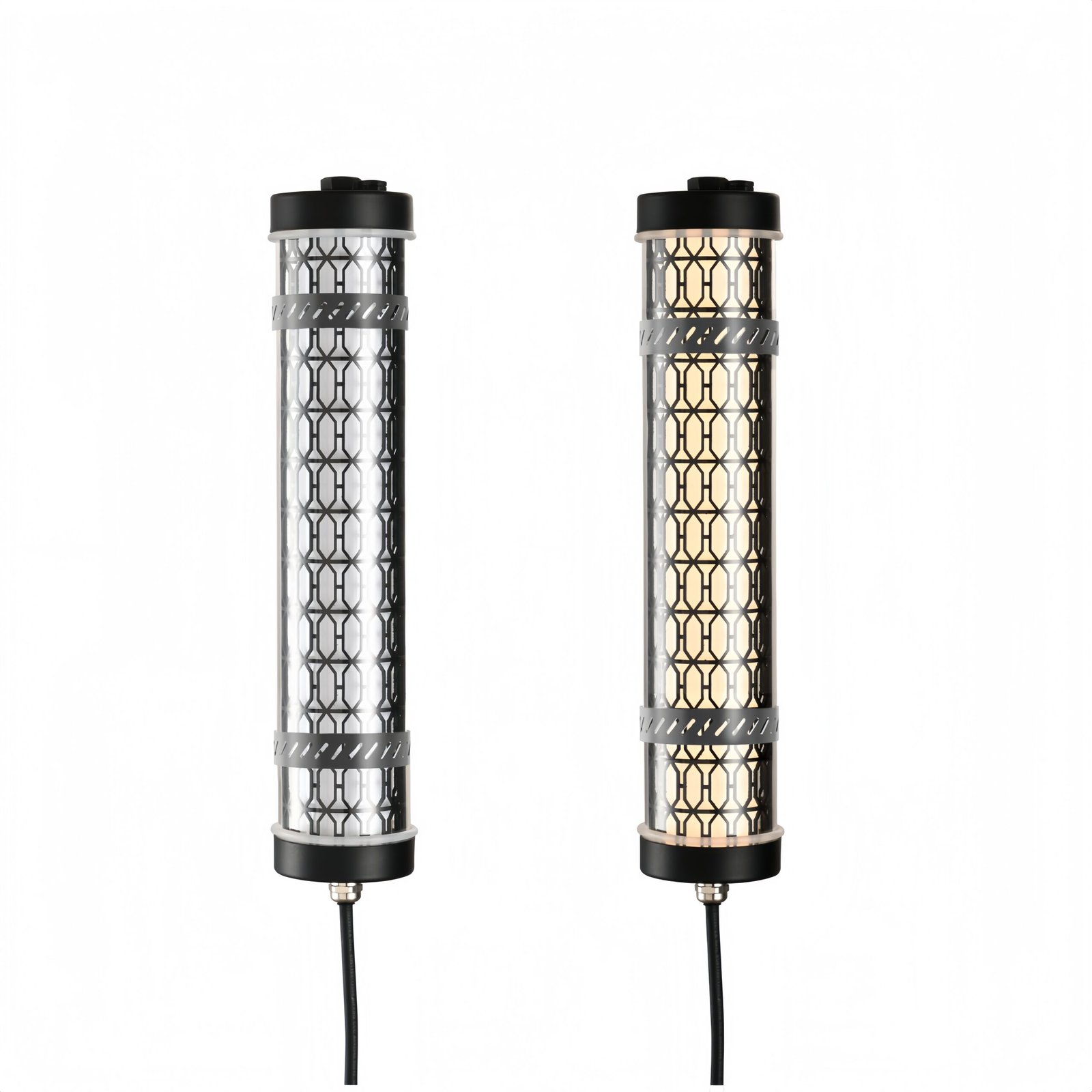

Vinci 360
Architectural 360° Tubular Luminaire
Key Features
360° uniform illumination — seamless full-circle light with no dark zones.
Two diameters — Ø70 mm & Ø100 mm.
Custom lengths — from 300 mm up to 1500 mm.
Custom finishes — silver, brass, bronze or any RAL color on request.
Custom grille patterns — decorative or functional designs for different visual effects.
Custom mounting brackets — wall, ceiling, suspended or vertical mounting with fully customizable mounting bracket options.
CCT options — fixed 2700K / 3000K /4000K / 5000K / 6000K
CCT tunable versions — tunable white or switchable CCT options available.
Advanced control — TRIAC, 0–10V, DALI
Microwave motion sensor — optional PIR / microwave detection
Emergency versions — maintained & non-maintained emergency options.
PC tubular housing — high-transparency Covestro (Bayer) polycarbonate, UV-resistant and anti-aging.
High protection — IP67 for demanding or semi-outdoor environments.
Impact-resistant — IK10 structural robustness.
Fire performance — 960 °C glow-wire tested, compliant with IEC safety standards.
5-year system warranty — supporting long-term reliability for projects.
Vinci 360
360° light, without limits.
A tubular light that becomes part of the architecture.

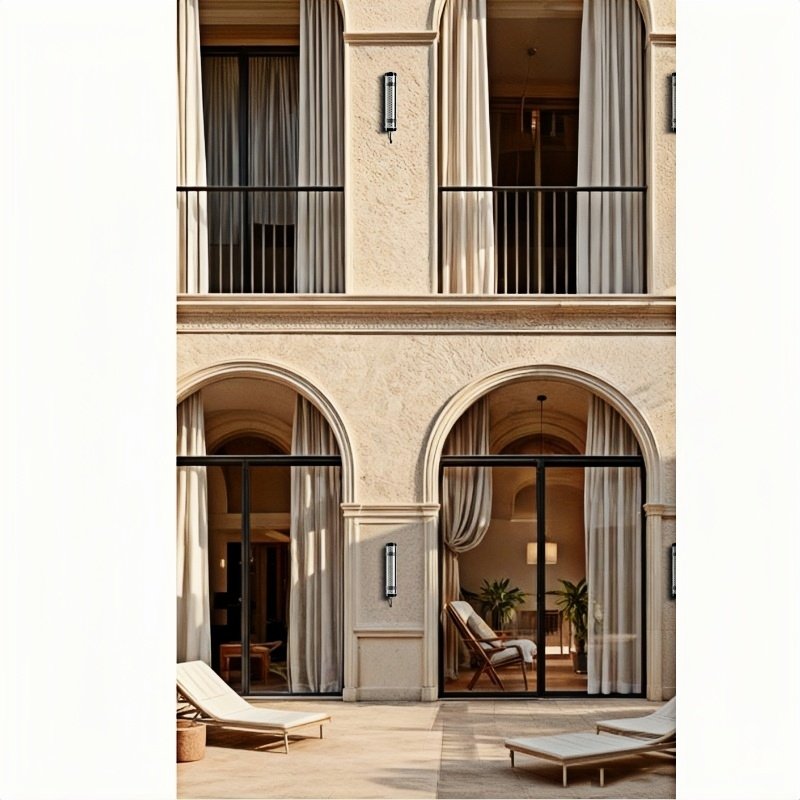

Vinci 360 is designed for flexible vertical or horizontal installation across a wide range of architectural applications, including residential and office building, hospitality spaces, retail environments and large commercial areas.
Its diffuse 360° illumination delivers soft, glare-controlled light that supports visual comfort and spatial clarity in circulation zones, shared areas and open interiors. Enhanced-output versions allow large spaces to be illuminated evenly while maintaining a calm, balanced light quality.
With its durable, sealed construction for reliable indoor and outdoor performance, and a refined grille that adds subtle architectural texture, Vinci 360 balances functional performance, long-term reliability and architectural expression within contemporary projects.
CORE ADVANTAGES
360° homogeneous illumination
Full-circle light that brightens floors, walls, and ceilings uniformly, providing clear visibility and a comfortable ambient glow.
Custom lengths up to 1500 mm
Perfectly follows architectural lines, whether used as single units or arranged in continuous compositions.

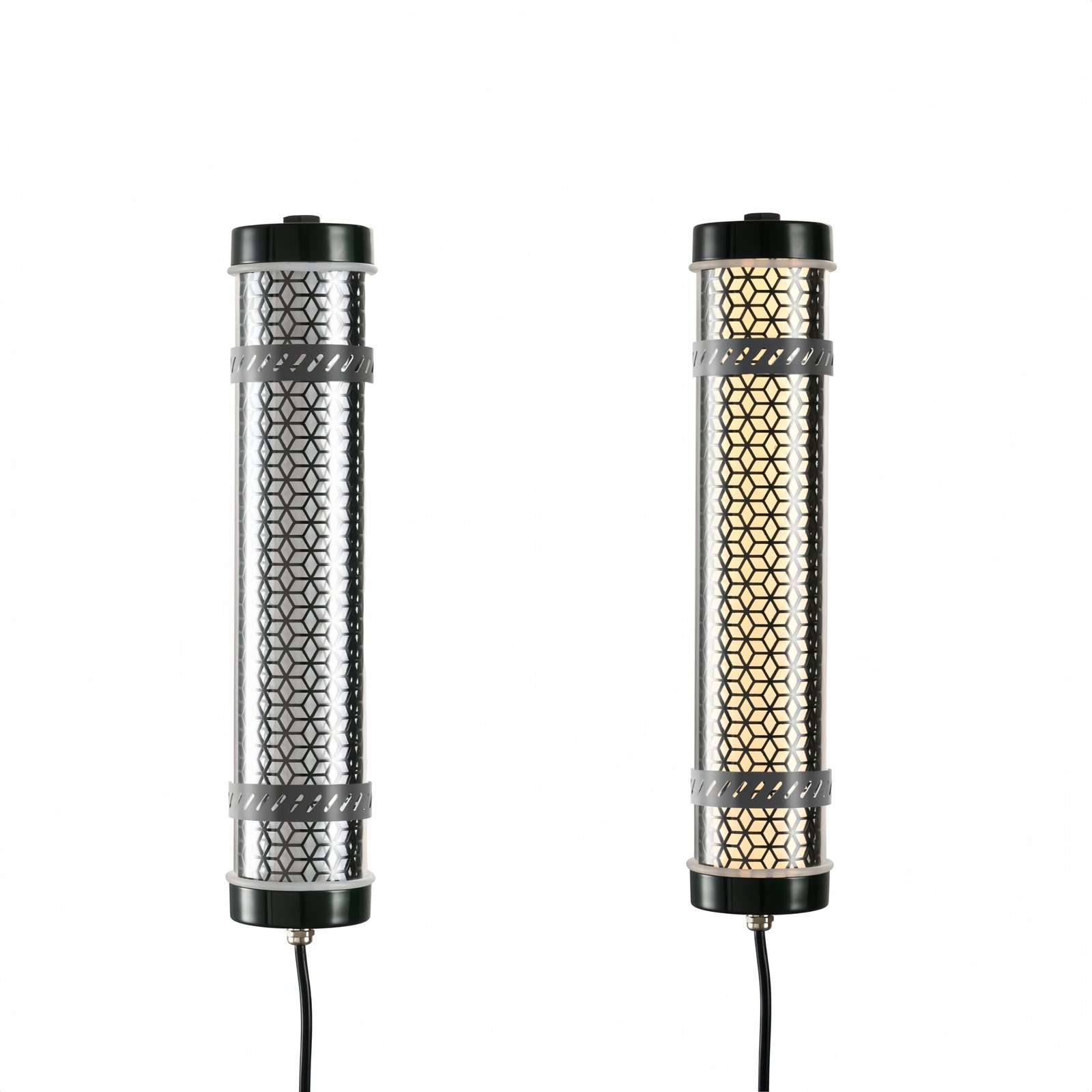

Two diameters: Ø70 mm / Ø100 mm
From subtle, refined volumes to bold visual statements.

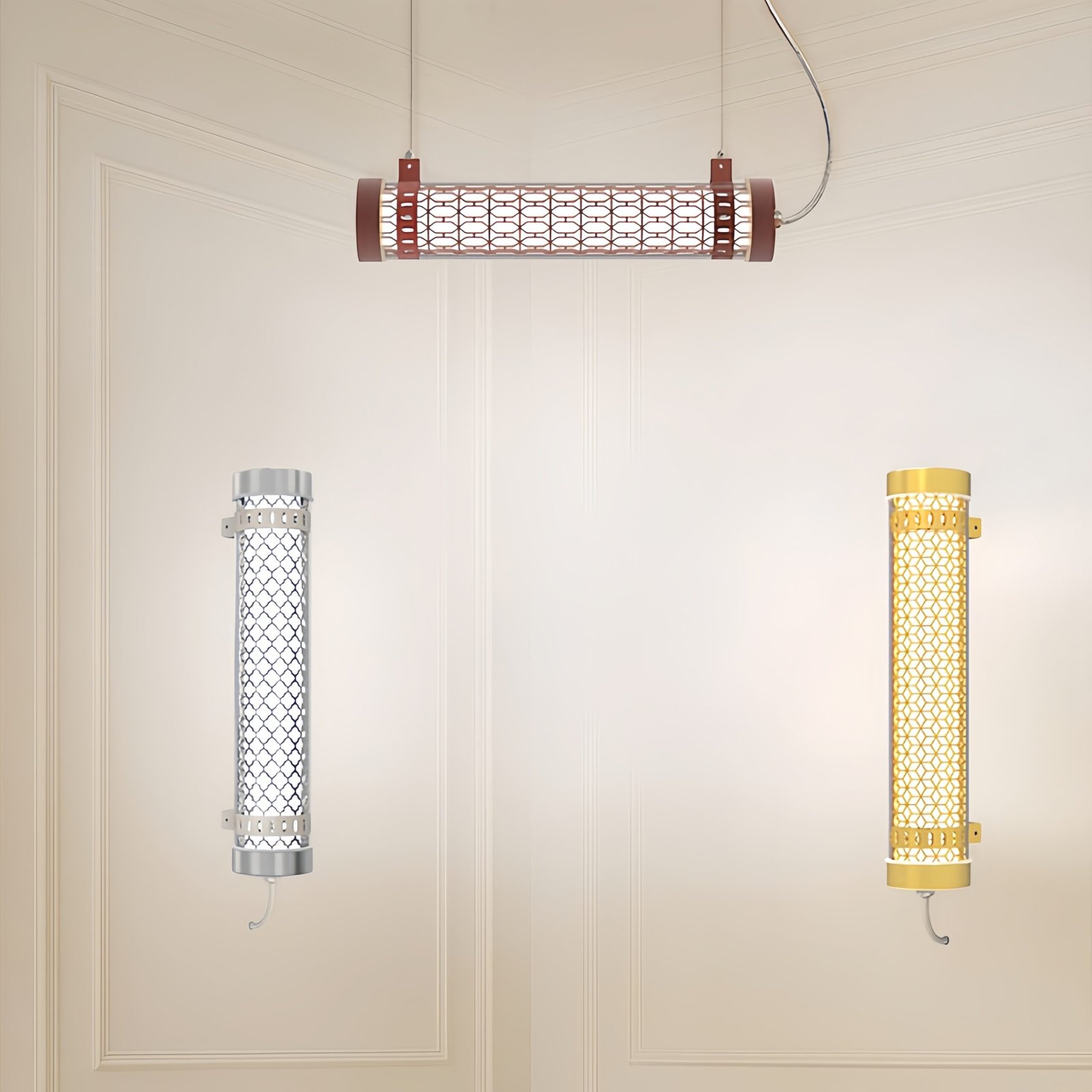

Customizable mounting possibilities
Install horizontally, vertically, wall-mounted, ceiling-mounted, or suspended. Multiple bracket designs can be customized to match the project’s layout.
Robust construction built for durability
PC/PMMA + metal grille + reinforced end caps ensure impact resistance up to IK10 and long-term stability in public or high-traffic environments.
High protection options — up to IP67
Suitable for demanding architectural applications and semi-outdoor environments.
Advanced control systems
TRIAC, 0–10V, DALI, sensor-integrated versions
CCT options
Fixed CCT: 2700K / 3000K / 4000K / 5000K / 6000K
Tunable or switchable CCT options available
Microwave motion sensor
Optional smart detection (Microwave motion sensor / PIR) for corridors, public spaces, and commercial applications.
Emergency options
Maintained & non-maintained emergency versions for safety-critical applications.

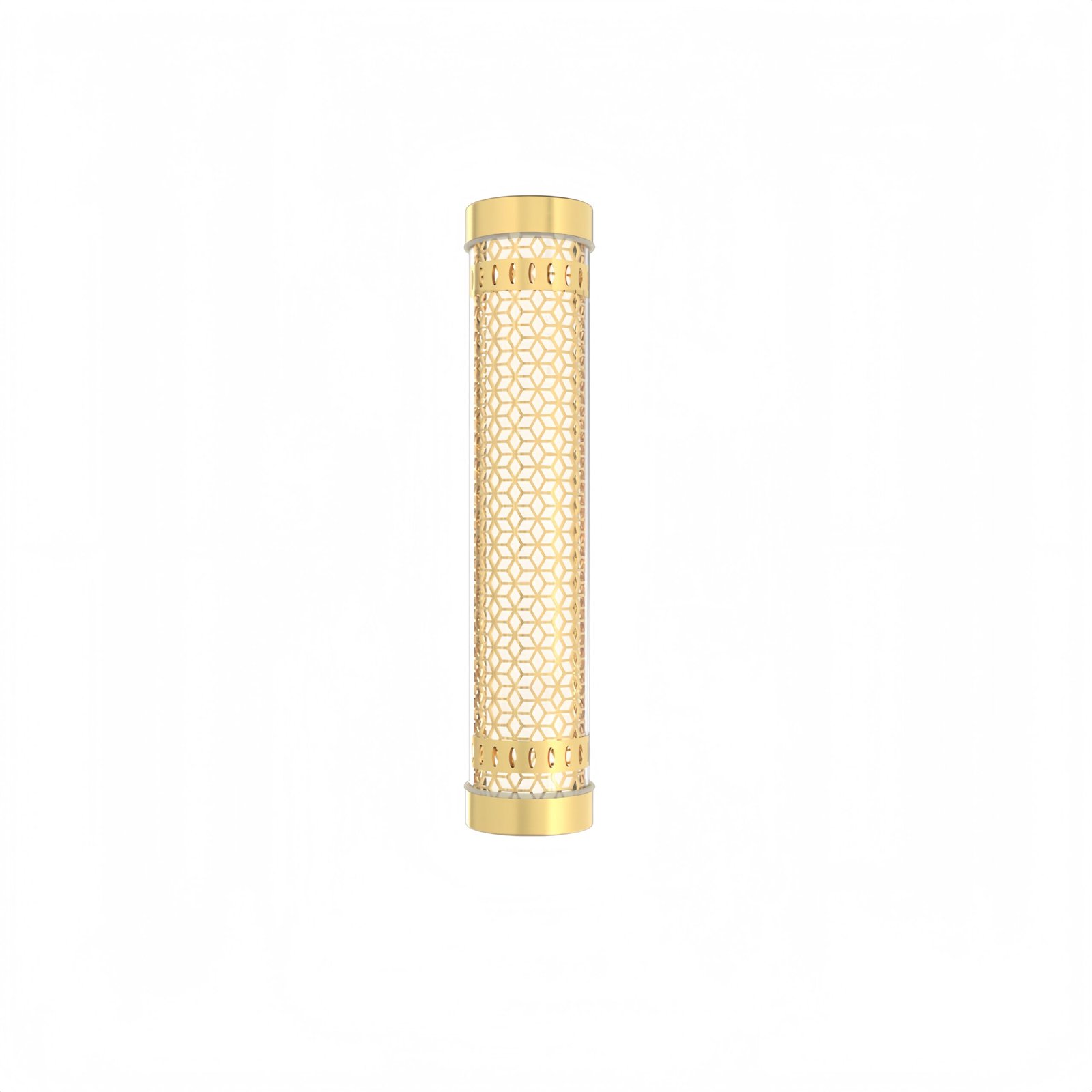

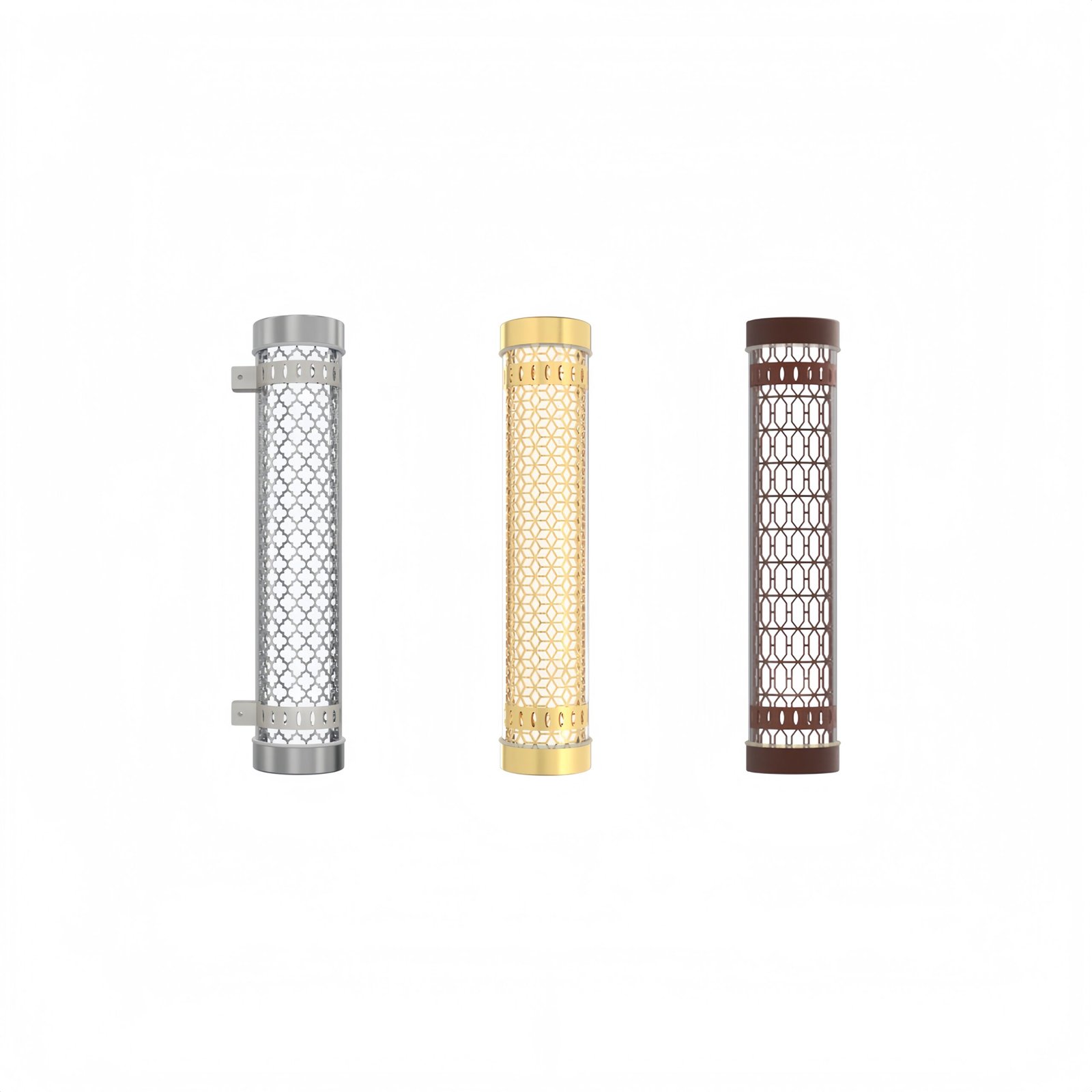

Premium finishes & grille customization

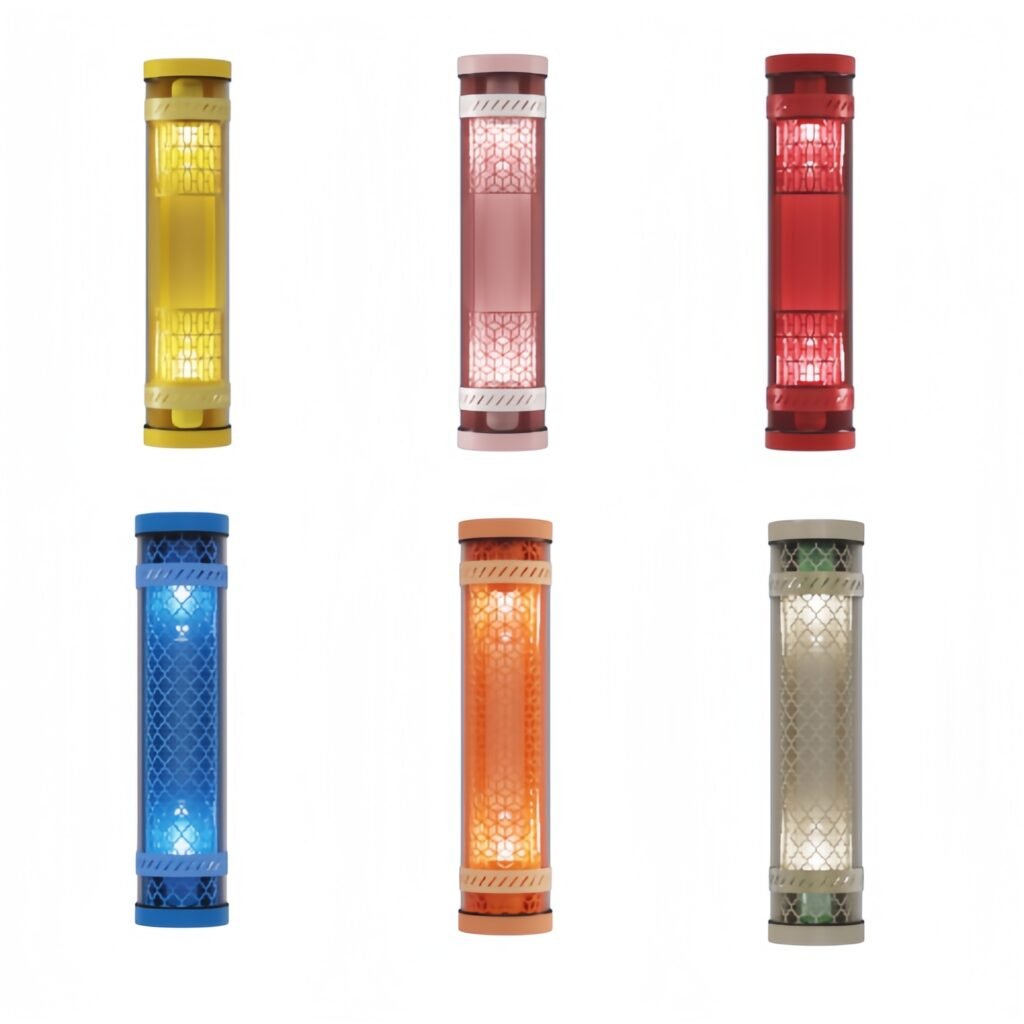

Silver, brass, bronze, black, or full RAL customization.
Decorative or functional grille patterns to enhance architectural aesthetics.
Modular composition flexibility
Combine multiple units, space them rhythmically, or mix mounting orientations to create your own lighting arrangement for any size of space.

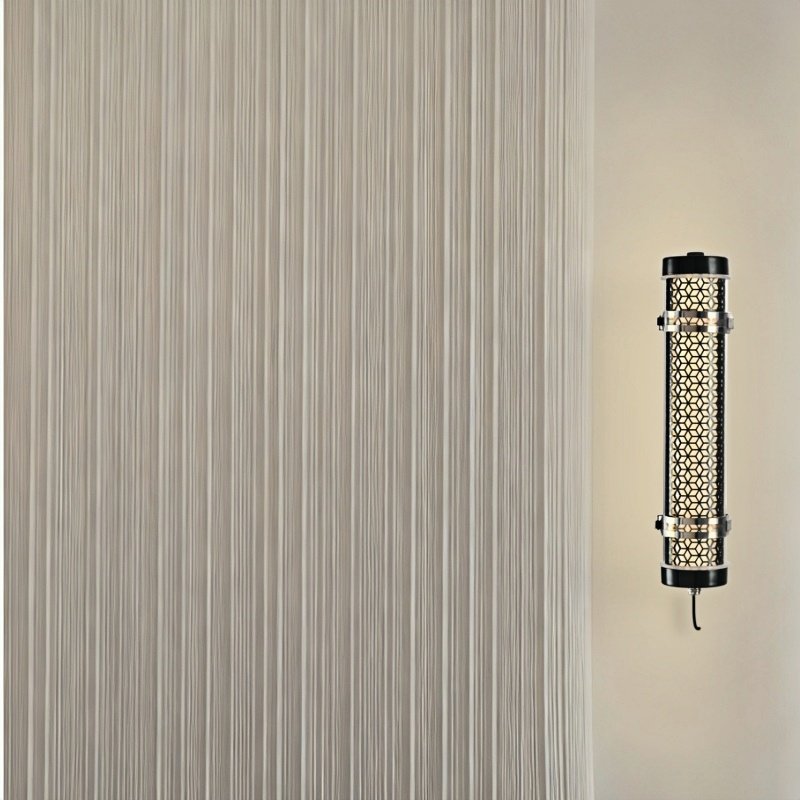

A versatile tubular luminaire for architectural spaces
Designed as a flexible lighting element rather than a fixed fixture, Vinci 360 can be installed vertically or horizontally, suspended or surface-mounted.
Configurable lengths and mounting options allow seamless integration across different project scales.

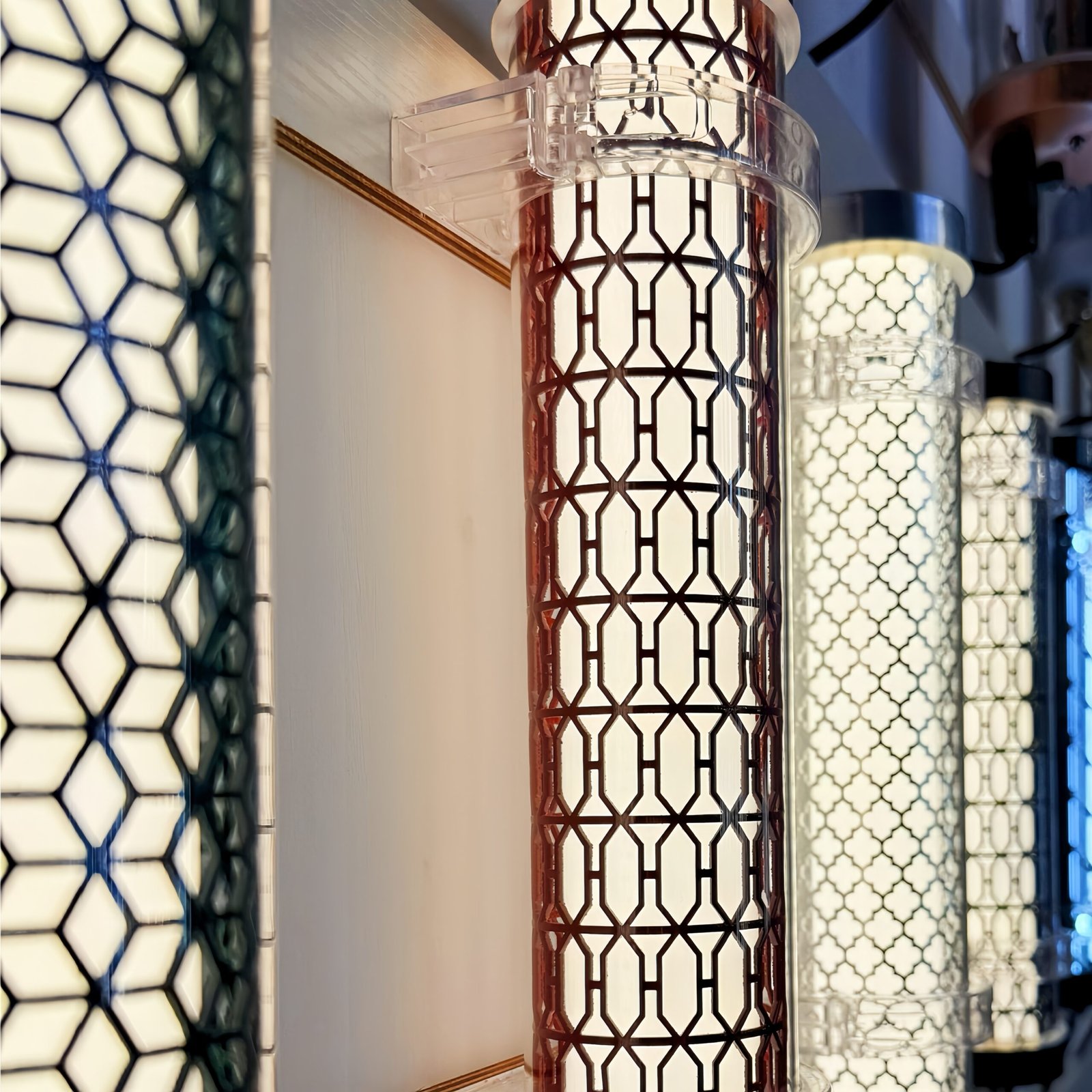

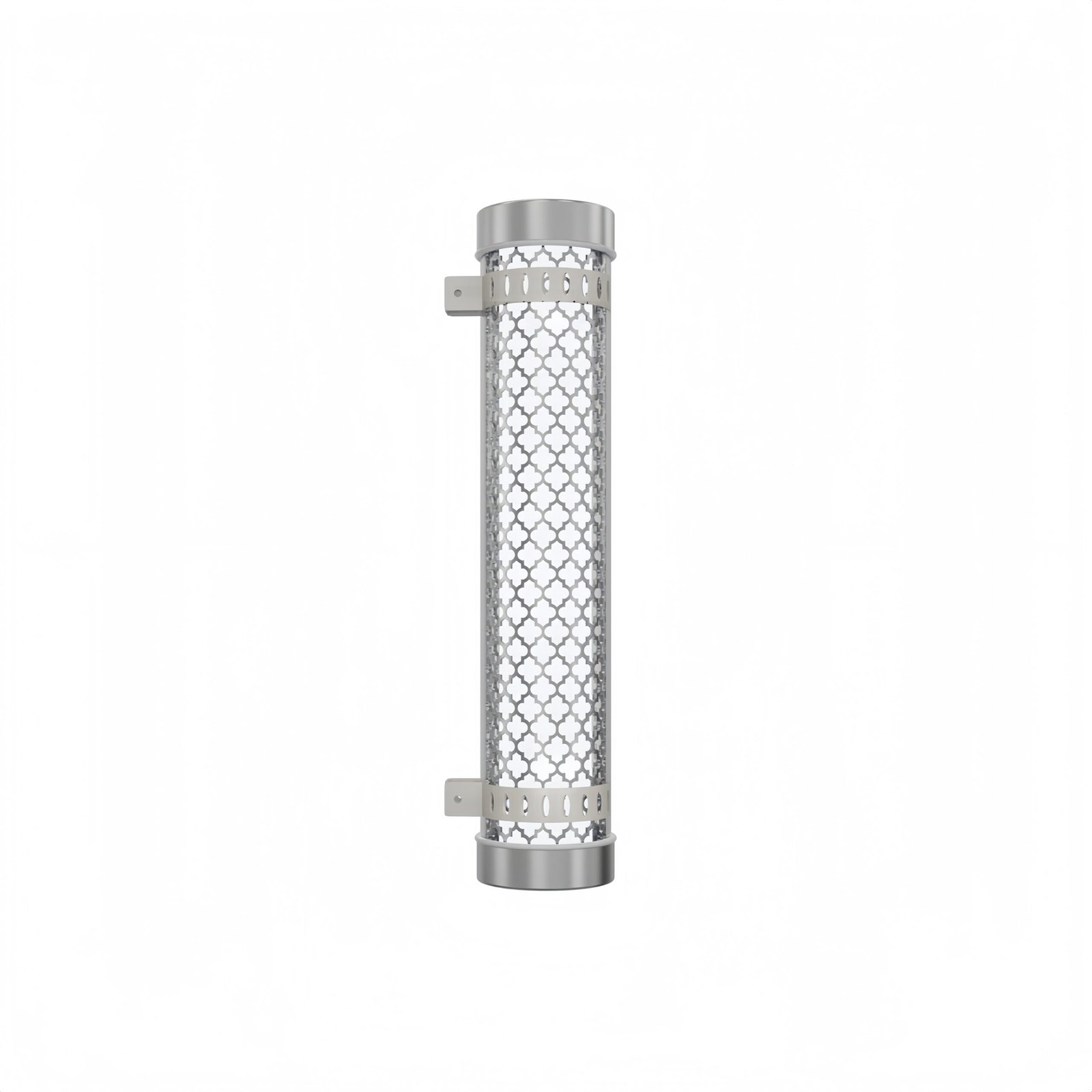

A structured grille that shapes both light and presence
The metal grille is not purely decorative. It defines the luminaire’s visual identity while subtly filtering the light and protecting the diffuser.
Different patterns and finishes allow Vinci 360 to integrate into a wide range of architectural expressions, from industrial settings to refined contemporary environments.

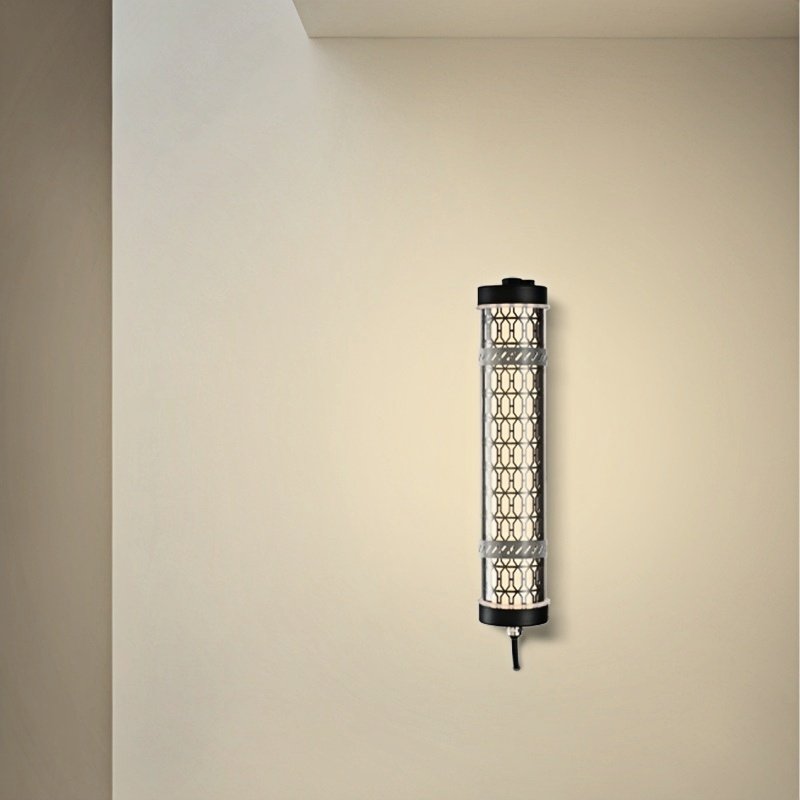

Soft, uniform illumination with visual comfort
The tubular body delivers diffuse 360° illumination, creating a balanced ambient light without harsh glare.
This approach supports visual comfort over time, making the luminaire suitable for circulation areas, shared spaces and open interiors where light must remain calm and consistent.

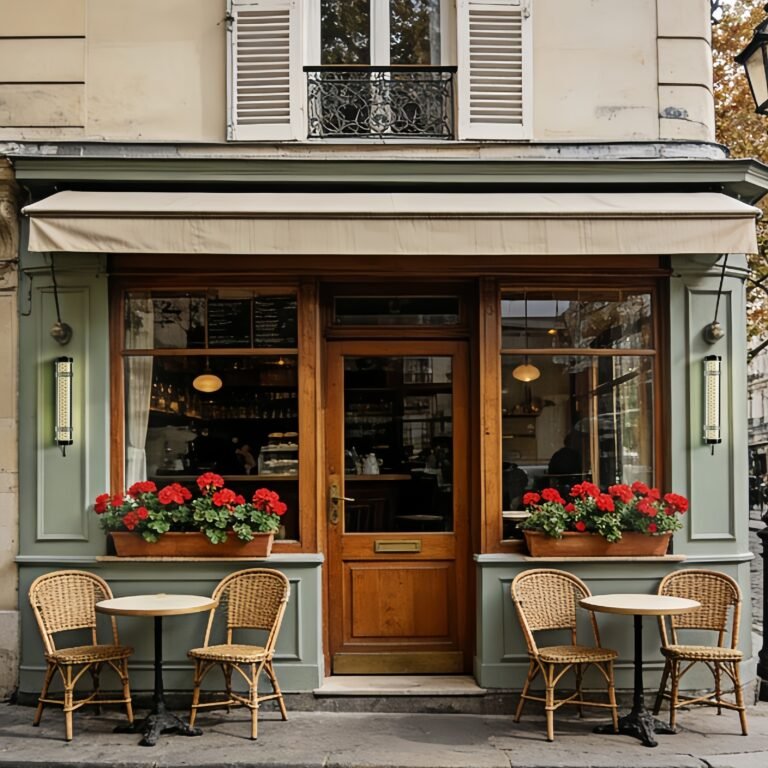

Designed for both indoor and outdoor environments
Durable materials and sealed construction support reliable performance.
Suitable for indoor, semi-outdoor and exterior architectural applications, including areas exposed to humidity, dust or temperature variations.

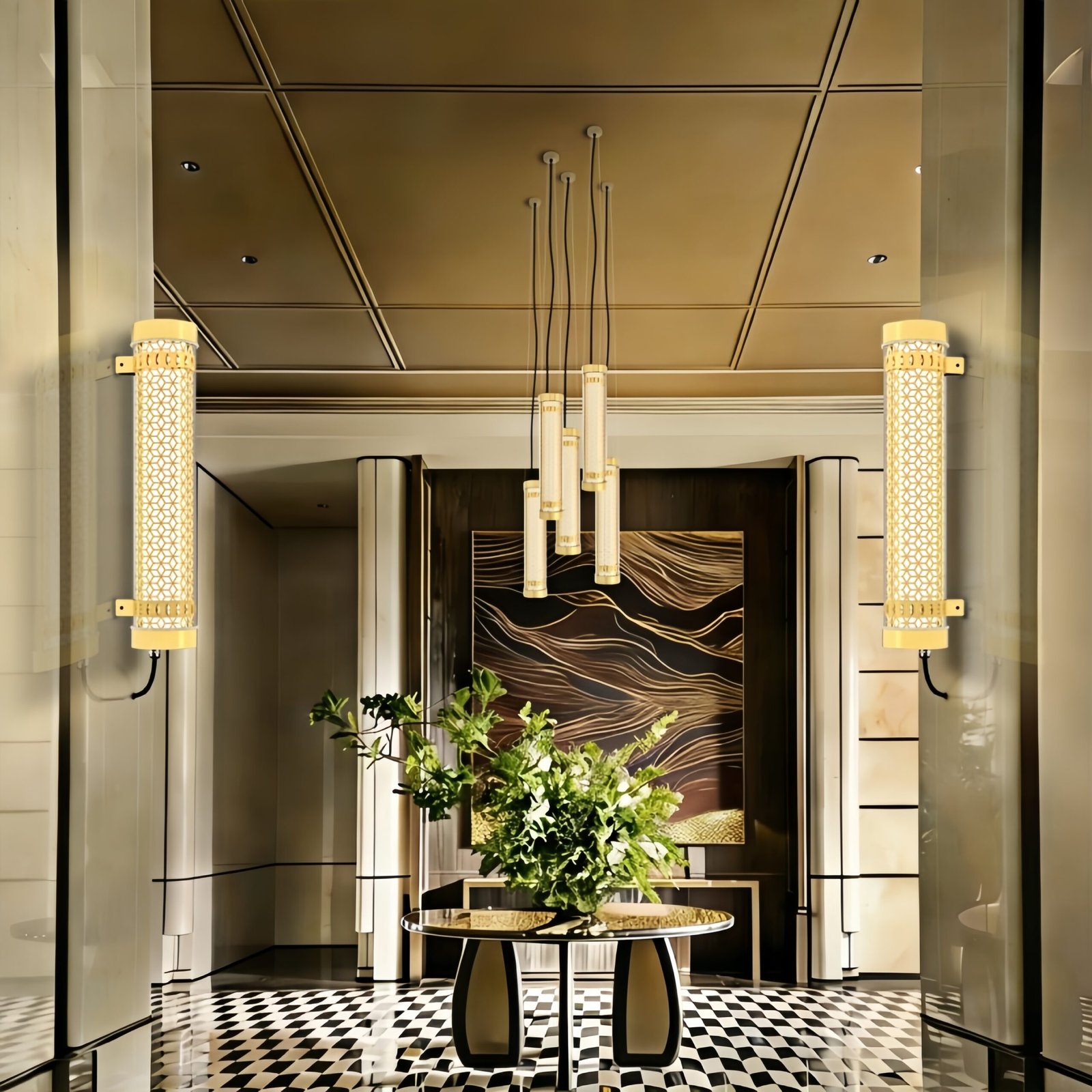

Where technical performance meets architectural expression
More than a source of light, Vinci 360 acts as a lighting element within the spatial composition.
It combines consistent performance, visual comfort and a strong architectural presence, making it suitable for projects where lighting contributes to the overall design language rather than remaining in the background.
TECHNICAL SPECIFICATIONS
Technical characteristics
Light source
Serviceable LED module
CRI ≥80 (CRI 90 optional), 3 SDCM
50,000 h L80 / B10 (25°C)
Photobiological safety: RG0
____________________________________________________________________________
Optical system
Diffuse tubular optics
Uniform 360° light emission
Internal diffusion layer for visual consistency
____________________________________________________________________________
Electrical
Constant-current electronic driver
Input voltage: 220–240V (100–277V optional), 50/60Hz
Power factor >0.95
Power range: 10–70 W (depending on length and output)
ON/OFF · TRIAC · 0–10V · DALI (DT6, DT8 on request)
Sensor version available
Emergency version available
Class I
____________________________________________________________________________
Color temperature
2700K / 3000K / 4000K / 5000K / 6000K
Tunable White available on request
____________________________________________________________________________
Dimensions
Tube diameter: Ø70 mm / Ø100 mm
Length configurable per project
____________________________________________________________________________
Operating temperature
–25°C to + 45°C
Installation and maintenance
Connection
Sealed cable entry with stainless steel gland
For cables Ø5–14 mm
Disconnectable terminal block
Up to 3 × 2.5 mm² conductors
____________________________________________________________________________
Mounting
2 Mounting brackets with adjustable spacing
Wall, ceiling or suspended installation
Suspension kits available
Materials
Housing
Co-extruded polycarbonate (PC) or PMMA tube
UV-stable, impact-resistant
For indoor and outdoor use
____________________________________________________________________________
Structure
Metal internal grid
Aluminum alloy end caps
Stainless steel fixing components
____________________________________________________________________________
Customization
Lengths from project-specific ranges
Surface finishes and grille patterns on request
Control systems and mounting options configurable
Standards & protection
Ingress protection
IP67 standard
IP69K optional
____________________________________________________________________________
Impact resistance
IK10 (PC)
IK08 (PMMA)
____________________________________________________________________________
Fire performance
Glow-wire test: 960°C
____________________________________________________________________________
Applications
Architectural indoor and outdoor environments
ARCHITECTURAL APPLICATIONS
SUSTAINABILITY STATEMENT
Designed with longevity and responsibility in mind.
With modular components, durable materials, and fully serviceable internal architecture, Vinci 360 minimizes waste and maximizes lifecycle value. By enabling future upgrades and maintenance, it aligns with long-term sustainability objectives for contemporary buildings.
